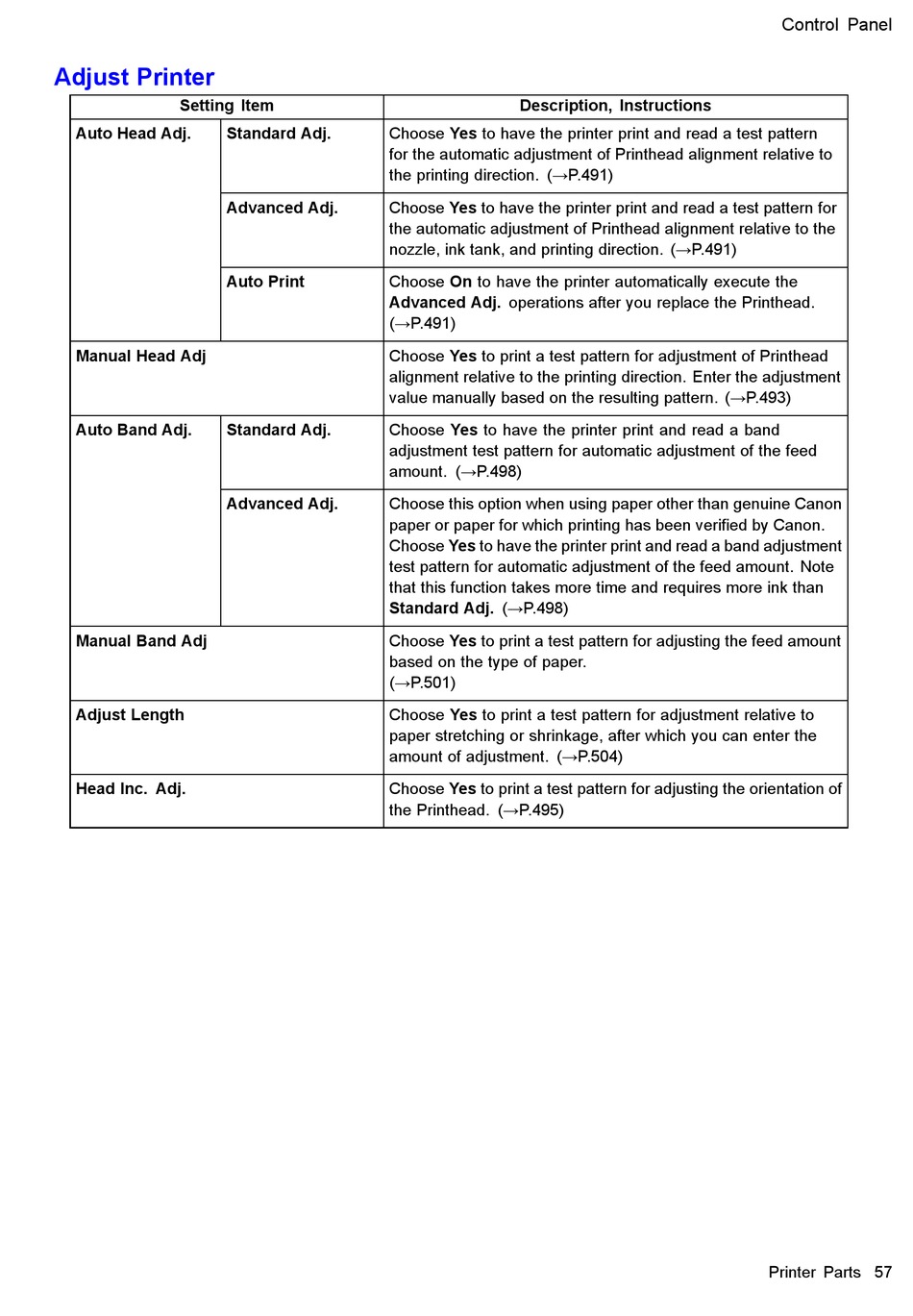

Adjust Printer

Setting Item
Auto Head Adj.
Manual Head Adj
Auto Band Adj.
Manual Band Adj
Adjust Length
Head Inc. Adj.
Standard Adj. Choose Yes to have the printer print and read a test pattern
for the automatic adjustment of Printhead alignment relative to
the printing direction. (→P.491)
Advanced Adj. Choose Yes to have the printer print and read a test pattern for
the automatic adjustment of Printhead alignment relative to the
nozzle, ink tank, and printing direction. (→P.491)
Auto Print Choose On to have the printer automatically execute the
Advanced Adj. operations after you replace the Printhead.
(→P.491)
Choose Yes to print a test pattern for adjustment of Printhead
alignment relative to the printing direction. Enter the adjustment
value manually based on the resulting pattern. (→P.493)
Standard Adj. Choose Yes to have the printer print and read a band
adjustment test pattern for automatic adjustment of the feed
amount. (→P.498)
Advanced Adj. Choose this option when using paper other than genuine Canon
paper or paper for which printing has been veried by Canon.
Choose Yes to have the printer print and read a band adjustment
test pattern for automatic adjustment of the feed amount. Note
that this function takes more time and requires more ink than
Standard Adj. (→P.498)
Choose Yes to print a test pattern for adjusting the feed amount
based on the type of paper.
(→P.501)
Choose Yes to print a test pattern for adjustment relative to
paper stretching or shrinkage, after which you can enter the
amount of adjustment. (→P.504)
Choose Yes to print a test pattern for adjusting the orientation of
the Printhead. (→P.495)
Description, Instructions
Control Panel
Printer Parts 57
