Cutter Unit

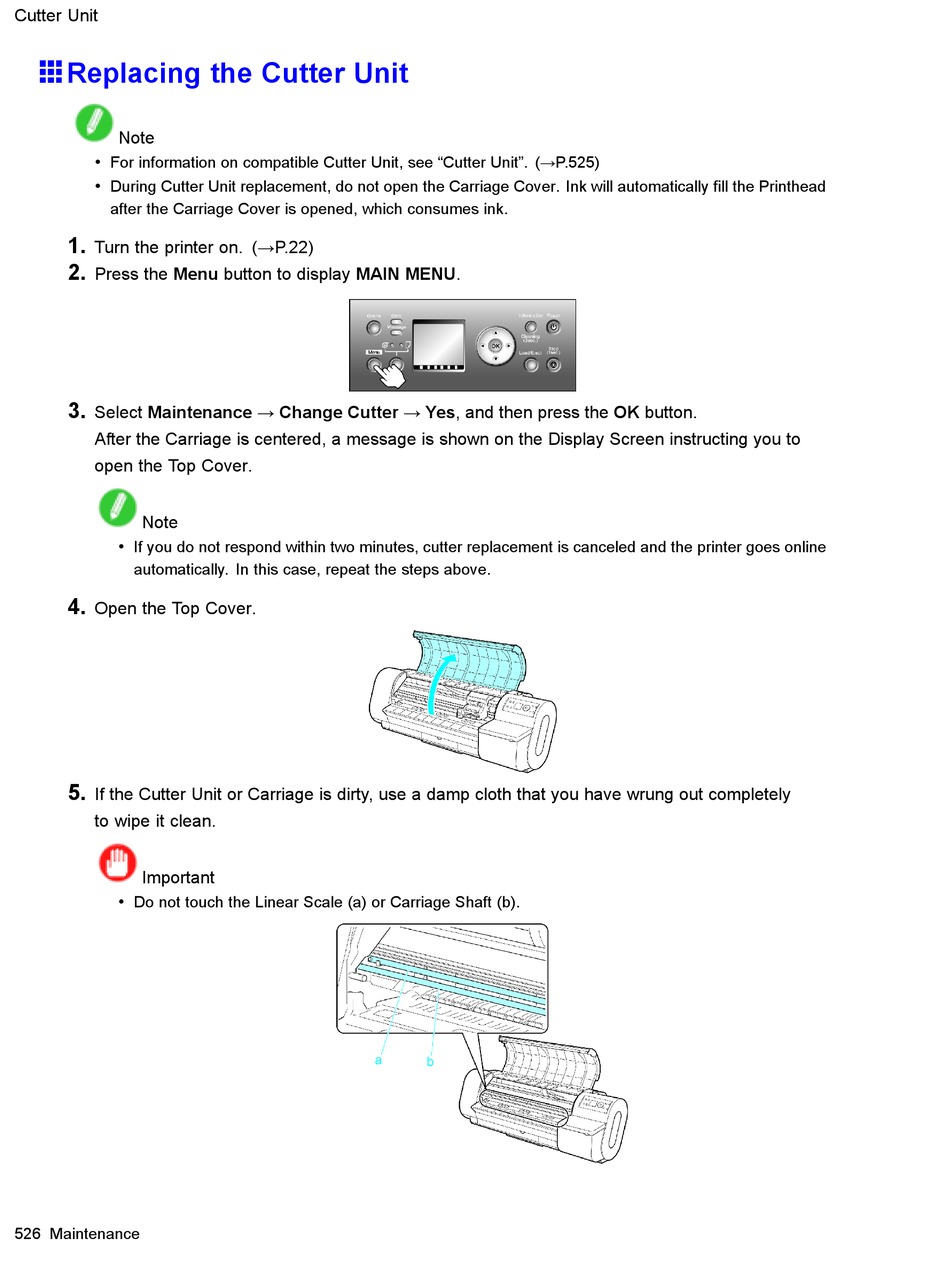

Replacing the Cutter Unit

Note
•
For information on compatible Cutter Unit, see "Cutter Unit". (→P.525)
•
During Cutter Unit replacement, do not open the Carriage Cover. Ink will automatically ll the Printhead
after the Carriage Cover is opened, which consumes ink.
1.
Turn the printer on. (→P.22)
2.
Press the Menu button to display MAIN MENU.
3.
Select Maintenance → Change Cutter → Yes, and then press the OK button.
After the Carriage is centered, a message is shown on the Display Screen instructing you to
open the Top Cover.
Note
•
If you do not respond within two minutes, cutter replacement is canceled and the printer goes online
automatically. In this case, repeat the steps above.
4.
Open the Top Cover.
5.
If the Cutter Unit or Carriage is dirty, use a damp cloth that you have wrung out completely
to wipe it clean.
Important
•
Do not touch the Linear Scale (a) or Carriage Shaft (b).
526 Maintenance
