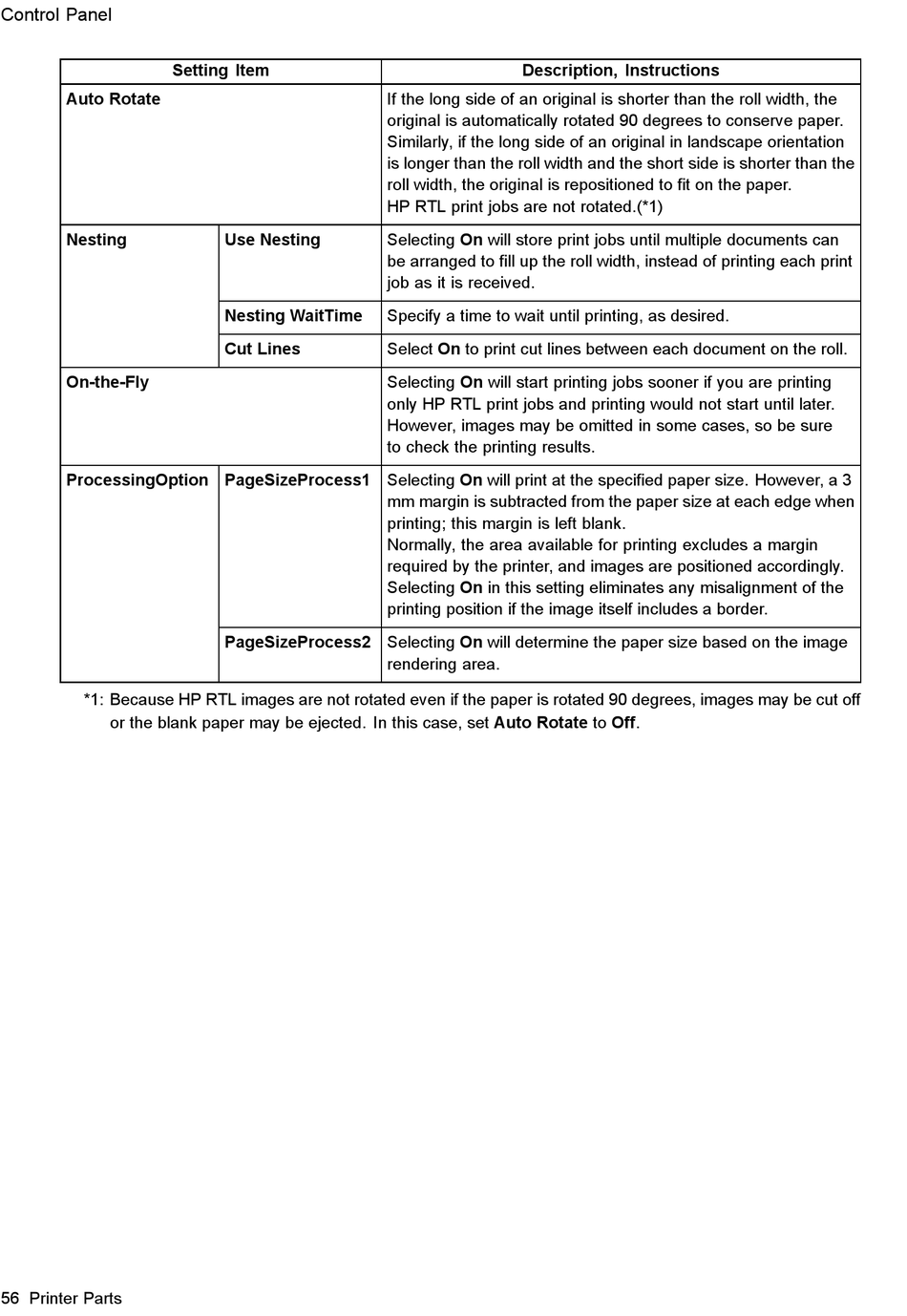

Canon imagePROGRAF iPF720 User Manual page 70

Control Panel
Auto Rotate
Nesting
On-the-Fly
ProcessingOption
*1: Because HP RTL images are not rotated even if the paper is rotated 90 degrees, images may be cut off
or the blank paper may be ejected. In this case, set Auto Rotate to Off.
56 Printer Parts
Setting Item
Use Nesting
Nesting WaitTime
Cut Lines
PageSizeProcess1 Selecting On will print at the specied paper size. However, a 3
PageSizeProcess2 Selecting On will determine the paper size based on the image
Description, Instructions
If the long side of an original is shorter than the roll width, the
original is automatically rotated 90 degrees to conserve paper.
Similarly, if the long side of an original in landscape orientation
is longer than the roll width and the short side is shorter than the
roll width, the original is repositioned to t on the paper.
HP RTL print jobs are not rotated.(*1)
Selecting On will store print jobs until multiple documents can
be arranged to ll up the roll width, instead of printing each print
job as it is received.
Specify a time to wait until printing, as desired.
Select On to print cut lines between each document on the roll.
Selecting On will start printing jobs sooner if you are printing
only HP RTL print jobs and printing would not start until later.
However, images may be omitted in some cases, so be sure
to check the printing results.
mm margin is subtracted from the paper size at each edge when
printing; this margin is left blank.
Normally, the area available for printing excludes a margin
required by the printer, and images are positioned accordingly.
Selecting On in this setting eliminates any misalignment of the
printing position if the image itself includes a border.
rendering area.
