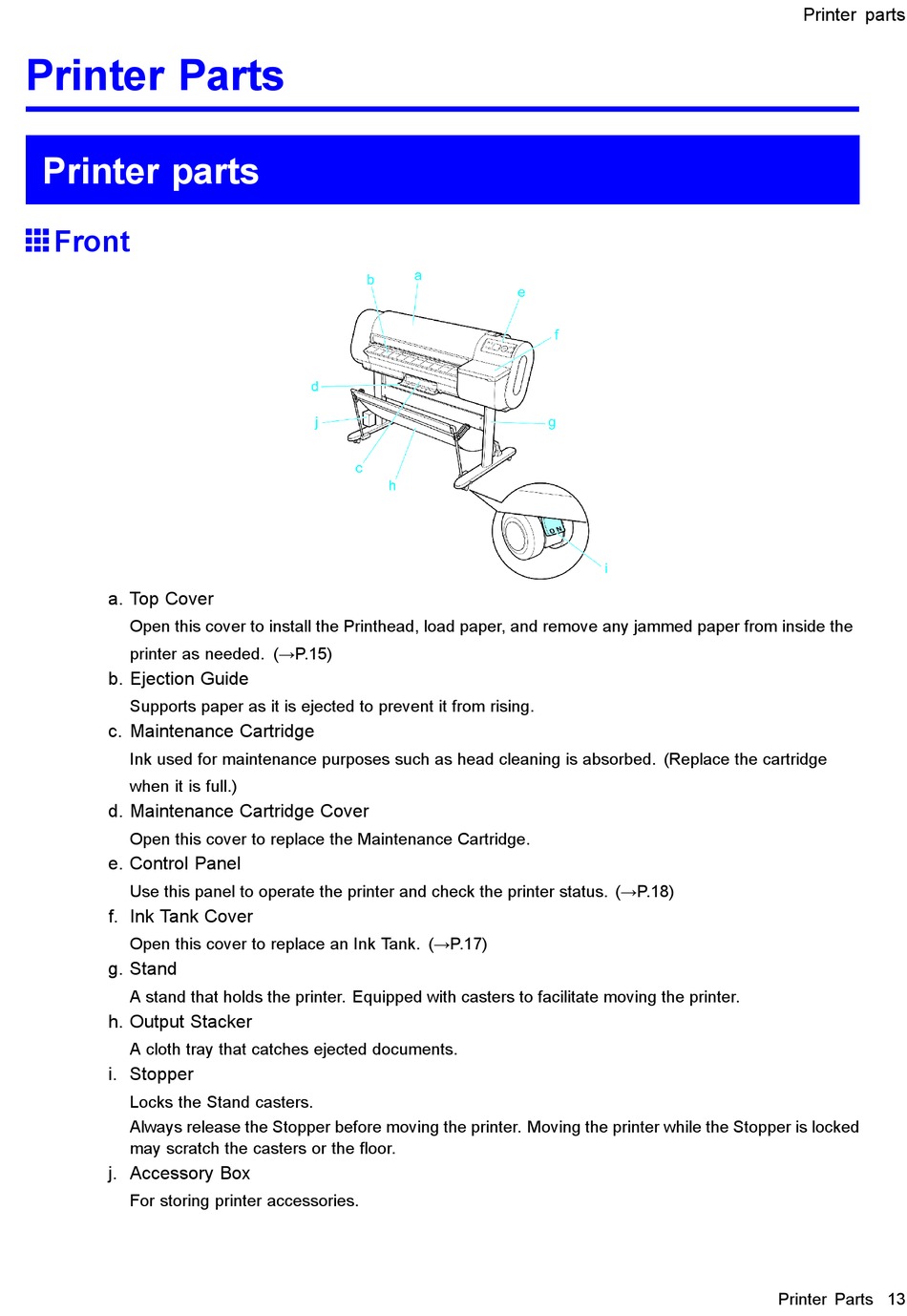

Printer Parts

Printer parts

Front

a. Top Cover
Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the
printer as needed. (→P.15)
b. Ejection Guide
Supports paper as it is ejected to prevent it from rising.
c. Maintenance Cartridge
Ink used for maintenance purposes such as head cleaning is absorbed. (Replace the cartridge
when it is full.)
d. Maintenance Cartridge Cover
Open this cover to replace the Maintenance Cartridge.
e. Control Panel
Use this panel to operate the printer and check the printer status. (→P.18)
f. Ink Tank Cover
Open this cover to replace an Ink Tank. (→P.17)
g. Stand
A stand that holds the printer. Equipped with casters to facilitate moving the printer.
h. Output Stacker
A cloth tray that catches ejected documents.
i. Stopper
Locks the Stand casters.
Always release the Stopper before moving the printer. Moving the printer while the Stopper is locked
may scratch the casters or the oor.
j. Accessory Box
For storing printer accessories.
