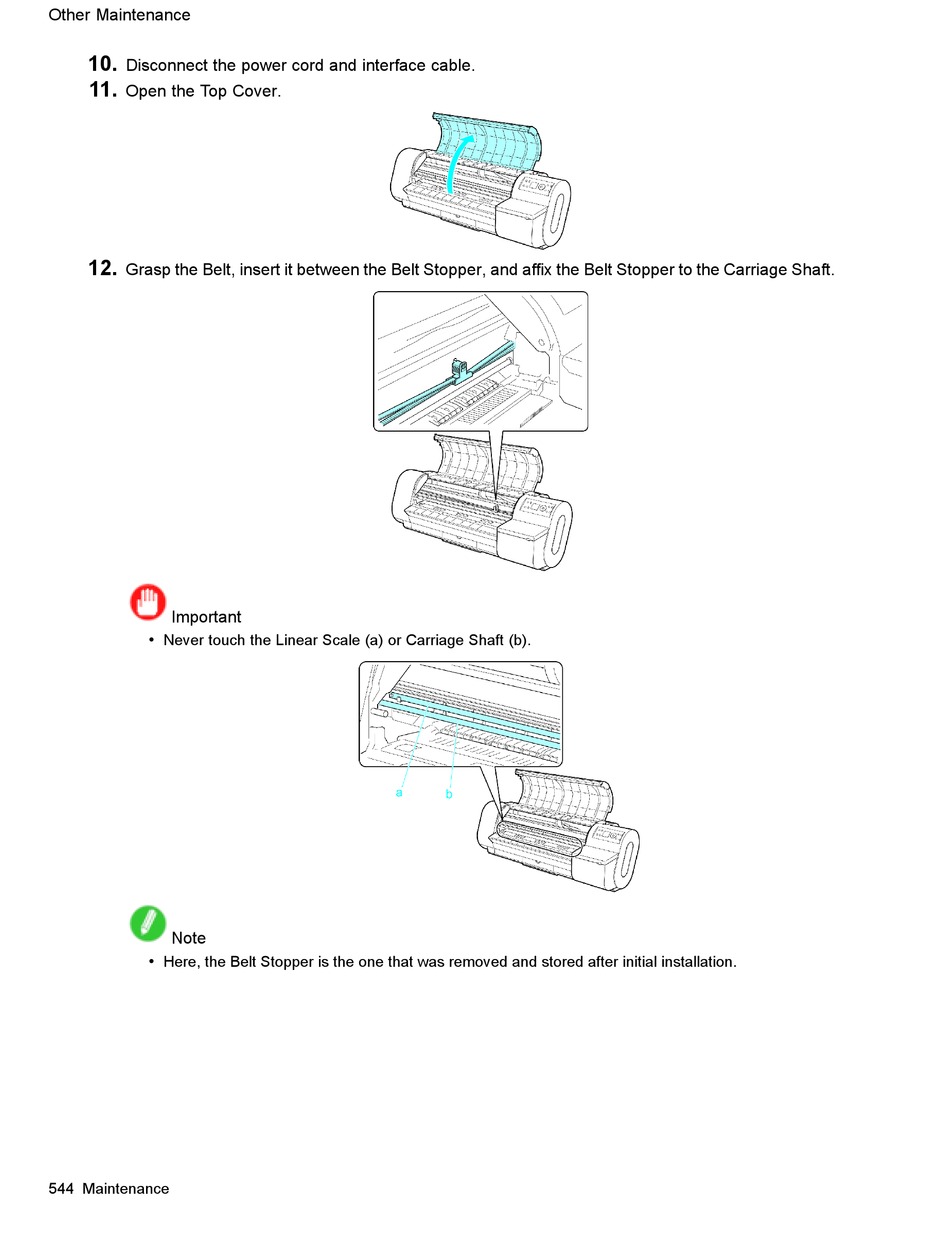

Other Maintenance
10.
Disconnect the power cord and interface cable.
11.
Open the Top Cover.
12.
Grasp the Belt, insert it between the Belt Stopper, and afx the Belt Stopper to the Carriage Shaft.
Important
•
Never touch the Linear Scale (a) or Carriage Shaft (b).
Note
•
Here, the Belt Stopper is the one that was removed and stored after initial installation.
544 Maintenance
