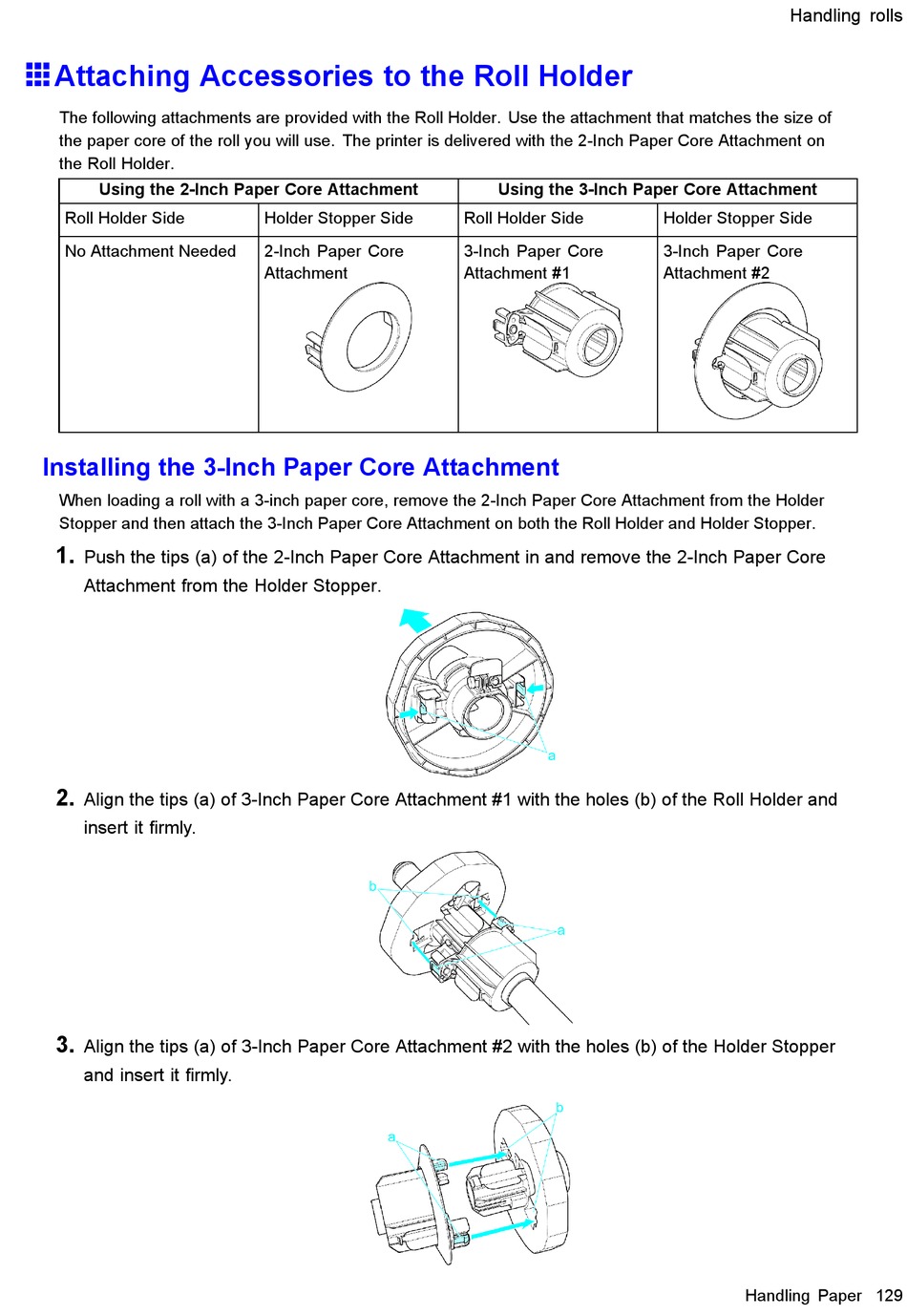

Attaching Accessories to the Roll Holder

The following attachments are provided with the Roll Holder. Use the attachment that matches the size of
the paper core of the roll you will use. The printer is delivered with the 2-Inch Paper Core Attachment on
the Roll Holder.
Using the 2-Inch Paper Core Attachment
Roll Holder Side
No Attachment Needed

Installing the 3-Inch Paper Core Attachment

When loading a roll with a 3-inch paper core, remove the 2-Inch Paper Core Attachment from the Holder
Stopper and then attach the 3-Inch Paper Core Attachment on both the Roll Holder and Holder Stopper.
1.
Push the tips (a) of the 2-Inch Paper Core Attachment in and remove the 2-Inch Paper Core
Attachment from the Holder Stopper.
2.
Align the tips (a) of 3-Inch Paper Core Attachment #1 with the holes (b) of the Roll Holder and
insert it rmly.
3.
Align the tips (a) of 3-Inch Paper Core Attachment #2 with the holes (b) of the Holder Stopper
and insert it rmly.
Holder Stopper Side
2-Inch Paper Core
Attachment
Using the 3-Inch Paper Core Attachment
Roll Holder Side
3-Inch Paper Core
Attachment #1
Handling rolls
Holder Stopper Side
3-Inch Paper Core
Attachment #2
