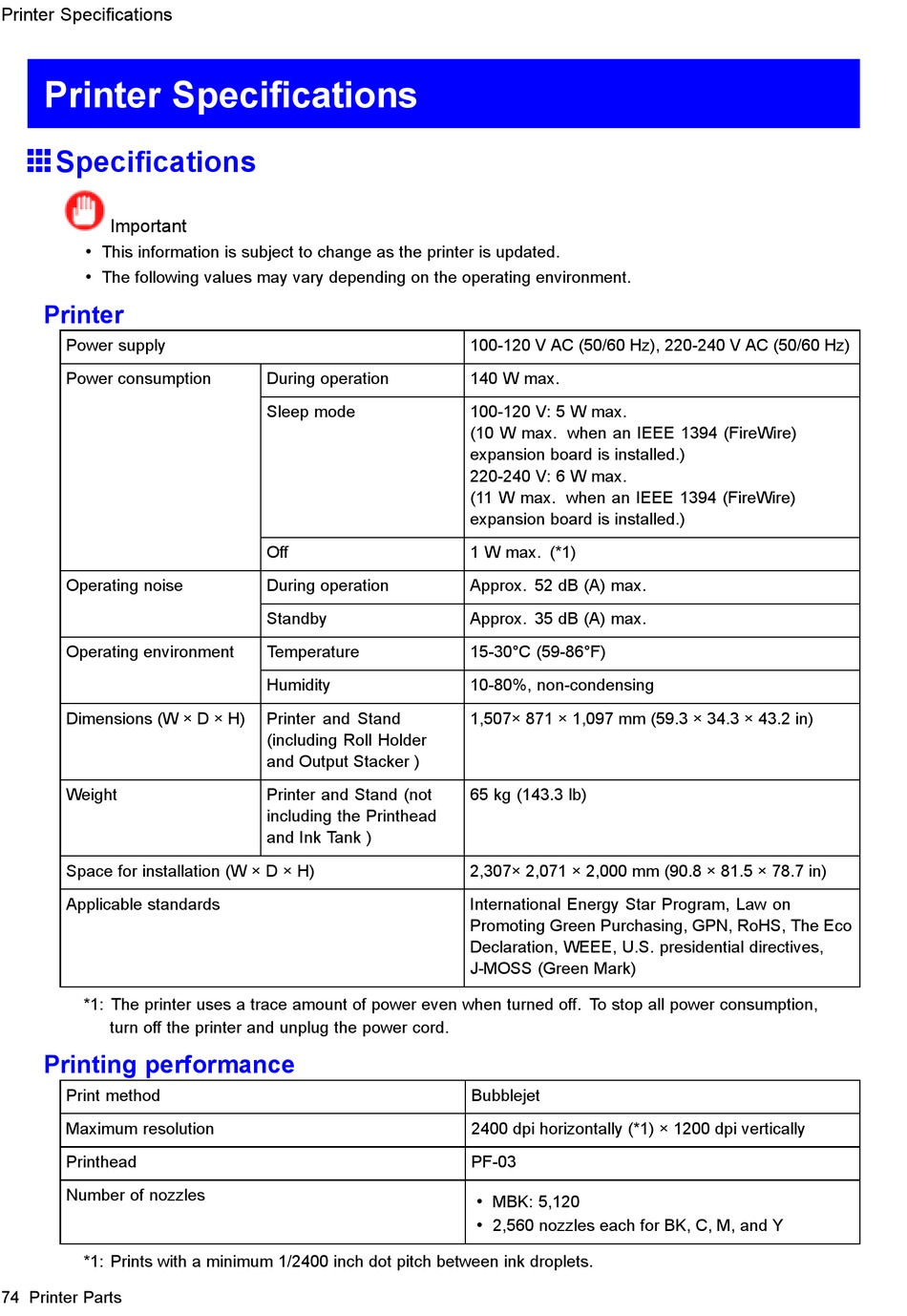

Printer Specications
Printer Specications
Specications
Important
•
This information is subject to change as the printer is updated.
•
The following values may vary depending on the operating environment.
Printer
Power supply
Power consumption
Operating noise
Operating environment
Dimensions (W × D × H)
Weight
Space for installation (W × D × H)
Applicable standards
*1: The printer uses a trace amount of power even when turned off. To stop all power consumption,
turn off the printer and unplug the power cord.
Printing performance
Print method
Maximum resolution
Printhead
Number of nozzles
*1: Prints with a minimum 1/2400 inch dot pitch between ink droplets.
74 Printer Parts
During operation
Sleep mode
Off
During operation
Standby
Temperature
Humidity
Printer and Stand
(including Roll Holder
and Output Stacker )
Printer and Stand (not
including the Printhead
and Ink Tank )
100-120 V AC (50/60 Hz), 220-240 V AC (50/60 Hz)
140 W max.
100-120 V: 5 W max.
(10 W max. when an IEEE 1394 (FireWire)
expansion board is installed.)
220-240 V: 6 W max.
(11 W max. when an IEEE 1394 (FireWire)
expansion board is installed.)
1 W max. (*1)
Approx. 52 dB (A) max.
Approx. 35 dB (A) max.
15-30°C (59-86°F)
10-80%, non-condensing
1,507× 871 × 1,097 mm (59.3 × 34.3 × 43.2 in)
65 kg (143.3 lb)
2,307× 2,071 × 2,000 mm (90.8 × 81.5 × 78.7 in)
International Energy Star Program, Law on
Promoting Green Purchasing, GPN, RoHS, The Eco
Declaration, WEEE, U.S. presidential directives,
J-MOSS (Green Mark)
Bubblejet
2400 dpi horizontally (*1) × 1200 dpi vertically
PF-03
•
MBK: 5,120
•
2,560 nozzles each for BK, C, M, and Y
