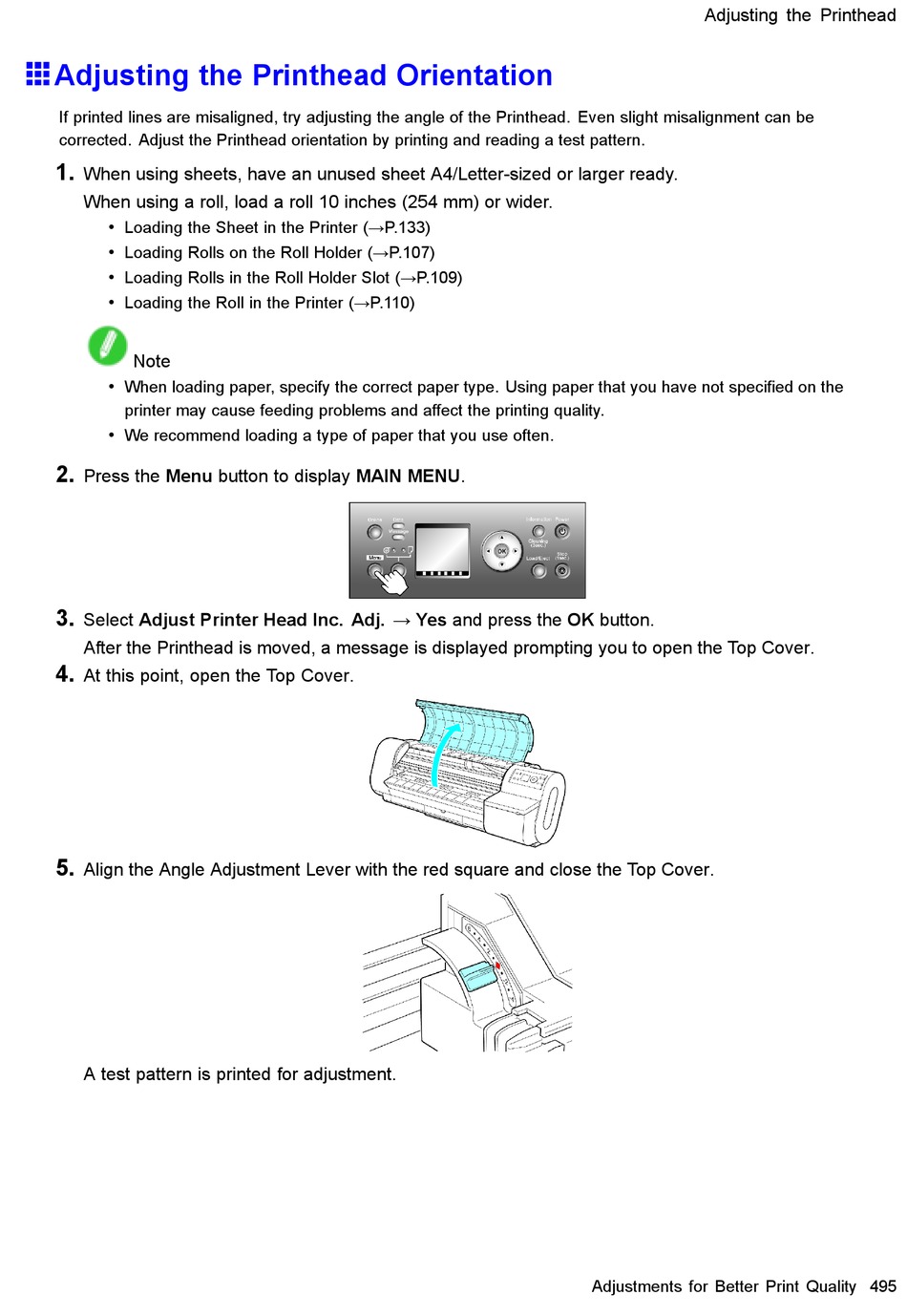

Adjusting the Printhead Orientation

If printed lines are misaligned, try adjusting the angle of the Printhead. Even slight misalignment can be
corrected. Adjust the Printhead orientation by printing and reading a test pattern.
1.
When using sheets, have an unused sheet A4/Letter-sized or larger ready.
When using a roll, load a roll 10 inches (254 mm) or wider.
•
Loading the Sheet in the Printer (→P.133)
•
Loading Rolls on the Roll Holder (→P.107)
•
Loading Rolls in the Roll Holder Slot (→P.109)
•
Loading the Roll in the Printer (→P.110)
Note
•
When loading paper, specify the correct paper type. Using paper that you have not specied on the
printer may cause feeding problems and affect the printing quality.
•
We recommend loading a type of paper that you use often.
2.
Press the Menu button to display MAIN MENU.
3.
Select Adjust Printer Head Inc. Adj. → Yes and press the OK button.
After the Printhead is moved, a message is displayed prompting you to open the Top Cover.
4.
At this point, open the Top Cover.
5.
Align the Angle Adjustment Lever with the red square and close the Top Cover.
A test pattern is printed for adjustment.
Adjusting the Printhead
