Undercounter Refrigeration
Accessories
These optional accessories are available through your
authorized Sub-Zero dealer. For local dealer information,
visit the find a showroom section of our website,
subzero.com.
• Stainless steel front panel with tubular or pro handle.
• Stainless steel tubular and pro handles to match the
style of Wolf ovens and ranges.
• UL approved door lock.
STANDARD HANDLES
Refer to the chart below for standard handle lengths and
the stud spacing of tubular and pro handles used on
undercounter models.
Standard Handles
UNDERCOUNTER MODELS
Tubular Handle
Pro Handle
Length Stud Spacing
3 1
24 / " 16 / "
(614) (413)
16 4
11
21" 19 / "
(533) (500)
16

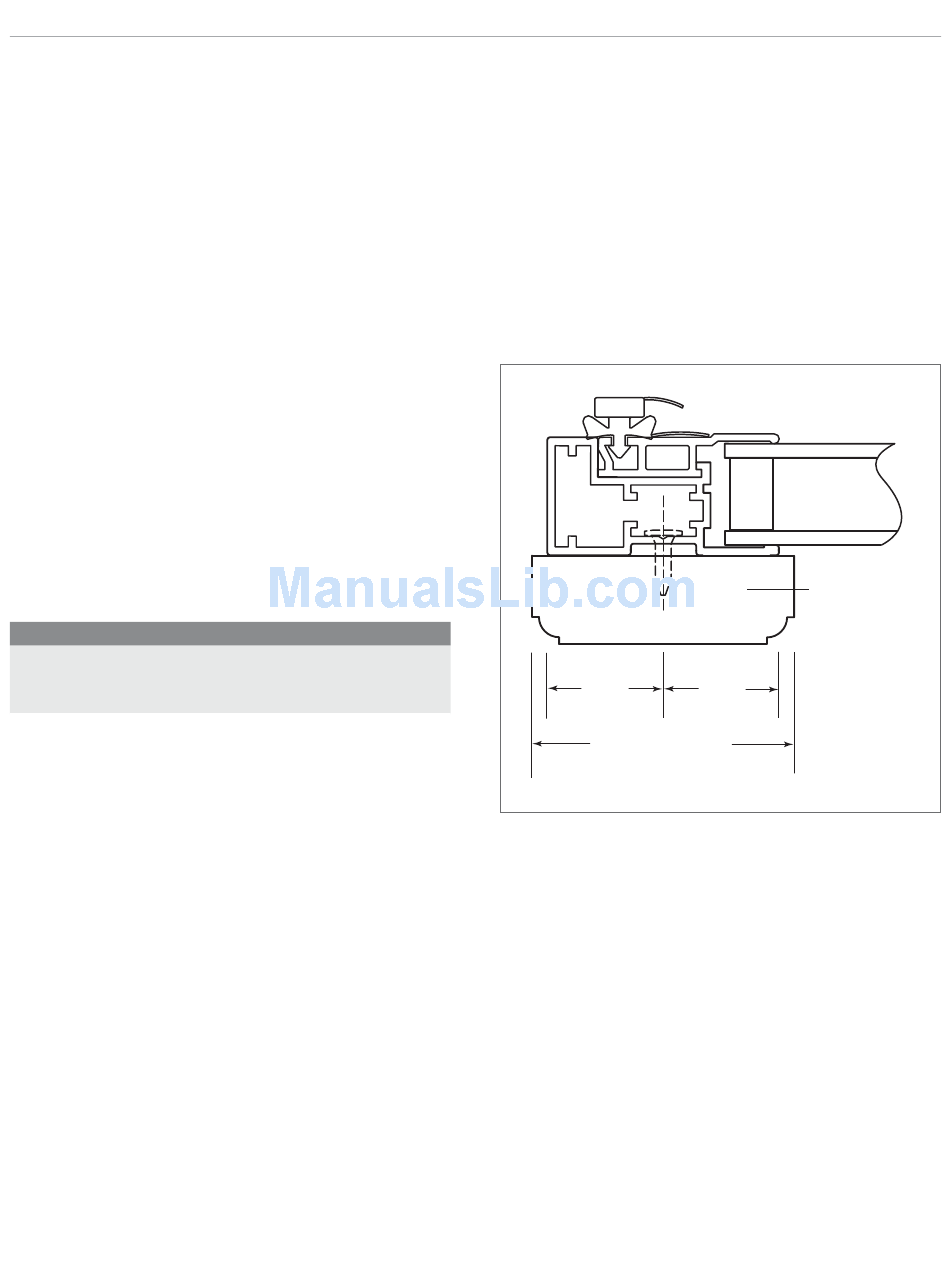

Door Frame Profile
FULL-SCALE TEMPLATE
The full-scale template shows the door frame profile for
model UC-24BG and the relationship to the overlay panel
(rails and stiles).
C L
1"
(25)
1
2 / " Rail / Stile
4 (57)
DOOR FRAME PROFILE
MODEL UC-24BG
Glass
Door Panel Profile
1"
(25)
