Wine Storage
Model WS-30
DUAL FLUSH INSET INSTALLATIONS
Installing two models WS-30 or a model WS-30 and
built-in unit side by side in a flush inset application will
require adjustments to the dimensions of your finished
rough opening, panel sizes and panel offsets. It will also
require a dual installation kit, available through your
authorized Sub-Zero dealer.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip. Illustration A is the
only application that will accommodate the dual wide
grille.
IMPORTANT NOTE: The application shown in illustration A
can only be achieved by installing dual flush inset panels.
Failure to install dual flush inset panels will cause the
handle side of the panels to collide when closing. In this
application a dual installation accessory kit is also
required.
Dual flush inset panels and dual installation kits are
available through your authorized Sub-Zero dealer. Refer
to the illustration and chart for dual flush inset panel
specifications.
FILLER STRIP REQUIRED
WITHOUT FILLER STRIP
Illus. A Illus. B
FILLER STRIP REQUIRED
Illus. C

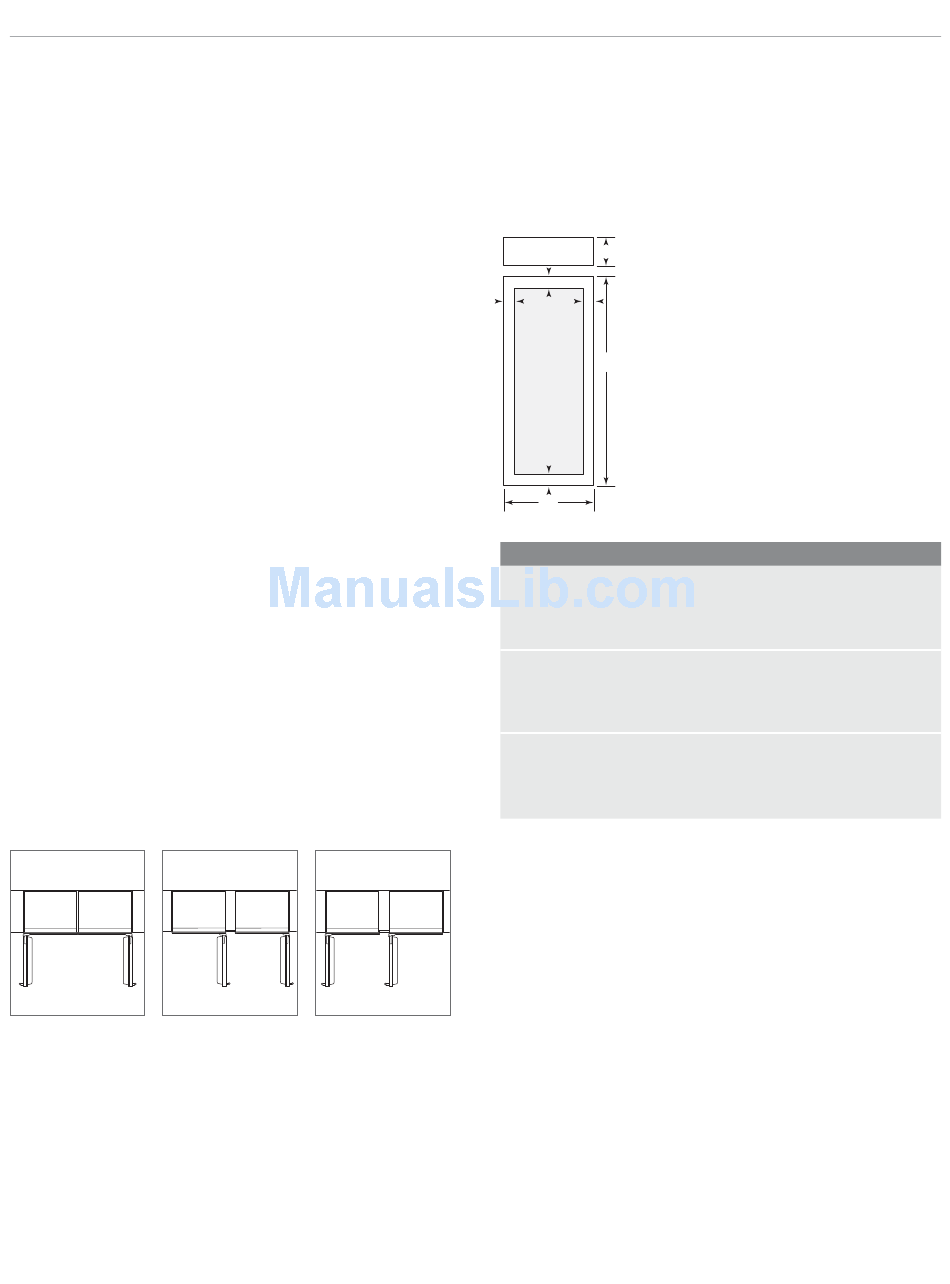

DUAL FLUSH INSET PANEL SPECIFICATIONS
H
A
A A
H
A
W
WS-30 Dual Flush Inset
DOOR
Flush Inset Panel
Spacer Panel
Backer Panel
GRILLE
Flush Inset Panel
Spacer Panel
Backer Panel
WINDOW
Cut-Out
Location
Grille panel dimensions listed are for a standard 84"
overall height of the unit. For an 83"
subtract 1" from grille panel height dimensions. For an
(25)
88" overall height, add 4"
(2235)
W
1 3
30 / " 69 / "
(775) (1772)
2 4
1 15
29 / " 68 / "
(740) (1751)
8 16
3 9
29 / " 69 / "
(756) (1767)
4 16
W
1 1
30 / " 9 / "
(775) (235)
2 4
1 5
29 / " 8 / "
(740) (211)
8 16
3 15
29 / " 8 / "
(756) (227)
4 16
W
1
23" 62 / "
(584) (1581)
4
3
3 / "
4
(2134)
overall height,
(2108)
to height dimensions.
(102)
