Built-In Refrigeration
Dual Installation
FLUSH INSET PANEL OFFSETS
When installing two built-in models side by side in a flush
inset application, you must decrease the width of the dec-
orative flush inset panels by
panel offsets will also need to be made. These adjust-
ments are needed to achieve a proper fit and to ensure the
panels do not collide when closing. Panel dimensions in
the chart below have been adjusted to reflect the
decrease in panel dimensions.
IMPORTANT NOTE: If a filler strip is not used, dual instal-
lations can only be accomplished using two units with
opposite hinges.

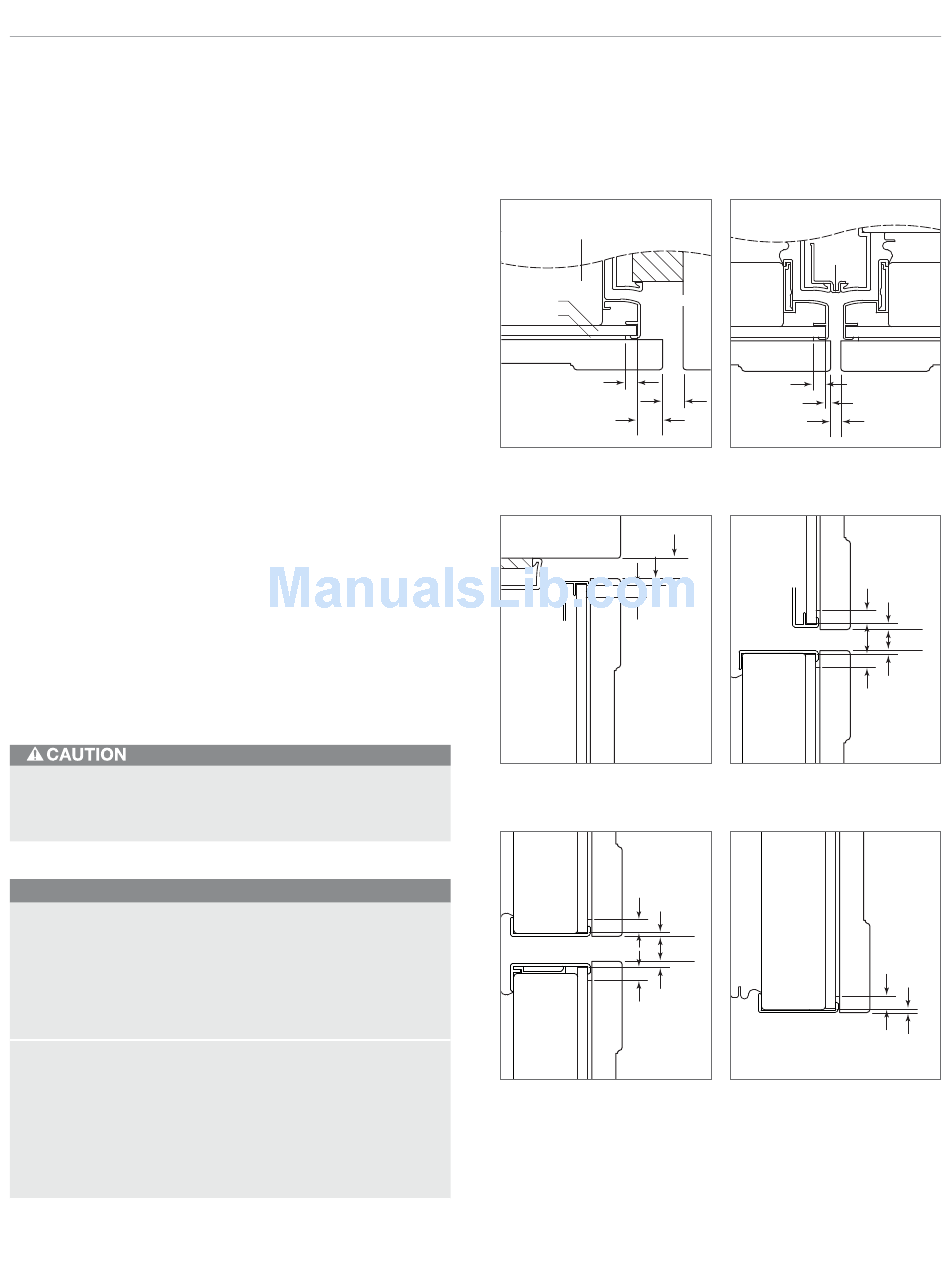

Illustrations A–F provide panel offsets and reveals for all
built-in models in a flush inset application. Refer to the
chart below for reference to the illustrations relating to
your specific model. All reveals are
wise specified.
For additional information on model-specific panel reveals,
visit the specification library section of our website,
subzerotrade.com.
Do not exceed flush inset panel dimensions, as this
could cause damage to panels and the Sub-Zero unit.
Panel Offsets
ALL REFRIGERATOR / ALL FREEZER
Doors (hinge) / Grille Sides
Doors (handle) Sides
Grille Top
Grille Bottom / Door Top
Door Bottom
OVER-AND-UNDER
Doors (hinge) / Drawer / Grille Sides
Doors (handle) Sides
Grille Top
Grille Bottom / Door Top
Door Bottom / Drawer Top
Drawer Bottom
