Wine Storage
Side Panels
MODEL WS-30
When planning for side panels with the installation of the
model WS-30, you need to be aware of the space configu-
ration to achieve a pleasing fit. Depending on the exact
panel you are using, the height of the panel may vary.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
When installing a model WS-30 with a custom side panel,
an accessory kit is required. Stainless steel side panels
are also available through your authorized Sub-Zero dealer.
The side panel will need to be a minimum of 24"
1
and / " thick. Refer to the illustrations below for side
(13)
2
panel dimensions. Routing will be necessary so that the
side panel fits flush against the side of the unit.
24"
(610)
FRONT
OF SIDE
PANEL
ROUT TO 1
/ "
8 (3)
7
1 / "
8 (48)
1"
(25)
(2134)
4"
(102)
OPTIONAL
5
2 /
TOE KICK
(67)
CUT-OUT

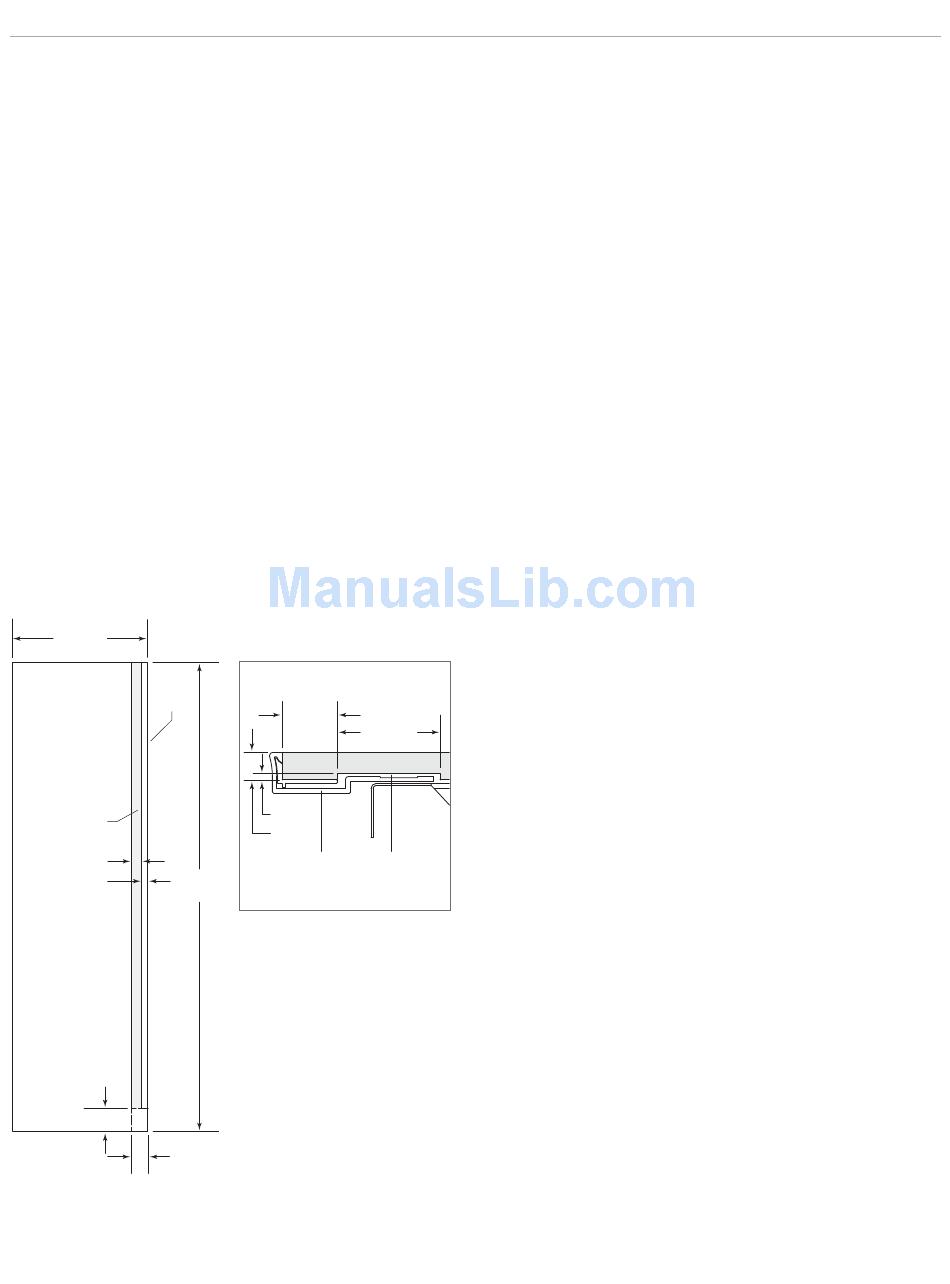

Side panel dimensions.
1"
(25)
1
1
/ "
8 (3)
1
/ "
2 (13)
MAIN SIDE PANEL
FRAME ROUTING
84"
Routing detail.
"
8
Handle Hardware
For overlay and integrated models, handle hardware must
be provided. Optional stainless steel tubular and pro
handles are available through your authorized Sub-Zero
dealer.
The door frame has numerous mounting holes on each
side to accommodate handle hardware. Using the pre-
drilled holes to attach the handle will provide the best
alignment and strength.
IMPORTANT NOTE: Refer to the full-scale template at the
end of this section for a profile of the door frame and
position of the glass. Do not drill through the glass.
deep
(610)
7
/ "
8 (48)
