Built-In Refrigeration
APPROX PROFILE OF
STAINLESS STEEL WRAPPED
DOOR AND HANDLE

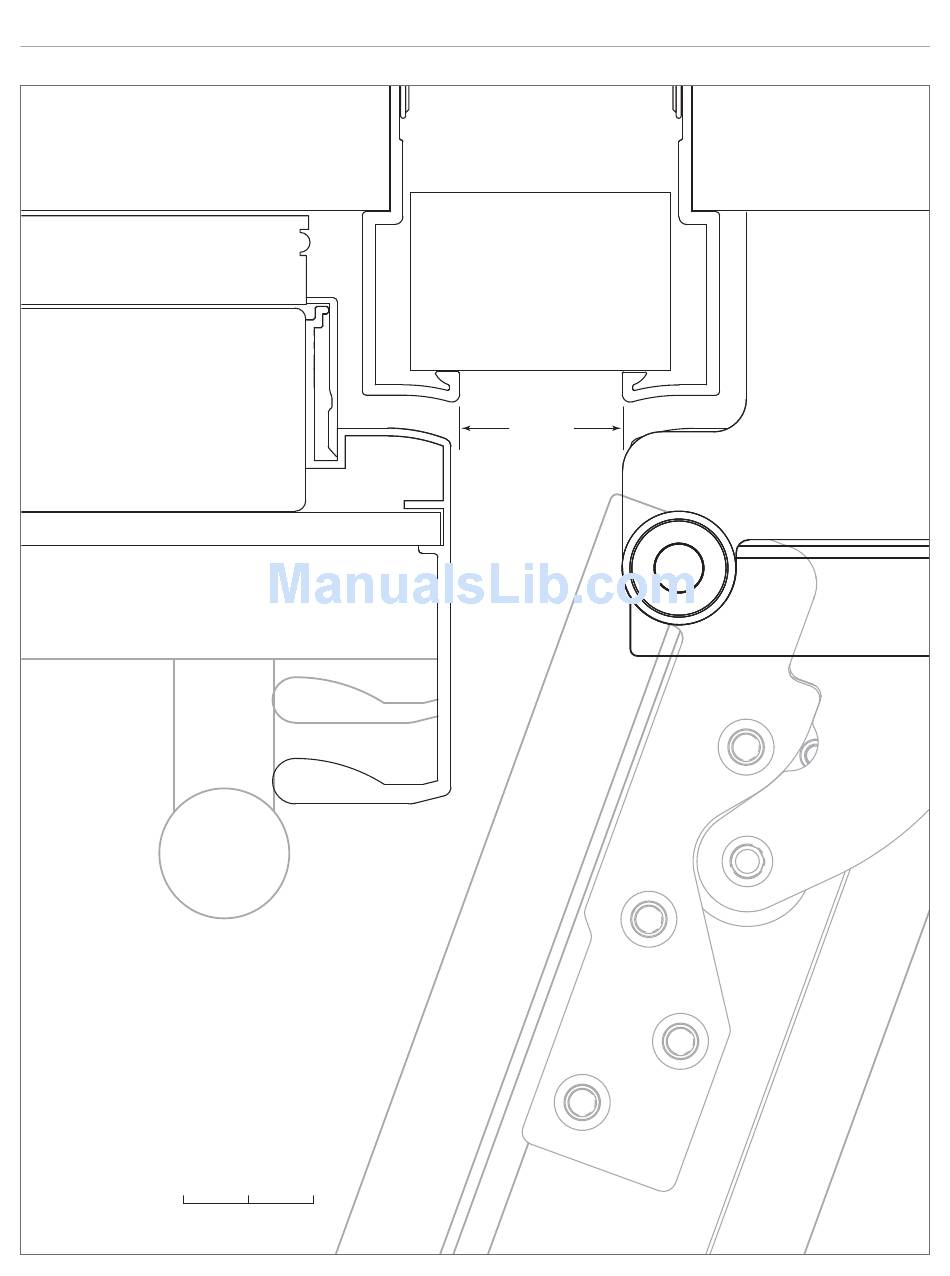

Dual Installation—Standard
FULL-SCALE TEMPLATE
Typical framed, overlay or stainless steel
dual installation with filler strip at
maximum 110° door opening. Depending
on panel thickness, a 90° door stop may
be required.
0"
STANDARD
TOP VIEW
1"
(25)
SCALE
FILLER STRIP
1
1
/
"
(32)
4
42
DOOR
CLOSED
DOOR
OPEN 110°
