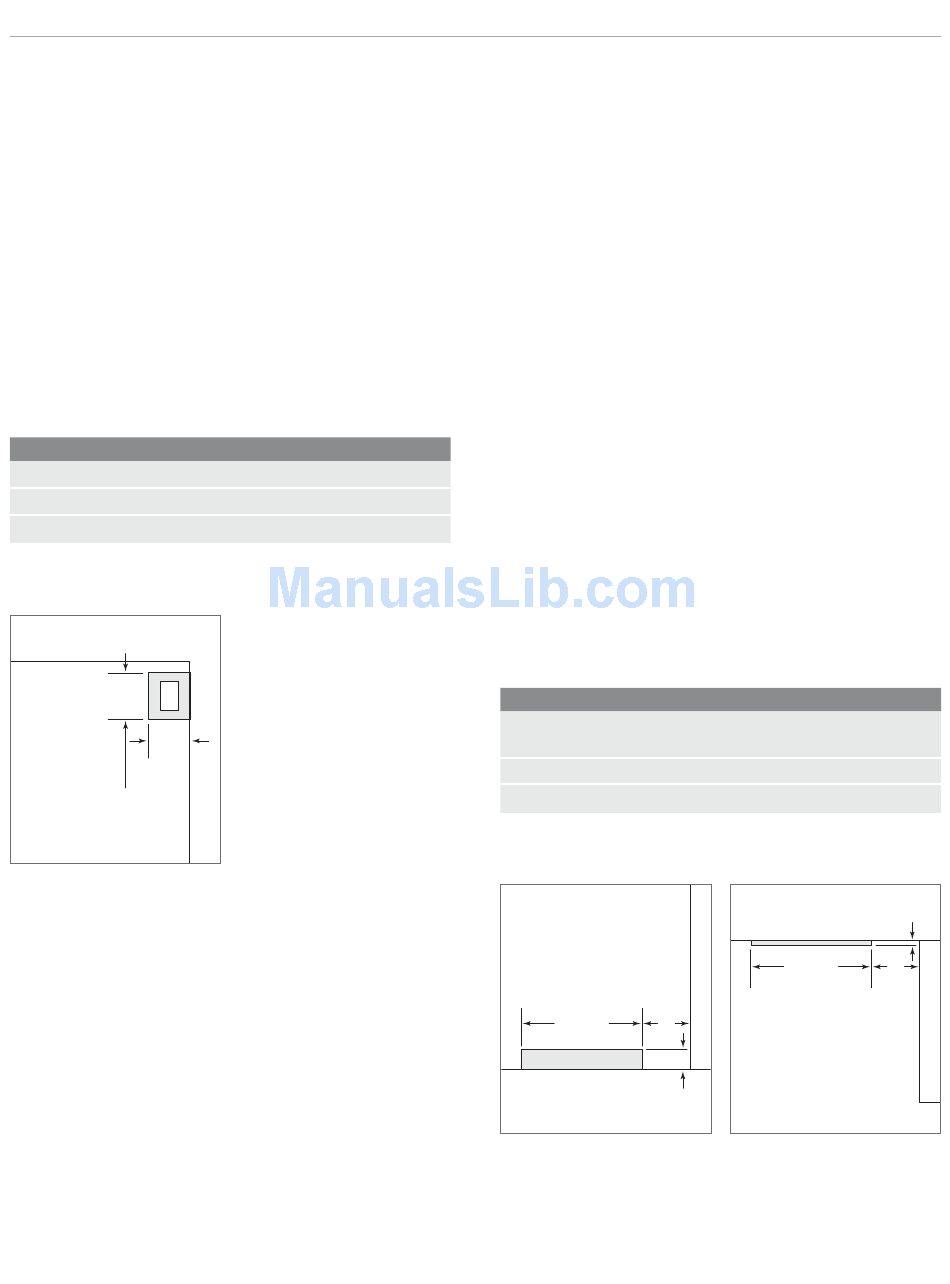

ELECTRICAL REQUIREMENTS
For all built-in models, the electrical supply should be
located within the shaded area shown in the illustration.
Follow the National Electrical Code and local codes and
ordinances when installing the receptacle. A separate
circuit servicing only this appliance is required. A ground
fault circuit interrupter (GFCI) is not recommended and
may cause interruption of operation.
Electrical Requirements
Power Supply
Circuit Breaker
Receptacle
FRONT VIEW
7"
E
(178)
6"
(152)
1
75 / "
2
(1918)
FROM
FLOOR
Location of electrical supply.
115 V AC, 60 Hz
15 amp
3-prong grounding-type
PLUMBING REQUIREMENTS
All built-in models with an automatic ice maker feature a
water filtration system. The water supply line should be
located within the shaded area shown in the illustrations.
The water supply line should be connected to the house
supply with an easily accessible shut-off valve between
the supply and the unit. Do not use self-piercing valves.
A saddle valve kit is available through your authorized
Sub-Zero dealer. The water line must not interfere with
installation of the anti-tip brackets.
IMPORTANT NOTE: A reverse osmosis system can be
used provided there is constant water pressure of 35 psi
to 120 psi
(2.4 bar) (8.3 bar)
In this application, the water filtration system must be set
to bypass mode. This is achieved by removing the water
filter cartridge. Refer to the built-in installation guide
packed with the unit for detailed instructions. A copper
line is not recommended for this application.
Plumbing Requirements
1
Water Supply Line
Water Pressure
Excess Water Line for Connection
18" 6"
(457)
(152)
3"
(76)
FLOOR
FRONT VIEW
Location of water supply—
rear.
subzero.com/specs
supplied to the unit at all times.
/ " OD copper, braided stainless steel
4
or PEX tubing
35–120 psi
(2.4–8.3 bar)
BACK WALL
18"
(457)
TOP VIEW
Location of water supply—
bottom.
11
36"
(914)
1
/ "
2
(13)
6"
(152)
