Sub-Zero BI-36UFD Design Manual page 19

Built-In Refrigeration
Overlay Panels

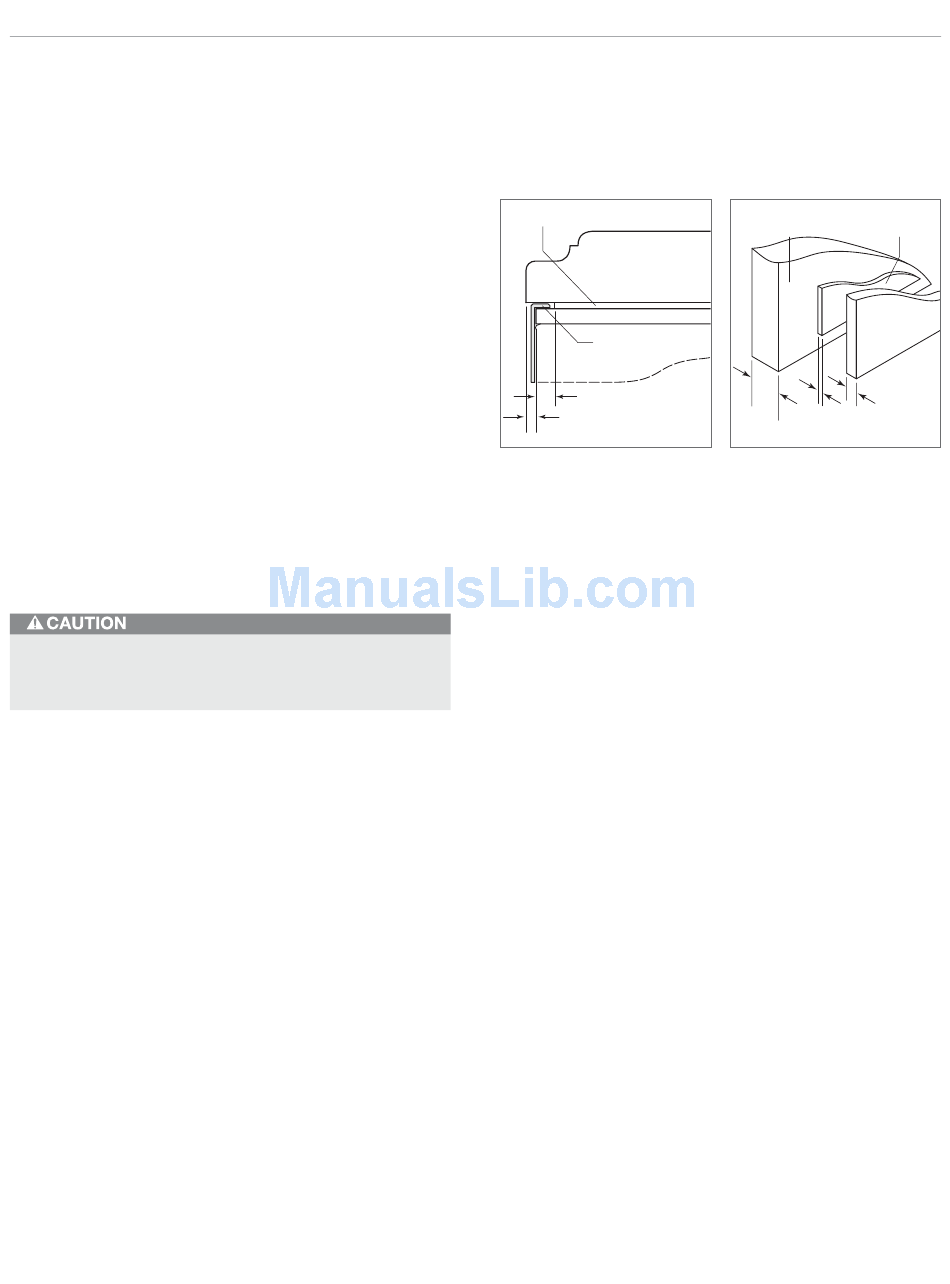

The illustrations provide a cross section view of the three-
panel assembly, showing placement of the trim and a rear
view of the three-panel assembly with critical dimensions,
standard for all built-in models.
Overlay grille panels for the panel grille match the design
of the overlay door panels. Dimensions for the grille panel
are listed in the overlay panel specifications on the follow-
ing pages.
IMPORTANT NOTE: On glass door models, the edges of
the overlay, spacer and backer panels of the window
cut-out will need to be finished, as they will be exposed.
IMPORTANT NOTE: When installing two units in a side-by-
side application, refer to pages 30–31 for dual standard
installations. Be aware that rough opening dimensions are
different for this application.
Do not exceed overlay panel dimensions, as this could
cause damage to panels and the Sub-Zero unit.
SPACER PANEL
OVERLAY PANEL
BACKER PANEL
TRIM
5
/ "
16 (8) min
1
/ "
8
(3)
Panel assembly cross section. Panel assembly rear view.
19
subzero.com/specs
OVERLAY SPACER
PANEL PANEL
BACKER
PANEL
3
/ "
4
1
.10" / "
(19) (3) 4 (6)
typical
