Sub-Zero BI-36UFD Design Manual page 32

Built-In Refrigeration

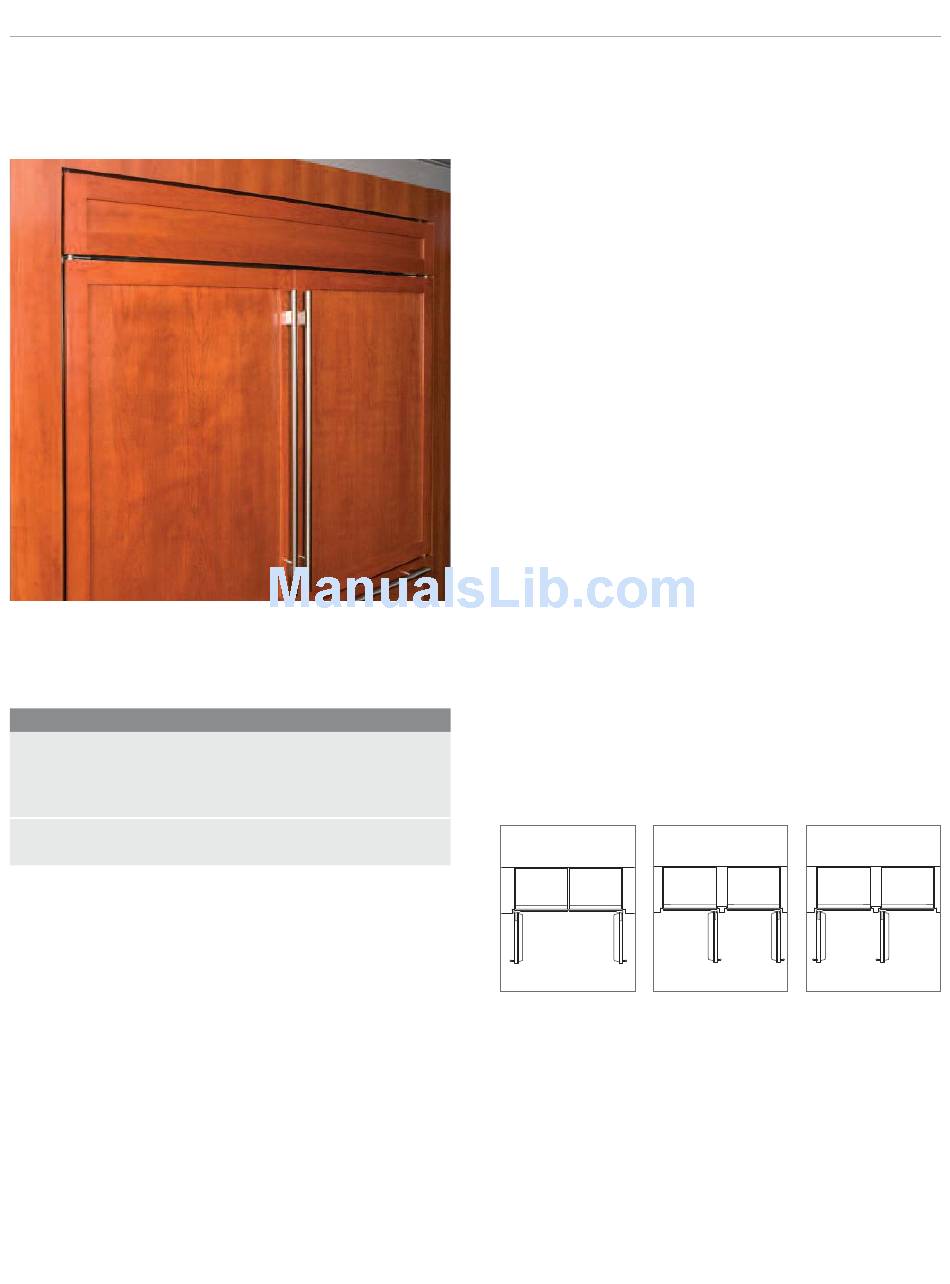

Dual installation—flush inset application.
Dual Installation Panel Requirements
MAX WEIGHT PER PANEL
BI-36R, BI-36RG and BI-36F
All Other Models
Dual Wide Grille Panel
MIN PANEL THICKNESS
Flush Inset Panels
Dual Installation
FLUSH INSET APPLICATION
Installing two built-in models side by side in a flush inset
application will require adjustments to the dimensions of
your finished rough opening, panel sizes and panel offsets.
It will also require a dual installation kit, available through
your authorized Sub-Zero dealer.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip. Refer to the full-scale
template on page 43. Illustration A is the only application
that will accommodate the dual wide grille.
IMPORTANT NOTE: The application shown in illustration A
can only be achieved by installing dual flush inset panels.
Failure to install dual flush inset panels will cause the
handle side of the panels to collide when closing. In this
application a dual installation accessory kit is also
required.
Dual flush inset panels and dual installation kits are avail-
able through your authorized Sub-Zero dealer. Refer to
pages 34–35 for dual flush inset panel specifications and
page 36 for information on dual installation kits.
75 lbs
(34 kg)
50 lbs
(23 kg)
26 lbs
(12 kg)
5
/ "
(16) WITHOUT FILLER STRIP
8
Illus. A
FILLER STRIP REQUIRED FILLER STRIP REQUIRED
Illus. B Illus. C
32
