Wall Plate Installation
Attaching the 1. Loosen the three bottom mounting screws until there is approximately 1/8
HandReader inch (3 mm) clearance between the screw head and the wall plate.
2. Remove the HandReader from its carton.
3. At the base of the HandReader is a piano hinge with three keyhole shaped
slots that correspond with the three lower mounting screws. Align and hang
the HandReader from the three lower mounting screws (see Figure 17-1).
3 LOWER
MOUNTING
SCREWS

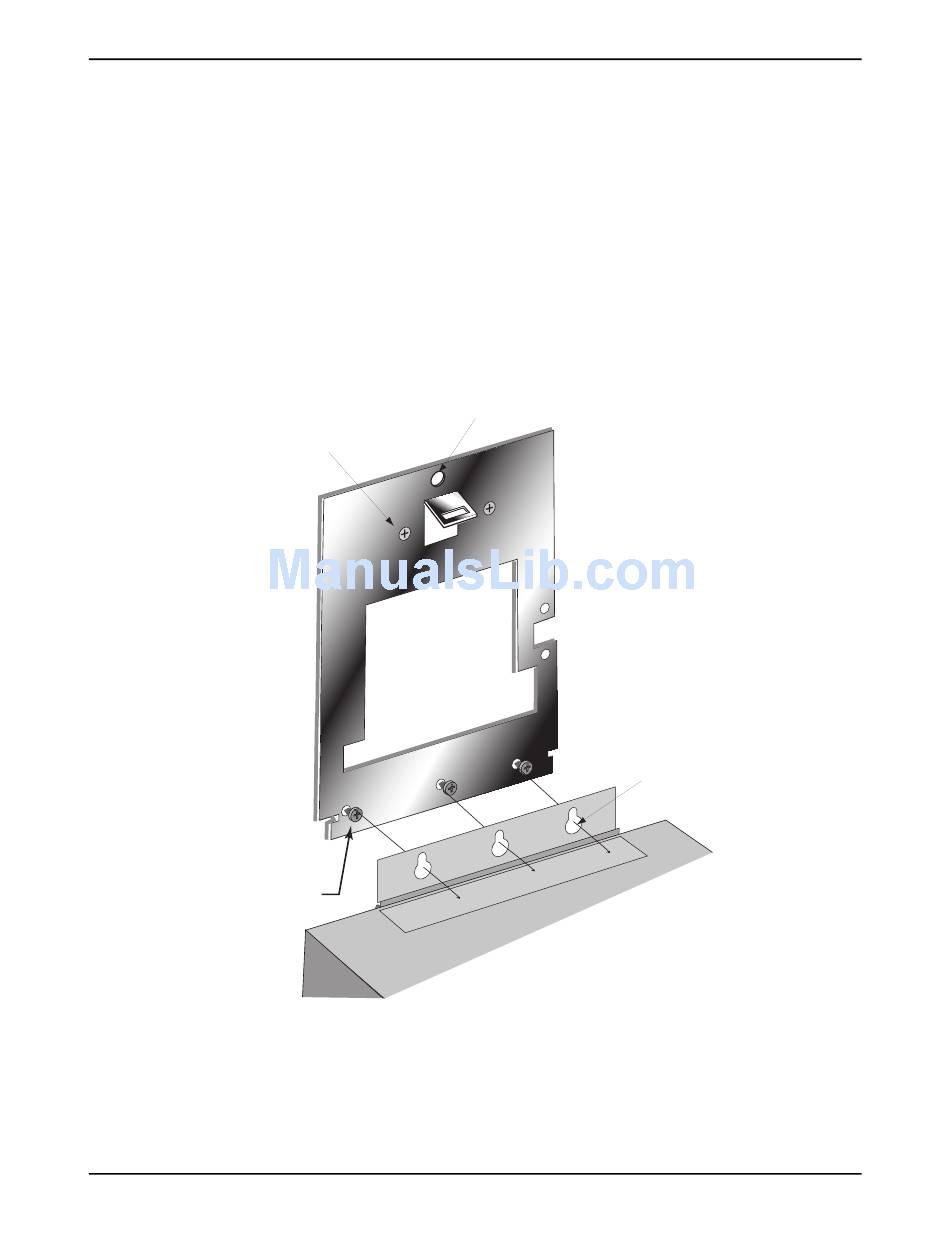

Figure 17-1: Attaching the Hand Reader to the Wall Plate
4. Tighten all three lower mounting screws.
5. The Hand Reader is now ready for its wiring connections.
HOLE
2 UPPER SCREWS
SURFACE
CONDUIT
ENTRY
KEYHOLE
HOLES
REAR OF TERMINAL
HandKey II Manual
Page 77
