Recognition Systems HANDKEY II Manual page 49

O C O C O H L H L NN
O C O C O

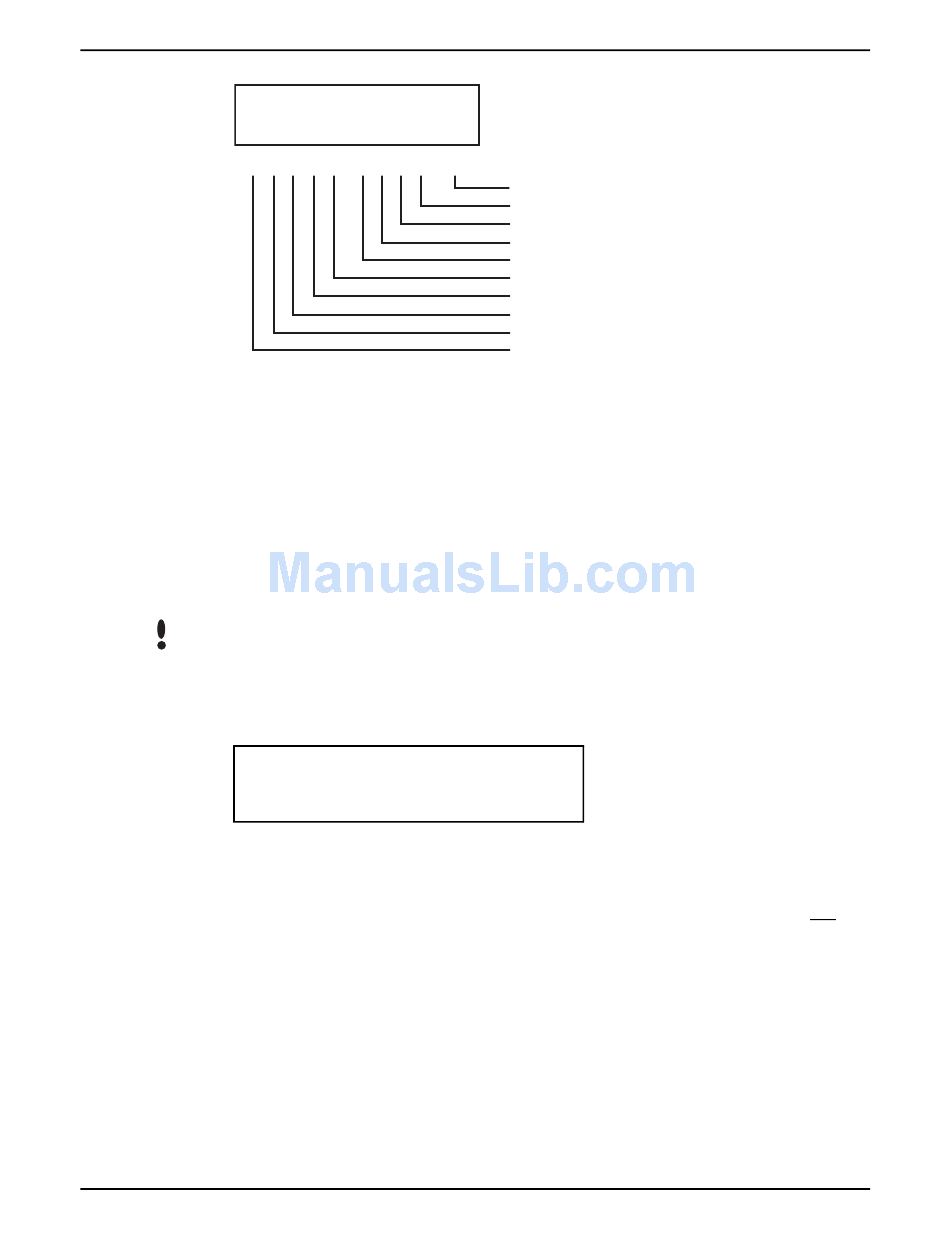

Figure 9-1: Status Display Chart
Network The network status command allows you to check the network communication
Status status of the HandReaders in the HandKey system.
You can check network status only from the Master HandReader in a master/
NOTE
remote HandReader network.
Network status is displayed by reader address, 16 units at a time.
Each "O" and "." represents a HandReader address in the network. An "O"
indicates that the HandReader corresponding to that address is communicating
on the network. A "." indicates that the HandReader with that address is not
communicating on the network.
- ENTER ID -
H L H L NN
O = Circuit Open
C = Circuit Closed
STAT: RDR 0-15
O O O O O O O O. . . . . . . .
Last Hand Read Score
Aux Out 2
Aux Out 1
* Aux Out 0
* Lock
Aux In 2
Request to Exit
Aux In 1
Door Monitor Switch
Tamper
* These status values are inactive if the
reader is in Card Reader Output Mode.
H = Output is OFF (High)
L = Output is ON (Low)
HandKey II Manual
Page 47
