Wiring Connections

Once the HandReader is attached to the wall plate the wiring connections to the
HandReader can be made (see Figure 5-1).

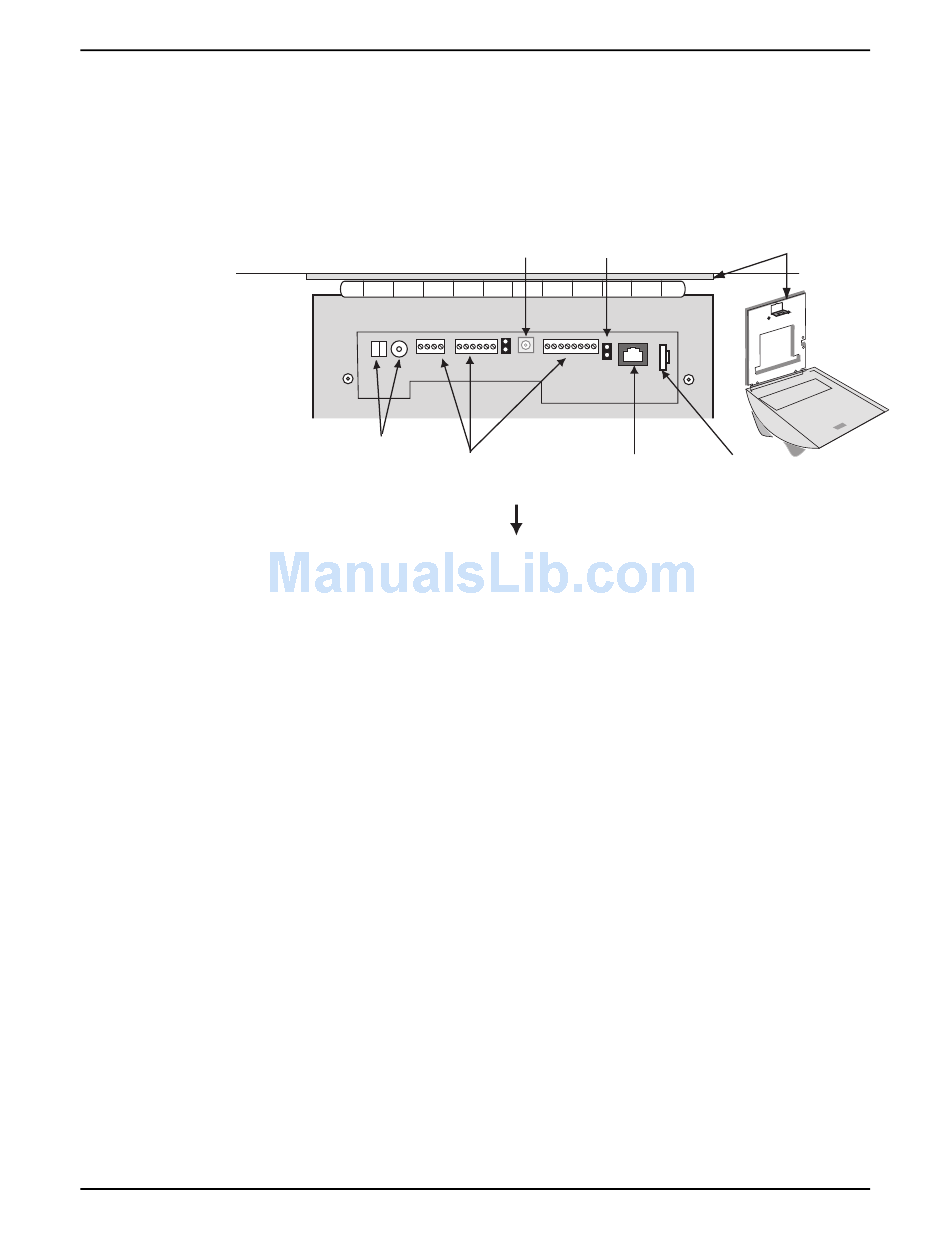

Figure 5-1: Wiring Connections
Wiring Exam- The following Tables provide the pin outs for the terminal strips on the
ples HandReader.
•
•
•
•
The following Figures provide typical HandReader wiring diagrams.
•
•
•
•
•
•
WALL
Power
Connectors
Top of HandKey
Table 2 on page 26 provides the pin outs for TS-1: Communication
Connections.
Table 3 on page 26 provides the pin outs for TS-2: Input Connections.
Table 4 on page 26 provides the pin outs for TS-3: Output Connections.
Table 5 on page 27 provides the pin outs for the Serial RS-232 Connection.
Figure 5-2 on page 28 provides a typical Lock Output wiring diagram.
Figure 5-3 on page 29 provides a typical Auxiliary Output wiring diagram.
Figure 5-4 on page 30 provides a typical Card Reader Emulation Mode wiring
diagram.
Figure 5-5 on page 31 provides a typical RS-422 Master/Remote Network
System wiring diagram.
Figure 5-6 on page 32 provides a typical RS-485 2-Wire Master/Remote
Network System wiring diagram.
Figure 5-7 on page 33 provides a typical Host PC Network System wiring
diagram.
J7 Battery
Reset
Jumper
Switch
Terminal
Optional Modem
Strips
or Ethernet
HandKey II Manual
Wall Plate
Top of
Serial RS-232
Terminal
Page 25
