8. Rotate the front subchassis left, away from the main chassis, until it stops (B in Figure 24).
9. Disconnect all cabling to the electronics bay (D in Figure 24).
10. Using the vertical edge of the electronics bay as a handle, rotate the bay right, away from the
main chassis, until it stops (C in Figure 24).
11. If necessary, completely remove the subchassis and electronics bay: rotate the bays outward
until the two pins that function as hinges for the bays slide out of their slots. Set the bays
aside.
B

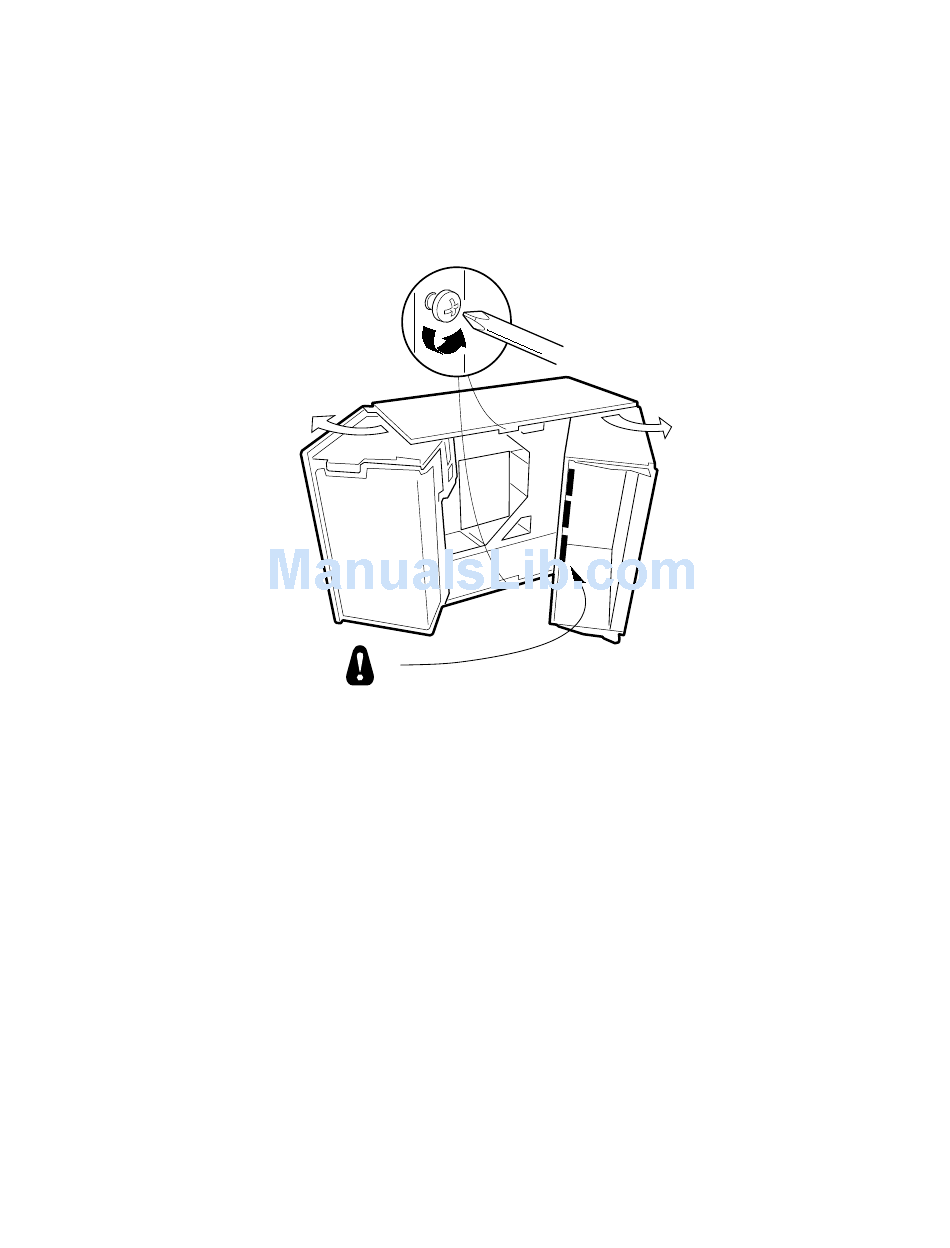

Figure 24. Opening the Subchassis and Electronics Bay
A
D
C
OM08024a
