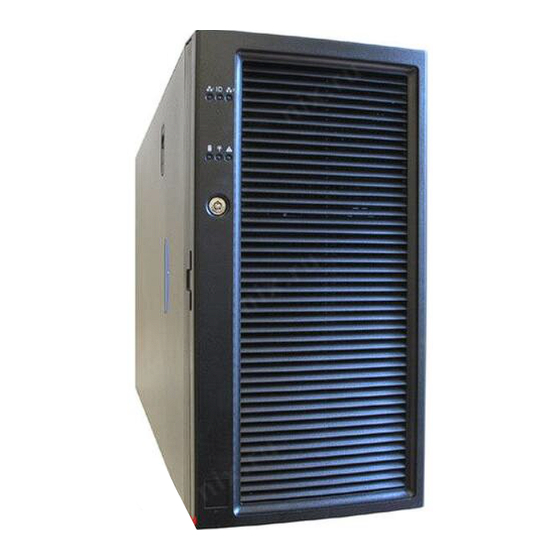

Intel SC5400RA - Server System - 0 MB RAM User Manual

Server system
Hide thumbs Also See for SC5400RA - Server System - 0 MB RAM:
Table of Contents

Advertisement

Quick Links

Download this manual
®
Intel
Server System SC5400RA User's
Guide
A Guide for Technically Qualified Assemblers of Intel® Identified Subassemblies/
Products
Intel Order Number D36227-002

Advertisement

Table of Contents
loading

Related Manuals for Intel SC5400RA - Server System - 0 MB RAM

Summary of Contents for Intel SC5400RA - Server System - 0 MB RAM

  • Page 1 ® Intel Server System SC5400RA User’s Guide A Guide for Technically Qualified Assemblers of Intel® Identified Subassemblies/ Products Intel Order Number D36227-002...
  • Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.

  • Page 3: Safety Information

    Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Server Deployment Toolkit 2.0 CD and/or at http://support.intel.com/support/...
  • Page 4 Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface. Intel® Server System SC5400RA User’s Guide...
  • Page 5 Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board. Intel® Server System SC5400RA User’s Guide...
  • Page 6 Intel® Server System SC5400RA User’s Guide...

  • Page 7: Preface

    Manual Organization ® Chapter 1 provides a brief overview of the Intel Server System SC5400RA. In this chapter, you will find a list of the server system features, photos of the product, and product diagrams to help you identify components and their locations.

  • Page 8: Product Contents, Order Options, And Accessories

    Processor, memory DIMMs, hard drive, floppy drive, CD-ROM or DVD-ROM drive, RAID controller, operating system. For information about which accessories, memory, processors, and third-party hardware have been tested and can be used with your board, and for ordering information for Intel products, see http://support.intel.com/support/motherboards/server/SC5400RA/ compat.htm.

  • Page 9: Additional Information And Software

    Tested Hardware Operating Systems List boards, adapter cards) and operating systems that have been tested with this product ® For software to manage Intel System Management Software ® your Intel server For diagnostics test Search for “Diagnostics” software Intel® Server System SC5400RA User’s Guide...
  • Page 10 Intel® Server System SC5400RA User’s Guide...

  • Page 11: Table Of Contents

    System References ....................23 Removing and Installing the Chassis Cover ..............24 Removing the Chassis Cover .................24 Installing the Chassis Cover ...................25 Removing and Installing the Front Bezel ..............26 Removing the Bezel Assembly (Pedestal Only) .............26 Intel® Server System SC5400RA User’s Guide...
  • Page 12 Installing or Removing a Heatsink ................76 Installing a Heatsink ....................76 Removing a Heatsink ..................... 77 ® ® Installing and Removing the Intel Remote Management Module and the Intel NIC ........................79 ® ® Installing the Intel RMM and the Intel RMM NIC ..........
  • Page 13 Sicherheitshinweise für den Server ..............134 Sicherheitshinweise und Vorsichtsmaßnahmen ...........134 Zielbenutzer der Anwendung ................135 Standortauswahl ....................135 Handhabung von Geräten ..................135 Warnungen zu Netzspannung und Elektrizität ............136 Warnhinweise für den Systemzugang ..............137 Warnhinweise für Racks ..................138 Intel® Server System SC5400RA User’s Guide xiii...
  • Page 14 CNCA (CCC-China) ....................163 Product Ecology Compliance ................163 Other Markings ..................... 166 Regulated Specified Components ................ 167 End-of-Life / Product Recycling ................. 168 Appendix D: Getting Help ..................169 World Wide Web ....................... 169 Telephone ......................... 169 Intel® Server System SC5400RA User’s Guide...
  • Page 15 Limited Warranty for Intel Server System Subassembly Products ......173 Extent of Limited Warranty ..................174 Warranty Limitations and Exclusions .................174 Limitations of Liability ....................174 How to Obtain Warranty Service ................175 Telephone Support ....................175 Returning a Defective Product ................175 Intel® Server System SC5400RA User’s Guide...
  • Page 16 Intel® Server System SC5400RA User’s Guide...

  • Page 17: List Of Figures

    Figure 39. Installing Plastic Air Baffle in Drive Carrier............. 41 Figure 40. Inserting Drive Carrier into Hot Swap Cage ............41 Figure 41. Removing Drive Cage from Drive Bay ..............42 Figure 42. Removing Cage Top from Drive Cage ..............43 Intel® Server System SC5400RA User’s Guide xvii...
  • Page 18 Figure 82. Installing Protective Cover onto Load Plate............75 Figure 83. Applying Thermal Grease ..................76 Figure 84. Installing a Heatsink....................77 ® Figure 85. Preparing System for Addition of Intel RMM NIC ..........79 ® Figure 86. Installing Intel RMM NIC..................
  • Page 19 Figure 111. Password Clear Jumper in Clear Password Position......... 111 Figure 112. CMOS Clear Jumper in the Clear CMOS Position..........112 Figure 113. Routing Power Cables to Fixed Drives .............. 113 Figure 114. Routing SATA Data Cables................114 Intel® Server System SC5400RA User’s Guide...
  • Page 20 Intel® Server System SC5400RA User’s Guide...
  • Page 21 Table 4. Setup Menu Key Use ....................106 Table 5. 830-W Power Supply Output Capability ..............115 Table 6. Environmental Specifications ..................116 Table 7. Product Regulatory Compliance Markings ..............158 Table 8. Product Ecology Compliance Markings ..............164 Table 9. Other Markings ......................166 Intel® Server System SC5400RA User’s Guide...
  • Page 22 Intel® Server System SC5400RA User’s Guide...

  • Page 23: Chapter 1: Server System Features

    Server System Features ® This chapter briefly describes the main features of the Intel Server System SC5400RA. This chapter provides a list of the server system features, and diagrams that show the location of important components and connections in the server system.

  • Page 24: Table 1. Server System Features

    ® The table below summarizes the features of the Intel Server System SC5400RA. Table 1. Server System Features Feature Description • Dimensions 16.6 inches high (pedestal: 17 inches) • 8.6 inches wide • 27.4 inches deep (pedestal: 28.4 inches) •...
  • Page 25 Local Control Panel (optional component sold separately) • ® Support for the Intel Remote Management Module (optional component sold separately) • ® Support for Intel System Management software • ® Intel Light-Guided Diagnostics on field replaceable units Intel® Server System SC5400RA User’s Guide...

  • Page 26: Component Identification

    11. 5.25-inch device bays (three) 5. Memory cage 12. Front panel USB / Serial B connectors 6. Processor air duct 13. Six-drive fixed drive cage 7. Fixed fan - large Figure 2. Component Locations Intel® Server System SC5400RA User’s Guide...

  • Page 27: Front Control Panel

    Front Control Panel ® The following figure shows the features available on the front control panel. The Intel Local Control Panel is optional. TP00701 ID Toggle Switch NIC2 Activity LED (green) Reset Button ID LED (blue) NIC 1 Activity LED (green)

  • Page 28: Table 2. Front Control Panel Led Descriptions

    Green Linked Blink LAN activity Idle NIC2 activity Green Linked Blink LAN activity Idle ID LED Blue Blink Server identification; toggled by ID button or software Server identification; toggled by ID button or software Intel® Server System SC5400RA User’s Guide...

  • Page 29: Intel ® Local Control Panel (Optional Component)

    ® Intel Local Control Panel (optional component) ® The following figure shows the features available on the Intel Local Control Panel. The Intel Local Control Panel is optional. AF000955 Callout Function LCD display (variable content) LCD up navigation button LCD down navigation button...

  • Page 30: Back Panel Features

    I/O Ports. See Figure 6 on page 9 Figure 5. Server System Back The diagram and table show the back panel connectors and LEDs. For information about ® the LEDs, see “Intel Light-Guided Diagnostics” on page Intel® Server System SC5400RA User’s Guide...

  • Page 31: Figure 6. Back Panel Connectors And Leds

    Active network connection is in place Blinking green Transmit / receive activity is occurring Right 10 Mbps connection (if left LED is on or blinking) Solid green 100 Mbps connection Solid amber 1000 Mbps connection Intel® Server System SC5400RA User’s Guide...

  • Page 32: Peripheral Devices

    Optical or floppy drive bay Optical or floppy drive bay Hard drive cage for six hard drives. Can be replaced with 6-drive hot-swap drive cage. Release mechanism for hard drive cage Figure 7. Optional Peripherals Intel® Server System SC5400RA User’s Guide...

  • Page 33: Server Board Connector And Header Locations

    PCI Express x8 slot 5 System fan 3 header HH. SATA 3 PCI Express x8 slot 6 IPMB connector SATA 4 CMOS battery System fan 2 header SATA 5 P12V4 connector System fan 1 header KK. USB port Intel® Server System SC5400RA User’s Guide...

  • Page 34: Figure 8. Server Board Connector And Component Locations

    DIMM LEDs (see “Intel AA. Enclosure management OO. Chassis intrusion header Light-Guided Diagnostics” SATA SGPIO header on page ® Main power connector BB. Intel Local Control Panel header Figure 8. Server Board Connector and Component Locations Intel® Server System SC5400RA User’s Guide...

  • Page 35: Configuration Jumpers

    To clear the CMOS: Power down the server, leaving AC power connected. Place the jumper on pins 2 - 3 for 5 to 10 seconds. Move the jumper back to pins 1 - 2. Power on the server. Intel® Server System SC5400RA User’s Guide...

  • Page 36: Figure 9. Configuration Jumpers

    BMC Force Update 1 - 2 Disable force update: These pins should be jumpered for normal operation. (J1E3) 2 - 3 Enable force update: Jumpering these pins forces a BMC update. Figure 9. Configuration Jumpers Intel® Server System SC5400RA User’s Guide...

  • Page 37: Intel ® Light-Guided Diagnostics

    POST LED. The sequence of lit POST LEDs is used to identify specific errors that might occur during the boot process. See the appendix of the Technical Product Specification for a description of how to read these LEDs. Intel® Server System SC5400RA User’s Guide...

  • Page 38: Figure 10. System Leds

    This LED indicates a fault has occurred with the LEDs corresponding DIMM in DIMM riser card 2. Replace the failed DIMM. See Figure 11 on page 20 to locate the DIMM sockets. Figure 10. System LEDs Intel® Server System SC5400RA User’s Guide...

  • Page 39: Intel

    When installing the server system into a rack, Intel recommends you install systems from the bottom of the rack to the top. In other words, install the first system in the rack into the bottom position of the rack, the second system in the second position from the bottom, and so on.

  • Page 40: Hard Disk Drives

    CD-ROM drive or DVD-ROM drive, see “Installing and Removing a DVD-ROM or CD-ROM Drive” on page To use one of the slimline drives provided by Intel, use the following order codes: • Slimline CD-ROM Drive: AXXSCD •...

  • Page 41: Memory

    Channel D is in the right riser card, nearest to the right side of the server board. This channel consists of — DIMM_D1 (must be populated for minimum configuration) — DIMM_D2 — DIMM_D3 — DIMM_D4 Intel® Server System SC5400RA User’s Guide...

  • Page 42: Figure 11. Dimm Sockets

    Riser Card 2, at the right DIMM_A1 DIMM_C1 DIMM_A2 DIMM_C2 DIMM_A3 DIMM_C3 DIMM_A4 DIMM_C4 DIMM_B1 DIMM_D1 DIMM_B2 DIMM_D2 DIMM_B3 DIMM_D3 DIMM_B4 DIMM_D4 Channel B Channel D Channel A Channel C Figure 11. DIMM Sockets Intel® Server System SC5400RA User’s Guide...
  • Page 43 Note: Full DIMM heat spreader (FDHS) FBDIMMs are required. During the boot process, FBDIMMs that do not meet the population requirements are disabled. For a complete list of supported FBDIMMs, see the links under “Additional Information and Software” on page Intel® Server System SC5400RA User’s Guide...

  • Page 44: Memory Sparing And Mirroring

    The remaining FBDIMMs are used for mirroring. Memory mirroring and memory sparing are mutually exclusive. Only one can be active at ® a time. See the Intel Server Board Technical Product Specification for additional information regarding the memory sub-system. Intel® Server System SC5400RA User’s Guide...

  • Page 45: Chapter 2: Hardware Installations And Upgrades

    Hardware Installations and Upgrades Before You Begin Before working with your server product, pay close attention to the “Safety Information” on page iii. This document provides instructions for adding and replacing server system components. Tools and Supplies Needed • Phillips* (cross head) screwdriver (#1 bit and #2 bit) •...

  • Page 46: Removing And Installing The Chassis Cover

    5. While holding in the blue button at the top of the chassis (see letter "B"), slide the top cover back until it stops. 6. Lift the cover outward to remove it. AF000555 Figure 12. Removing the Chassis Cover Intel® Server System SC5400RA User’s Guide...

  • Page 47: Installing The Chassis Cover

    2. Latch the cover securely to the chassis. 3. If the chassis will be re-shipped, secure the cover to the chassis with the access cover screw. See letter “A” in the following figure. AF000572 Figure 13. Installing the Chassis Cover Intel® Server System SC5400RA User’s Guide...

  • Page 48: Removing And Installing The Front Bezel

    “C”. If the bezel assembly does not immediately disconnect from the chassis, tap the left-hand side of the bezel assembly to disengage the bezel hooks on the right- hand side of the chassis. AF000557 Figure 14. Removing the Front Bezel Intel® Server System SC5400RA User’s Guide...

  • Page 49: Installing The Front Bezel (Pedestal Only)

    6. Rotate the bezel assembly toward the chassis. 7. Latch the two plastic tabs (see letter “E”) on the left side of the bezel assembly to the chassis. 40 ° Max AF001505 Figure 15. Installing the Front Bezel Intel® Server System SC5400RA User’s Guide...

  • Page 50: Installing And Removing Fixed Hard Drive(S)

    — Pull the drive cage from the system. See letter “B” in the figure below. — Position the drive bay horizontally before opening the drive cage doors. TP001490 Figure 16. Removing Six-drive Fixed Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 51: Figure 17. Unlocking And Opening Upper Door Of Fixed Drive Cage

    7. Open the upper door. See letter “B”. AF000579 Figure 17. Unlocking and Opening Upper Door of Fixed Drive Cage 8. Open the lower door. AF000580 Figure 18. Opening Lower Door of Fixed Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 52: Figure 19. Removing Slides From Drive Cage

    Ensure that the metal tabs on the device slides are facing the front of the hard drive and facing towards each other, as shown in the figure. AF000582 Figure 20. Attaching Device Slides to Hard Drive Intel® Server System SC5400RA User’s Guide...

  • Page 53: Figure 21. Inserting Drive/Slide Assembly Into Drive Cage

    Figure 21. Inserting Drive/Slide Assembly into Drive Cage 12. Repeat above steps for installation of additional hard drives into the drive cage. 13. Close the lower door of drive cage. AF000584 Figure 22. Closing Lower Door of Fixed Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 54: Figure 23. Closing Upper Door Of Fixed Drive Cage

    Bezel” on page 19. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 20. Plug all peripheral devices and the AC power cable into the server. 21. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 55: Removing Fixed Hard Drive(S)

    — Position the drive bay horizontally before opening the drive cage doors. TP001490 Figure 25. Removing Six-drive Fixed Drive Cage 7. Loosen the thumb screw. See letter “A” in the following figure. 8. Open the upper door of the drive cage. See letter “B”. Intel® Server System SC5400RA User’s Guide...

  • Page 56: Figure 26. Unlocking And Opening Upper Door Of Fixed Drive Cage

    Figure 26. Unlocking and Opening Upper Door of Fixed Drive Cage 9. Open the lower door. AF000946 Figure 27. Opening Lower Door of Fixed Drive Cage 10. Remove the drive/slide assembly from the drive cage. AF000588 Figure 28. Removing Drive/Slide Assembly from Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 57: Figure 29. Inserting Empty Device Slides Into Drive Cage

    AF000947 Figure 29. Inserting Empty Device Slides into Drive Cage 12. Close the lower door of drive cage. AF000948 Figure 30. Closing Lower Door of Fixed Drive Cage 13. Close the upper door. Intel® Server System SC5400RA User’s Guide...

  • Page 58: Figure 31. Closing Upper Door Of Fixed Drive Cage

    AF000949 Figure 31. Closing Upper Door of Fixed Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 59: Figure 32. Tightening Thumb Screw

    Bezel” on page 18. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 19. Plug all peripheral devices and the AC power cable into the server. 20. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 60: Installing And Removing Hot-Swap Drive(S)

    Figure 33. Removing Drive Carrier from Hot-swap Cage 4. Remove the four screws that secure the plastic air baffle to the drive carrier. Remove the plastic air baffle. AF000590 Figure 34. Removing Plastic Air Baffle Intel® Server System SC5400RA User’s Guide...

  • Page 61: Figure 35. Securing Hard Drive To Drive Carrier

    6. With the black lever open, insert the drive carrier into the drive cage. Once inserted, rotate the black lever upwards to latch the drive carrier into position. AF000592 Figure 36. Inserting Drive Carrier into Hot Swap Cage Intel® Server System SC5400RA User’s Guide...

  • Page 62: Removing Hot-Swap Drive(S)

    Figure 37. Releasing Drive Carrier from Hot-swap Cage 2. Remove the four screws securing the hard drive to the drive carrier. Remove the hard drive from the drive carrier. AF000595 Figure 38. Removing Hard Drive from Drive Carrier Intel® Server System SC5400RA User’s Guide...

  • Page 63: Figure 39. Installing Plastic Air Baffle In Drive Carrier

    4. With the black lever open, insert the drive carrier into the drive cage. Once inserted, rotate the black lever upwards to latch the drive carrier into position. AF000592 Figure 40. Inserting Drive Carrier into Hot Swap Cage Intel® Server System SC5400RA User’s Guide...

  • Page 64: Installing And Removing A Slimline Usb Floppy/Cd-Rom / Dvd-Rom Drive Combo

    Note: You can install either a slimline CD-ROM drive OR a slimline DVD-ROM drive.You cannot install both. Note: For Intel supplied CD-ROM/DVD-ROM drives, the correct setting is “No Jumper”. Note: For non-Intel supplied CD-ROM/DVD-ROM drives, see the documentation that came with your slimline drive for master/slave jumper settings.

  • Page 65: Figure 42. Removing Cage Top From Drive Cage

    Figure 42. Removing Cage Top from Drive Cage 14. Insert the slimline floppy drive into the bottom tray of the drive cage. See the figure below. AF000494 Figure 43. Inserting Slimline Floppy Drive into Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 66: Figure 44. Securing Slimline Floppy Drive To Drive Cage

    20. Use two screws from the bag labeled “A” to secure backplane to slimline CD-ROM / DVD-ROM drive. See letter “B” in the figure below. AF000490 Figure 45. Attaching Backplane to Slimline CD-ROM / DVD-ROM Drive Intel® Server System SC5400RA User’s Guide...

  • Page 67: Figure 46. Securing Slimline Cd-Rom Drive Or Slimline Dvd-Rom Drive To Drive Cage

    “B” in the figure. 25. Rotate the cage top downward at the left side to engage the left tabs. See letter “C”. AF001519 Figure 47. Installing the Cage Top to the Drive Cage Intel® Server System SC5400RA User’s Guide...

  • Page 68: Figure 48. Inserting Drive Cage Into Drive Bay

    Figure 49. Attaching Drive Cage to Drive Bay 28. Press in on the side latches to remove the EMI shield/slide assembly from the upper device bay of the server system. See letter “A” in the following figure. Intel® Server System SC5400RA User’s Guide...

  • Page 69: Figure 50. Removing Emi Shield/Slide Assembly

    30. Slide the slimline drive assembly into the server chassis. See the following figure. Make sure that the drive rails are in the correct slots in the chassis. AF000633 Figure 52. Inserting Slimline Drive Assembly Intel® Server System SC5400RA User’s Guide...

  • Page 70: Figure 53. Cable Connections

    Bezel” on page 35. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 36. Plug all peripheral devices and the AC power cable into the server. 37. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 71: Removing A Slimline Usb Floppy / Cd-Rom / Dvd-Rom Combo Drive

    See letter “B”. A gentle pull should release the slide from the side dimple on the drive tray. AF000575 Figure 54. Removing Slimline DVD-ROM / CD-ROM Drive Assembly from Upper Device Bay Intel® Server System SC5400RA User’s Guide...

  • Page 72: Figure 55. Installing Empty Emi Shield/Slide Assembly

    Bezel” on page 10. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 11. Plug all peripheral devices and the AC power cable into the server. 12. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 73: Installing And Removing A Dvd-Rom Or Cd-Rom Drive

    Figure 56. Removing EMI Shield/Slide Assembly from Upper Device Bay 7. Attach slides to the DVD-ROM or CD-ROM drive by pressing the slides firmly into the side dimples on the DVD-ROM or CD-ROM drive. Intel® Server System SC5400RA User’s Guide...

  • Page 74: Figure 57. Attaching Slides To A Dvd-Rom Or Cd-Rom Drive

    Bezel” on page 11. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 12. Plug all peripheral devices and the AC power cable into the server. 13. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 75: Removing A Dvd-Rom Or Cd-Rom Drive

    8. If not replacing with another drive, re-attach pair of slides to an EMI shield and re- insert EMI shield/slide assembly into the server system for proper airflow. See the following figure. AF000605 Figure 59. Reinserting Empty EMI Shield/Slide Assembly Intel® Server System SC5400RA User’s Guide...

  • Page 76: Installing And Removing Pci Add-In Card(S)

    7. Open the back panel PCI add-in card retention device by pulling it open from the inside of the system. See letter “B”. 8. If a PCI slot cover is installed, remove it by pushing the cover out from the inside of the system. See letter “C”. Intel® Server System SC5400RA User’s Guide...

  • Page 77: Figure 60. Preparing System For Addition Of Pci Add-In Card

    Place the add-in board on an anti-static surface while you record the type and serial number of the add-in board in your equipment log. 10. Set the jumpers or switches on the board according to the add-in card manufacturer’s instructions. Intel® Server System SC5400RA User’s Guide...

  • Page 78: Figure 61. Installing Add-In Card

    See letter “A” in the following figure. 12. Close the back panel PCI add-in card retention device. See letter “B”. AF000599 Figure 61. Installing Add-in Card 13. Repeat steps 6 through 12 to install any other add-in cards. Intel® Server System SC5400RA User’s Guide...

  • Page 79: Figure 62. Reinstalling Pci Add-In Card Retainer

    Bezel” on page 17. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 18. Plug all peripheral devices and the AC power cable into the server. 19. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 80: Removing Pci Add-In Card(S)

    7. Press in on the two plastic tabs to release the PCI add-in card retainer from the server system. See letter “A” in the following figure. 8. Open the back panel PCI add-in card retention device by pulling it open from the inside of the system. See letter “B”. Intel® Server System SC5400RA User’s Guide...

  • Page 81: Figure 63. Preparing System For Removal Of Pci Add-In Card

    Bezel” on page 14. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 15. Plug all peripheral devices and the AC power cable into the server. 16. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 82: Installing And Removing Memory

    4. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 5. Loosen the thumbscrew on the DIMM cage. See letter “A” in the following figure. 6. Lift the DIMM cage cover. See letter “B” in the figure. Intel® Server System SC5400RA User’s Guide...

  • Page 83: Figure 64. Opening Dimm Cage

    AF001406 Figure 64. Opening DIMM Cage Intel® Server System SC5400RA User’s Guide...

  • Page 84: Figure 65. Removing Memory Riser Cards

    8. Identify the DIMM socket(s) you need to use. See the following figure. DIMMs must be installed in sockets DIMM_A1 and DIMM_B1 on memory riser card 1, and in sockets DIMM_C1 and DIMM_D1 on memory riser card 2. Intel® Server System SC5400RA User’s Guide...

  • Page 85: Figure 66. Dimm Sockets

    Riser Card 2, at the right DIMM_A1 DIMM_C1 DIMM_A2 DIMM_C2 DIMM_A3 DIMM_C3 DIMM_A4 DIMM_C4 DIMM_B1 DIMM_D1 DIMM_B2 DIMM_D2 DIMM_B3 DIMM_D3 DIMM_B4 DIMM_D4 Channel B Channel D Channel A Channel C Figure 66. DIMM Sockets Intel® Server System SC5400RA User’s Guide...

  • Page 86: Figure 67. Installing Fbdimms

    13. When the FBDIMM is inserted, push down on the top edge of the FBDIMM until the retaining clips snap into place. See letter “C” in Figure 14. Make sure the clips latch firmly in place. See letter “D” in Figure TP000425 Figure 67. Installing FBDIMMs Intel® Server System SC5400RA User’s Guide...

  • Page 87: Figure 68. Inserting Memory Riser Cards

    17. Close the door on the memory cage and tighten the thumbscrew. 18. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 19. Reconnect the AC power cord. Intel® Server System SC5400RA User’s Guide...

  • Page 88: Removing Fbdimms

    3. Remove the AC power cord from the server. 4. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 5. Loosen the thumbscrew to open the memory riser cage. AF001406 Figure 69. Opening DIMM Cage Intel® Server System SC5400RA User’s Guide...

  • Page 89: Figure 70. Removing Memory Riser Cards

    10. Close the door on the memory cage and tighten the thumbscrew on the cage. 11. Replace the chassis cover. For instructions, see “Installing the Chassis Cover” on page 25 12. Reconnect the AC power cord. Intel® Server System SC5400RA User’s Guide...

  • Page 90: Removing And Installing The Processor Air Duct

    4. Squeeze together at the touch points on the processor air duct to disengage it from the server system. See letter “A” in the following figure. 5. Lift the processor air duct from the server system. See letter “B”. AF001506 Figure 71. Removing the Processor Air Duct Intel® Server System SC5400RA User’s Guide...

  • Page 91: Installing The Processor Air Duct

    1. Set the processor air duct into place, making sure the tabs on the processor air duct engage their matching slots and hooks in the chassis. See letters “A” and “B” in the figure below. AF001507 Figure 72. Installing the Air Duct Intel® Server System SC5400RA User’s Guide...

  • Page 92: Installing Or Removing A Processor

    3. Disconnect the AC power cord from the server. 4. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 5. Remove the processor air duct. For instructions, see “Removing the Processor Air Duct” on page Intel® Server System SC5400RA User’s Guide...

  • Page 93: Figure 73. Locating Processor Sockets / Heatsinks

    6. The processor sockets are covered by the heatsinks. Locate the heatsinks / processor sockets. See Figure AF001416 Callout Processor Socket Callout Processor Socket Heatsink and CPU_2 Heatsink and CPU_1 socket socket Figure 73. Locating Processor Sockets / Heatsinks Intel® Server System SC5400RA User’s Guide...

  • Page 94: Figure 74. Removing Heatsink

    9. Push down on the rear tab of the load plate to swing the front of the load plate up slightly. Fully open the load plate. See Figure AF000096 Figure 76. Opening Load Plate Intel® Server System SC5400RA User’s Guide...

  • Page 95: Figure 77. Removing Protective Cover From Load Plate

    14. Close the socket lever. Push downward on the socket lever while pushing it toward the center of the processor socket to engage it under the hook on the processor socket. 15. Install the heatsink(s). See “Installing a Heatsink” on page 76 for instructions. Intel® Server System SC5400RA User’s Guide...

  • Page 96: Removing A Processor

    8. Push down on the rear tab of the load plate to swing the front of the load plate up slightly. Fully open the load plate. See Figure AF000415 Figure 80. Opening Load Plate Intel® Server System SC5400RA User’s Guide...

  • Page 97: Figure 81. Removing Processor From Socket

    10. Store the processor in the packaging materials in which it came. 11. Install the protective cover over the load plate if a replacement processor will not be installed. AF000417 Figure 82. Installing Protective Cover onto Load Plate Intel® Server System SC5400RA User’s Guide...

  • Page 98: Installing Or Removing A Heatsink

    1. Use the syringe to apply thermal grease to the top of the processor. AF001487 Figure 83. Applying Thermal Grease 2. Set the heatsink over the processor socket, lining up the four captive screws with the four posts surrounding the processor socket. Intel® Server System SC5400RA User’s Guide...

  • Page 99: Removing A Heatsink

    Doing so will cause your server to overheat and may cause permanent damage. • The server system must be operated with both heat sinks installed, regardless of whether one or two processors are installed. Intel® Server System SC5400RA User’s Guide...
  • Page 100 3. Lift the heat sink from the system. If it does not pull up easily, make sure the screws are fully loosened and twist the heat sink slighly again if a processor is installed beneath the heatsink. Do not force the heatsink from the processor. Doing so could damage the processor. Intel® Server System SC5400RA User’s Guide...

  • Page 101: Rmm Nic

    6. If a PCI slot cover is installed, remove it by pushing the cover out from the inside of the system. See letter “C”. AF001527 ® Figure 85. Preparing System for Addition of Intel RMM NIC ® 7. Install the Intel RMM NIC onto the PCI bracket that came with the kit.

  • Page 102: Figure 86. Installing Intel ® Rmm Nic

    ® 10. Insert the standoff into the hole labeled TH4 on the Intel RMM board. See letter ® “A” in the figure below. The standoff installs on the under side of the Intel board. ® 11. Attach the Intel RMM board to the server board connector and snap the standoff into the matching hole on the server board.

  • Page 103: Removing The Intel ® Rmm And The Intel ® Rmm Nic

    RMM NIC cable from the server board and from the RMM NIC. See letter “A” in the following figure. 6. Lift the bracket containing the RMM NIC from the server system. See letter “B” in the figure. Intel® Server System SC5400RA User’s Guide...

  • Page 104: Figure 88. Removing The Intel ® Rmm Nic

    AF001526 ® Figure 88. Removing the Intel RMM NIC ® 7. Lift the Intel RMM board from the server system. See the figure below. AF001511 ® Figure 89. Removing the Intel Remote Managemrnt Module Intel® Server System SC5400RA User’s Guide...

  • Page 105: Replacing The Control Panel

    10. Power up the server. Replacing the Control Panel ® The steps for replacing the front control panel and the Intel Local Control Panel are nearly identical. Use the following steps for both varieties of the control panel. Where necessary, differences between the two control panels are noted.

  • Page 106: Replacing A System Fan

    8. Connect the fan power cable to the server board. 9. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 10. Plug all peripheral devices and the AC power cable into the server. 11. Power up the server. Intel® Server System SC5400RA User’s Guide...

  • Page 107: Installing An Additional Hot-Swap Power Supply Module

    1. Remove the screws from the filler panel. See letter “A” in the following figure. 2. Lift the power supply filler panel from the system. See letter “B”. AF000602 Figure 91. Removing the Power Supply Filler Panel Intel® Server System SC5400RA User’s Guide...

  • Page 108: Replacing A Hot-Swap Power Supply

    See letter “A” in the following figure. 3. Press on green latch while pulling on handle to remove power supply from the server system. See letter “B” in the figure. AF000956 Figure 93. Removing a Hot-swap Power Supply Intel® Server System SC5400RA User’s Guide...

  • Page 109: Figure 94. Installing Hot Swap Power Supply

    5. Replace the shipping screw if the system will be shipped to another location. See letter “A” in the following figure. AF000603 Figure 94. Installing Hot Swap Power Supply 6. Connect the power cable to the power supply. Intel® Server System SC5400RA User’s Guide...

  • Page 110: Replacing The Power Distribution Board

    8. Repeat steps 6 and 7 for the second hot swap power supply if one is installed. AF000956 Figure 95. Removing Hot Swap Power Supply 9. Disconnect all internal power cables from server system components and from the server board. Intel® Server System SC5400RA User’s Guide...

  • Page 111: Figure 96. Detaching Center Divider

    10. Remove the screw that secures the center divider to the power supply cage. See letter “A” in the following figure. 11. Push the center divider straight back to release tabs from chassis slots. See letter “B”. TP001400 Figure 96. Detaching Center Divider Intel® Server System SC5400RA User’s Guide...

  • Page 112: Figure 97. Removing Center Divider

    See letter “A” in the figure below. 13. Remove the center divider from the power supply cage. See letter “B” in the figure. TP001401 Figure 97. Removing Center Divider Intel® Server System SC5400RA User’s Guide...

  • Page 113: Figure 98. Detaching Power Distribution Board

    14. Loosen thumb screw securing the power distribution board to the server system. See letter “A” in the following figure. 15. Lift the power distribution board from the standoffs. See letter “B”. AF001402 Figure 98. Detaching Power Distribution Board Intel® Server System SC5400RA User’s Guide...

  • Page 114: Figure 99. Removing Power Distribution Board

    See letter “A” in the figure below. You may need to feed the power cables through the power supply cage while removing the power distribution board. AF001403 Figure 99. Removing Power Distribution Board Note: The cables on the back of the power distribution board are not shown. Intel® Server System SC5400RA User’s Guide...

  • Page 115: Figure 100. Inserting Power Distribution Board

    17. Slide the replacement power distribution board in through the power supply cage. See letter “A” in the following figure. As you insert the board, route the power cables to the appropriate connection area. AF001404 Figure 100. Inserting Power Distribution Board Intel® Server System SC5400RA User’s Guide...

  • Page 116: Figure 101. Securing Power Distribution Board To Power Supply Cage

    Note: The cables on the back of the power distribution board are not shown. 20. Connect the P1, P14, and P16 cables to the server board. 21. Reconnect power cables to other server system components as appropriate. Intel® Server System SC5400RA User’s Guide...

  • Page 117: Figure 102. Re-Installing Center Divider

    22. Slide center divider into the chassis through the power supply cage. See letter “A” in the figure below. 23. Straighten the center divider and engage it in the clips in the power supply cage. See letter “B” in the figure below. TP001429 Figure 102. Re-installing Center Divider Intel® Server System SC5400RA User’s Guide...

  • Page 118: Figure 103. Securing Center Divider

    Figure 103. Securing Center Divider 25. Insert hot swap power supply(s) into chassis. Replace shipping screw(s) if shipping the system to another location. See letter “A” in the following figure. AF000603 Figure 104. Installing Hot Swap Power Supply Intel® Server System SC5400RA User’s Guide...

  • Page 119: Replacing The Cmos Battery

    2. Turn off all peripheral devices connected to the server. Turn off the server. 3. Disconnect the AC power cord from the server. 4. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page Intel® Server System SC5400RA User’s Guide...

  • Page 120: Figure 105. Locating And Removing The Cmos Battery

    10. Install the chassis cover 11. Reconnect the AC power cord and power up the system. 12. Run the BIOS Setup utility to restore the configuration settings to the real-time clock. Intel® Server System SC5400RA User’s Guide...

  • Page 121: Replacing The Server Board

    “Removing the Processor Air Duct” on page 6. Loosen the thumbscrew on the memory riser cage to open the door on the cage. See the figure below. AF001406 Figure 106. Opening Memory Riser Cage Intel® Server System SC5400RA User’s Guide...

  • Page 122: Figure 107. Removing Memory Riser Cards

    7. Pull the memory riser cards from the memory riser cage. See the figure below. AF001407 Figure 107. Removing Memory Riser Cards Intel® Server System SC5400RA User’s Guide...

  • Page 123: Figure 108. Removing Memory Riser Cage

    12. Remove each processor. For instructions, see “Removing a Processor” on page 13. Remove each PCI add-in card. ® ® 14. Remove the Intel Remote Management Module and the Intel RMM NIC if they ® ® are installed. For instructions, see “Removing the Intel RMM and the Intel RMM NIC”...

  • Page 124: Installing A Server Board

    5. Set the memory cage into place. See letter “A” in the figure below. 6. Secure the memory cage with the two screws you removed earlier. See letter “B” in the figure. AF001410 Figure 109. Installing Memory Riser Cage Intel® Server System SC5400RA User’s Guide...
  • Page 125 10. Close the door on the memory board cage and tighten the thumscrew to secure the door. ® ® 11. Install the Intel Remote Management Module and the Intel RMM NIC if ® ® necessary. For instructions, see “Installing the Intel RMM and the Intel NIC”...
  • Page 126 Intel® Server System SC5400RA User’s Guide...

  • Page 127: Chapter 3: System Utilities

    If You Cannot Access Setup If you are not able to access BIOS Setup, you might need to clear the CMOS memory. For instructions on clearing the CMOS, see “Clearing the CMOS” on page 112. Intel® Server System SC5400RA User’s Guide...

  • Page 128: Setup Menus

    When the <Esc> key is pressed in any submenu, the parent menu is re-entered. When the <Esc> key is pressed in any major menu, the exit confirmation window is displayed and the user is asked whether changes can be discarded. Intel® Server System SC5400RA User’s Guide...

  • Page 129: Upgrading The Bios

    This provides a safeguard against problems that might happen during the upgrade, such as a power outage during the upgrade process. This is called the rolling BIOS feature. Intel® Server System SC5400RA User’s Guide...

  • Page 130: Preparing For The Upgrade

    Note: You may encounter a CMOS Checksum error or other problem after reboot. If this happens, shut down the system and boot it again. CMOS checksum errors require that you enter Setup, check your settings, save your settings, and exit Setup. Intel® Server System SC5400RA User’s Guide...

  • Page 131: Reverting To The Previous Bios

    Bank_0 position, covering pins 1 and 2, as shown by the diagram. BIOS Bank Select Force Lower Bank Normal Operation (default) J1C3 AF001426 Figure 110. BIOS Bank Select Jumper in Force Lower Bank Position Intel® Server System SC5400RA User’s Guide...

  • Page 132: Clearing The Password

    3. Locate the Password Clear jumper block at board position J1D2. See Figure 111. 4. Move the jumper from the normal operation position, covering pins 1 and 2, to the Password Clear position, covering pins 2 and 3, as shown by the diagram. Intel® Server System SC5400RA User’s Guide...

  • Page 133: Figure 111. Password Clear Jumper In Clear Password Position

    7. Move the Passwrd Clear jumper back to the original position, covering pins 1 and 2. 8. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 9. Power up the server system. Intel® Server System SC5400RA User’s Guide...

  • Page 134: Clearing The Cmos

    6. Move the CMOS Clear jumper back to the original position, covering pins 1 and 2. 7. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 8. Power up the server system. Intel® Server System SC5400RA User’s Guide...

  • Page 135: Chapter 4: Technical Reference

    Technical Reference Power Cable Routing to Fixed Drives Power Cable Routing Chassis Primary Side View To Upper Device Bay To Server Board To 6-Drive Cage Cable Slot PCI Add-in card retainer detail AF001509 Figure 113. Routing Power Cables to Fixed Drives Power Cable Routing Guidelines: •...

  • Page 136: Data Cable Routing To Fixed Drives

    Connect data cables to the respective fixed drive and to the appropriate connector on the server board. SATA Cable Routing Chassis Primary Side View SATA Cable SATA Connection to Server Board Chassis Primary Side View To 6-Drive Cage AF001508 Figure 114. Routing SATA Data Cables Intel® Server System SC5400RA User’s Guide...

  • Page 137: Power Supply Specifications

    The expansion slots on the server board are rated for no more than 25 Watts for any one slot. The average current usage per slot should not exceed 13 Watts. Intel® Server System SC5400RA User’s Guide...

  • Page 138: System Environmental Specifications

    Operating: 2.0 g, 11 msec, 1/2 sine Shock Packaged: Operational after an 18" free fall. 5.5 BA LWA idle; 6.3 BA LWA typical operating Acoustic Noise Tested to 15 kilovolts (kV); no component damage. Electrostatic discharge (ESD) Intel® Server System SC5400RA User’s Guide...

  • Page 139: Appendix A: Installation/Assembly Safety Instructions

    Appendix A: Installation/Assembly Safety Instructions English The power supply in this product contains no user-serviceable parts. Refer servicing only to qualified personnel. Do not attempt to modify or use the supplied AC power cord if it is not the exact type required. A product with more than one power supply will have a separate AC power cord for each supply.
  • Page 140 • Provided with a properly grounded wall outlet. • Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. Intel® Server System SC5400RA User’s Guide...

  • Page 141: Deutsch

    Anschlußkabel von den I/O Anschlüssen oder Ports ab. 5. Tragen Sie ein geerdetes Antistatik Gelenkband, um elektrostatische Ladungen (ESD) über blanke Metallstellen bei der Handhabung der Komponenten zu vermeiden. 6. Schalten Sie das System niemals ohne ordnungsgemäß montiertes Gehäuse ein. Intel® Server System SC5400RA User’s Guide...
  • Page 142 Schutzhandschuhe tragen. Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend. Intel® Server System SC5400RA User’s Guide...
  • Page 143 Telekommunikationsleitungen mit dem Modem bestehen; • "mit einer geerdeten Wechselstromsteckdose ausgerüstet sein; • "über ausreichend Platz verfügen, um Zugang zu den Netzkabeln zu gewährleisten, da der Stromanschluß des Produkts hauptsächlich über die Kabel unterbrochen wird Intel® Server System SC5400RA User’s Guide...

  • Page 144: Français

    Procédez comme suit: 1. Si un cadenas a été installé sur à l'arrière du système, déverrouillez-le et retirez-le. 2. Retirez toutes les vis des panneaux et mettez-les dans un endroit sûr. 3. Retirez les panneaux. Intel® Server System SC5400RA User’s Guide...
  • Page 145 • "Muni d'une prise murale correctement mise à la terre. • "Suffisamment spacieux pour vous permettre d'accéder aux câbles d'alimentation (ceux-ci étant le seul moyen de mettre le système hors tension). Intel® Server System SC5400RA User’s Guide...

  • Page 146: Español

    Para ello: 1. Desbloquee y extraiga el bloqueo de seguridad de la parte posterior del sistema, si se ha instalado uno. 2. Extraiga y guarde todos los tornillos de las tapas.Extraiga las tapas. Intel® Server System SC5400RA User’s Guide...
  • Page 147 • "Provisto de una toma de tierra correctamente instalada. • "Provisto de espacio suficiente como para acceder a los cables de alimentación, ya que éstos hacen de medio principal de desconexión del sistema. Intel® Server System SC5400RA User’s Guide...

  • Page 148: Italiano

    1. Aprire e rimuovere il lucchetto dal retro del sistema qualora ve ne fosse uno installato. 2. Togliere e mettere in un posto sicuro tutte le viti delle coperture. 3. Togliere le coperture. Intel® Server System SC5400RA User’s Guide...
  • Page 149 • "Dotata di una presa a muro correttamente installata. • "Dotata di spazio sufficiente ad accedere ai cavi di alimentazione, i quali rappresentano il mezzo principale di scollegamento del sistema. Intel® Server System SC5400RA User’s Guide...
  • Page 150 Intel® Server System SC5400RA User’s Guide...

  • Page 151: Appendix B: Safety Information

    To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in ® this guide before installing or maintaining your Intel server product. In the event of a conflict between the information in this document and information provided with the product or on the website for a particular product, the product documentation takes precedence.

  • Page 152: Intended Application Uses

    Reduce the risk of personal injury or equipment damage: • Conform to local occupational health and safety requirements when moving and lifting equipment. • Use mechanical assistance or other suitable assistance when moving and lifting equipment. Intel® Server System SC5400RA User’s Guide...

  • Page 153: Power And Electrical Warnings

    The power supply cord(s) is/are the main disconnect device to AC power. The socket outlet(s) must be near the equipment and readily accessible for disconnection. • The power supply cord(s) must be plugged into socket-outlet(s) that is /are provided with a suitable earth ground. Intel® Server System SC5400RA User’s Guide...

  • Page 154: System Access Warnings

    To avoid risk of potential electric shock, a proper safety ground must be implemented for the rack and each piece of equipment installed in it. Intel® Server System SC5400RA User’s Guide...

  • Page 155: Electrostatic Discharge (Esd)

    Caution: To avoid risk of radiation exposure and/or personal injury: • Do not open the enclosure of any laser peripheral or device • Laser peripherals or devices have are not user serviceable • Return to manufacturer for servicing Intel® Server System SC5400RA User’s Guide...

  • Page 156: Sicherheitshinweise Für Den Server

    Deutsch Sicherheitshinweise für den Server Das vorliegende Dokument bezieht sich auf Intel® Serverplatinen, Intel® Servergehäuse (Standfuß und Rack) sowie installierte Peripheriegeräte. Es enthält Warnungen und Vorsichtsmaßnahmen zur Vermeidung von Gefahren durch Verletzung, Stromschlag, Feuer und Beschädigungen von Geräten. Lesen Sie diese Dokument daher sorgfältig, bevor Sie Ihr Intel®...

  • Page 157: Zielbenutzer Der Anwendung

    Beachten Sie zur Vermeidung von Verletzungen oder Beschädigungen an den Geräten die folgenden Hinweise: • Halten Sie beim Transportieren und Anheben von Geräten die örtlichen Gesundheits und Sicherheitsvorschriften ein. • Verwenden Sie mechanische oder andere geeignete Hilfsmittel zum Transportieren oder Anheben von Geräten. Intel® Server System SC5400RA User’s Guide...

  • Page 158: Warnungen Zu Netzspannung Und Elektrizität

    Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...

  • Page 159: Warnhinweise Für Den Systemzugang

    Vorsicht: War Ihr Server in Betrieb, können die installierten Prozessoren und Kühlkörper heiß sein. Sofern Sie keine Hot-Plug-Komponenten ein- oder ausbauen, warten Sie mit dem Abnehmen der Abdeckungen, bis das System abgekühlt ist. Gehen Sie beim Aus- oder Intel® Server System SC5400RA User’s Guide...

  • Page 160: Warnhinweise Für Racks

    Ausbau aus dem Server mit der Bauelementseite nach oben auf eine geerdete, statisch entladene Unterlage.Verwenden Sie dazu, sofern verfügbar, eine leitfahige Schaumstoffunterlage, aber niche die Schutzhülle der Platine. Ziehen Sie die Platine nicht über eine Fläche. Intel® Server System SC5400RA User’s Guide...

  • Page 161: Andere Gefahren

    Vorsicht: Beachten Sie zur Vermeidung von Strahlung und Verletzungen die folgenden Hinweise: • Öffnen Sie keinesfalls das Gehäuse von Laser-Peripheriegeräten oder Laser- Komponenten. • Laser-Peripheriegeräte oder -Komponenten besitzen keine für den Benutzer wartungsbedürftigen Teile. • Schicken Sie das Gerät für Wartungsarbeiten an den Hersteller zurück. Intel® Server System SC5400RA User’s Guide...

  • Page 162: Français

    Français Consignes de sécurité sur le serveur Ce document s’applique aux cartes serveur Intel®, au châssis de serveur Intel® (sur pieds et sur rack) et aux périphériques installés. Pour réduire les risques de dommages corporels, d’électrocution, d’incendie et de dommages matériels, lisez ce document et respectez tous les avertissements et précautions mentionnés dans ce guide avant...

  • Page 163: Domaines D'utilisation Prévus

    • Utilisez l’assistance mécanique ou toute autre assistance appropriée lorsque vous déplacez et soulevez le matériel. • Pour réduire le poids en vue de faciliter la manipulation, retirez tout composant amovible. Intel® Server System SC5400RA User’s Guide...

  • Page 164: Alimentation Et Avertissements En Matière D'électricité

    Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.

  • Page 165: Avertissements Sur L'accès Au Système

    Vous êtes responsable de l’installation d’un disjoncteur principal d’alimentation pour la totalité du rack. Ce disjoncteur principal doit être rapidement accessible et doit être étiqueté comme contrôlant toute l’unité, et pas uniquement le ou les serveurs. Intel® Server System SC5400RA User’s Guide...

  • Page 166: Décharges Électrostatiques (Esd)

    Vérifiez tout d’abord que vous n’avez pas oublié d’outils ou de composants détachés à l’intérieur du système. • Vérifiez que les câbles, les cartes d’extension et les autres composants sont correctement installés. • Fixez les panneaux au châssis en suivant les instructions du produit. Intel® Server System SC5400RA User’s Guide...

  • Page 167: Español

    Retournez-les au fabricant en cas de problème. Español Información de seguridad del servidor ® Este documento se aplica a las tarjetas de servidor de Intel , las carcasas de servidor de ® Intel (montaje en bastidor y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento...

  • Page 168: Aplicaciones Y Usos Previstos

    Provista de una toma de corriente alterna correctamente conectada a tierra. • Provista de espacio suficiente para acceder a los cables de la fuente de alimentación ya que constituyen la desconexión principal de la alimentación. Intel® Server System SC5400RA User’s Guide...

  • Page 169: Manipulación Del Equipo

    CA estén desenchufado antes de abrir la carcasa, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques electricos use precauciónes al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.

  • Page 170: Advertencias El Acceso Al Sistema

    A no ser que esté instalando o extrayendo un componente de conexión en funcionamiento, deje que el sistema se enfríe antes de abrir las cubiertas. Para que no llegue a tocar los componentes que estén calientes cuando esté realizando una instalación Intel® Server System SC5400RA User’s Guide...

  • Page 171: Advertencias Sobre El Montaje En Bastidor

    Precaución: Existe el peligro de explosión si la batería no se reemplaza correctamente. Al reemplazar la batería, utilice sólo la batería recomendada por el fabricante del equipo. Deseche las baterías respetando la normativa local. Intel® Server System SC5400RA User’s Guide...
  • Page 172 Precaución: Para evitar el riesgo de la exposición a radiaciones o de daños personales: • No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare. Intel® Server System SC5400RA User’s Guide...
  • Page 173 认证和其他管理审批无效，并可能导致产品不符合销售地的产品法规。 安全警告与注意事项 为避免人身伤害与财产损失，安装本产品之前，请阅读以下所有安全指导和信息 下面所列的安全符号可能在整个文档中使用并可能标注于产品和 / 或产品包装之上。 注意 表示如果无视此“? ? ? 项”? ? ? ? ? ? ? 轻微人身伤害或财产损失的危 警告 表示如果无视此“? ? ”? ? ? ? ? ? ? 严重人身伤害的危险。 表示如果无视所示信息，即存在潜在的危险。 表示如果不遵守安全指导，存在可导致严重伤害或死亡的电击危险。 表示灼热组件或表面。 表示请勿触摸风机叶片，否则可能致伤。 表示拔下所有交流电线，断开交流电源 Intel® Server System SC5400RA User’s Guide...
  • Page 174 通风良好，远离热源（包括直接日晒和散热器）。 • 远离振动源或物理震动。 • 与电气设备产生的强大电磁场隔离。 • 在易受闪电袭击的地区，我们建议将系统插入电涌抑制器并在闪电期间断开通信 线路与调制解调器之间的连接。 • 提供正确接地的墙壁插座。 • 提供足够的空间，以便拿取电源供应线，因为这是本产品的主要电源断开器。 设备操作规范 减少人身伤害或设备受损的危险： • 移举设备时遵守当地的职业健康与安全要求。 • 借助机械手段或其他合适的手段移举设备。 • 拆除一切易分离组件，以降低重量并方便操作。 电源与电气警告 注意事项 电源按钮（如待机电源标记所示）并不能完全关闭系统的交流电源，只要系统已接 通电源，就存在 5V 待机电源。要从系统切断电源，须从墙壁电源插座中拔下交流电线。您的系统可能 不止使用一根交流电线。请确保所有的交流电线都已拔下。打开机箱或增加或去除 任何热插拔组件之前，确保交流电线已拔下。 若非所需的确切类型，请勿尝试修改或使用交流电线。系统的每个电源供应设备都 需要一根单独的交流电线。 本产品的电源供应设备包含非用户维修部件。请勿打开电源供应设备。电源供应设 备包含非常危险的电压级、电流级和能量级。请与生产商联系维修事宜。 替换热插拔电源供应设备时，请先拔下需替换的电源供应设备上的电源线，再将其 从服务器上移除。 Intel® Server System SC5400RA User’s Guide...
  • Page 175 ⎯ 电源线的电气额定值须大于产品上标注的电流额定值。 ⎯ 电源线须拥有适合插座的安全接地插头或触点。 • 电源线为交流电源的主要断开设备。插座须靠近设备并可随时断开。 • 电源线须插入所提供的拥有合适接地的插座。 系统使用警告 注意事项 为避免人身伤害或财产损失，无论何时检查产品内部，以下安全指导都适用： • 关闭所有与本产品相连的外设。 • 按下电源按钮至关闭状态，关闭系统。 • 从系统或墙壁插座上拔下所有交流电线，断开交流电源。 • 断开与系统相连的所有线缆和通信线路。 • 卸除舱口盖时，保留所有螺钉及其他紧固件。完成产品内部检查之后，请 用螺钉或紧固件重新固定舱口盖。 • 请勿打开电源供应设备。电源供应设备内没有可维修部件。请与生产商联系 维修事宜. • 增加或替换任何非热插拔组件之前，请关闭服务器电源并断开所有电源线 。 • 替换热插拔电源供应设备时，请先拔下需替换的电源供应设备上的电源线 ，然后再从服务器上移除电源供应设备。 注意事项 如果服务器一直在运行，任何已安装的处理器和吸热设备都可能很热。除非要增加 或移除热插拔组件，否则请待系统冷却后再开盖。为避免在热插拔组件安装过程中 接触灼热组件，移除或安装热插拔组件时务须小心。 Intel® Server System SC5400RA User’s Guide...
  • Page 176 注意事项 为避免受伤，请勿触摸运转的风机叶片。如果系统的风机上配有防护装置，请勿卸 下风机防护装置运行系统。 机架固定件警告 设备的机架须固定在稳固的支座上，以防从中安装服务器或设备时倒塌。须按照机 架生产商提供的安装说明进行安装。 从下往上将设备安装在机架上，最重的设备安装在机架的最底层。 一次只从机架上安装一件设备。 您须负责安装整个机架装置的主要电源断开设备。此主要断开设备须随时可用，且 须标明为控制整个装置（而不仅限于服务器）的电源。 为避免潜在的电击危险，须对机架及其上所安装的每一件设备实行正确的安全接地 。 静电放电 (ESD) 注意事项 ESD 会损坏磁盘驱动器、主板及其他部件。我们建议您执行 ESD 工作站的所有步骤。如果没有 ESD 工作站，则采取一些静电放电保护措施，操作部件时，戴上与服务器上的机箱接地 或任何未喷漆金属表面连接的防静电腕带。 操作主板时始终保持小心。它们可能对 ESD 非常敏感。拿持主板时只接触边缘。从保护包装中或从服务器上取出主板后，请将 主板组件侧面朝上放置在无静电的接地表面上。请使用导电泡沫垫（若有），不要 使用主板包装。请勿将主板在任何表面上滑动。 Intel® Server System SC5400RA User’s Guide...
  • Page 177 其他危险 替换电池 注意事项 不正确替换电池可能导致爆炸危险。替换电池时，请只使用设备生产商推荐使用的 电池。 请按当地法规处置电池。 请勿对电池充电。 请勿拆卸、刺穿或以其他方式损坏电池。 冷却和气流 注意事项 按照说明小心布置线缆，尽量减少气流阻塞和冷却问题。 为保证适当的冷却和气流，运行系统时请确保机箱盖已安装。未安装机箱盖即运行 系统可能导致系统部件受损。安装机箱盖的步骤如下： 首先检查并确保系统内没有遗留的未固定工具或部件。 • 检查线缆、内插板和其他组件已正确安装。 • 按产品说明安装机箱盖。 • 激光外设或激光设备 注意事项 为避免幅射暴露和 / 或人身伤害： 请勿打开任何激光外设或激光设备的外壳 • 激光外设或激光设备为非用户维修设备 • 请与生产商联系维修事宜 Intel® Server System SC5400RA User’s Guide...
  • Page 178 Intel® Server System SC5400RA User’s Guide...

  • Page 179: Appendix C: Regulatory And Compliance Information

    (or higher) and operating at the same (or higher) speed as the microprocessor used on this server board. The final configuration of your end system product may require additional EMC compliance testing. For more information, please contact your local Intel representative.

  • Page 180: Product Regulatory Compliance References

    CSA 60950 - UL 60950 (Safety) Canada / USA Industry Canada CANADA ICES-003 CLASS A ICES-003 CANADA NMB-003 CLASSE A (Emissions) CFR 47, Part 15 (Emissions) China CNCA - CB4943 (Safety) GB 9254 (Emissions) GB17625 (Harmonics) Intel® Server System SC5400RA User’s Guide...
  • Page 181 CE Declaration of Conformity Germany GS Certification - EN60950 International CB Certification - None Required IEC60950 CISPR 22 / CISPR 24 Japan VCCI Certification Korea RRL Certification MIC Notice No. 1997-41 (EMC) & 1997-42 (EMI) Intel® Server System SC5400RA User’s Guide...
  • Page 182 Table 7. Product Regulatory Compliance Markings Compliance Regional Compliance Compliance Reference Marking Example Description Reference Russia GOST-R Certification GOST R 29216- 91 (Emissions) GOST R 50628- 95 (Immunity) Ukraine Ukraine None Required Certification Taiwan BSMI CNS13438 R33025 Intel® Server System SC5400RA User’s Guide...

  • Page 183: Electromagnetic Compatibility Notices

    TV reception. All cables used to connect to peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded may result in interference to radio and TV reception. Intel® Server System SC5400RA User’s Guide...

  • Page 184: Industry Canada (Ices-003)

    Install and use the equipment according to the instruction manual. BSMI (Taiwan) The BSMI Certification Marking and EMC warning is located on the outside rear area of the product. Intel® Server System SC5400RA User’s Guide...

  • Page 185: Korean Compliance (Rrl)

    The CCC Certification Marking and EMC warning is located on the outside rear area of the product. Product Ecology Compliance Intel has a system in place to restrict the use of banned substances in accordance with world wide product ecology regulatory requirements. The following is Intel's product ecology compliance criteria.

  • Page 186: Table 8. Product Ecology Compliance Markings

    Intel's Environmental Product Content Specification of Suppliers and Outsourced Manufacturers - http:// supplier.intel.com/ehs/environmental.htm Europe Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/ EC - Mark applied to system level products only. Intel® Server System SC5400RA User’s Guide...
  • Page 187 ISO11469. Recycling Markings - Fiberboard (FB) and Cardboard (CB) are marked with international recycling marks. Applied to outer bulk packaging and single package. Japan Japan Recycling Applied to Retail Packaging Only for Boxed Boards Intel® Server System SC5400RA User’s Guide...

  • Page 188: Other Markings

    本设备包括多条电源系统电缆。 为避免遭受电击， 在进行维修之前应断开两（2） 条电源系统电缆 Traditional Chinese 注意： 本設備包括多條電源系統電纜。 遭受電擊， 在進行維修之前應斷開兩（2） 條電源系統電纜 German: Dieses Geräte hat mehr als ein Stromkabel. Um eine Gefahr des elektrischen Schlages zu verringern trennen sie beide (2) Stromkabeln bevor Instandhaltung Intel® Server System SC5400RA User’s Guide...

  • Page 189: Regulated Specified Components

    Updated product information for configurations can be found on the Intel Server Builder Web site at the following URL: http://channel.intel.com/go/serverbuilder If you do not have access to Intel's Web address, please contact your local Intel representative. •...

  • Page 190: End-Of-Life / Product Recycling

    End-of-Life / Product Recycling Product recycling and end-of-life take-back systems and requirements vary by country. Contact the retailer or distributor of this product for information about product recycling and / or take-back. Intel® Server System SC5400RA User’s Guide...

  • Page 191: Appendix D: Getting Help

    Telephone All calls are billed US $25.00 per incident, levied in local currency at the applicable credit card exchange rate plus applicable taxes. (Intel reserves the right to change the pricing for telephone support at any time without notice). ®...

  • Page 192: Latin America

    Chile Easter Island....Contact AT&T USA at 800 800 311. Once connected, dial 800 843 4481 Mainland and Juan .. Contact AT&T USA at 800 225 288. Once connected, dial 800 843 4481 Intel® Server System SC5400RA User’s Guide...
  • Page 193 Panama..Contact AT&T USA at 00 800 001 0109. Once connected, dial 800 843 4481 Paraguay ... 001 916 377 0114 Peru ... 001 916 377 0114 Uruguay..001 916 377 0114 Venezuela... Contact AT&T USA at 0 800 2255 288. Once connected, dial 800 843 4481 Intel® Server System SC5400RA User’s Guide...
  • Page 194 Intel® Server System SC5400RA User’s Guide...

  • Page 195: Appendix E: Warranty

    "as is" unless specifically provided for otherwise in any software license accompanying the software. If any Product furnished by Intel which is the subject of this Limited Warranty fails during the warranty period for reasons covered by this Limited Warranty, Intel, at its option, will: •...

  • Page 196: Extent Of Limited Warranty

    Limitations of Liability Intel's responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement, or refund, as set forth above. These remedies are the sole and exclusive remedies for any breach of warranty.

  • Page 197: How To Obtain Warranty Service

    Telephone Support If you cannot find the information you need on Intel's World Wide Web site (http:// www.intel.com/), call your local distributor or an Intel Customer Support representative.
  • Page 198 Intel® Server System SC5400RA User’s Guide...

Table of Contents
