Wide SCSI

34
68

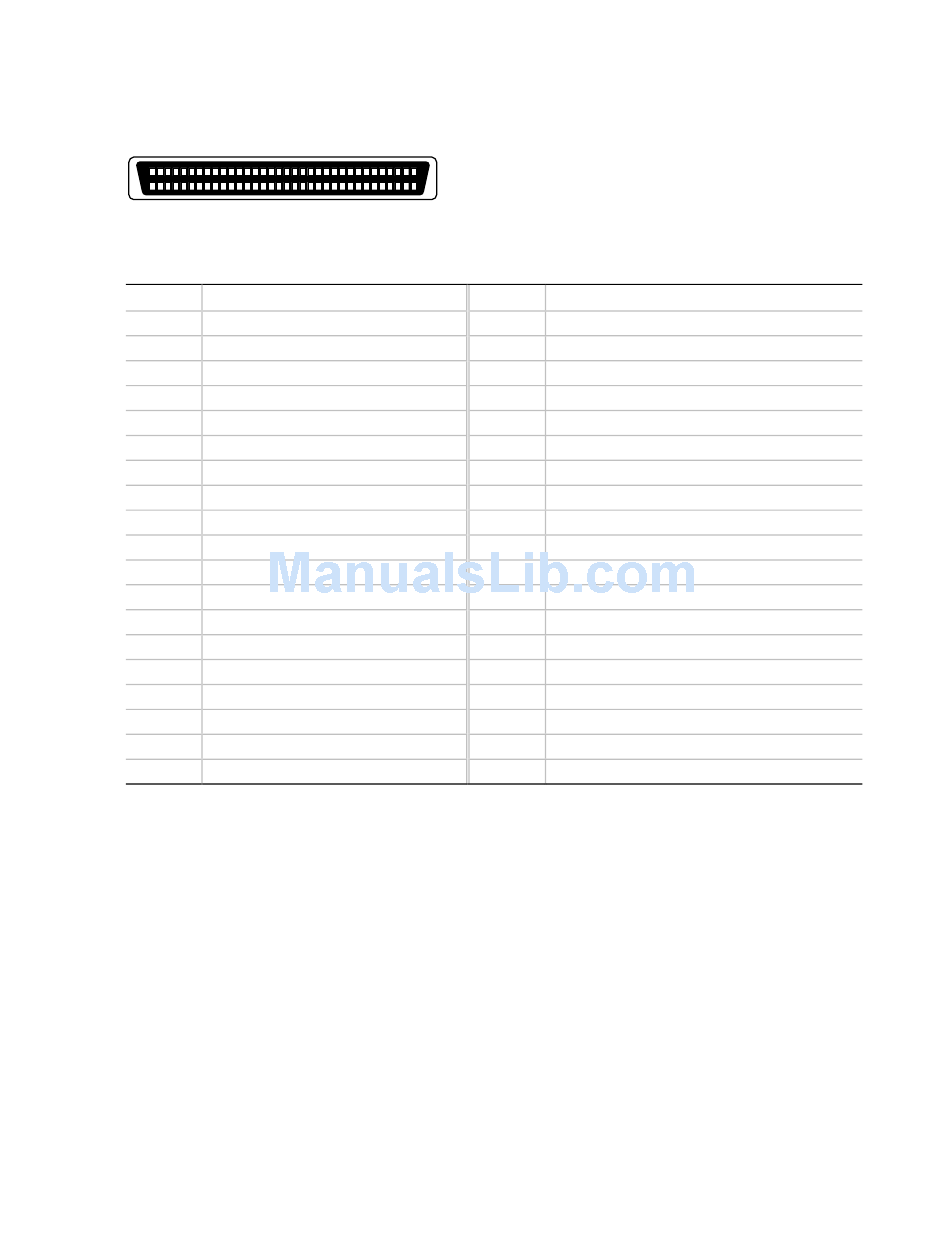

Table 45. Wide SCSI Connector Pinout
Pin Signal
1-16 GND
17 TERMPWR
18 TERMPWR
19 Reserved
20-34 GND
35 DB12_L
36 DB13_L
37 DB14_L
38 DB15_L
39 DBP1_L
40 DB0_L
41 DB1_L
42 DB2_L
43 DB3_L
44 DB4_L
45 DB5_L
46 DB6_L
47 DB7_L
48 DBP _L
1
35
OM08027
Pin Signal
49-50 GND
51 TERMPWR
52 TERMPWR
53 Reserved
54 GND
55 ATN_L
56 GND
57 BSY_L
58 ACK_L
59 RST_L
60 MSG_L
61 SEL_L
62 C/D_L
63 REQ_L
64 I/O_L
65 DB8_L
66 DB9_L
67 DB10_L
68 DB11_L
147
