9. Gently push the drive into the bay. To engage the latch, the carrier handle should be
approximately at a 45 angle from the vertical front of the chassis. As you push the drive into
the bay, the two rounded notches in the carrier handle (B in Figure 20) slide onto the two
round pegs inside the drive bay (A in Figure 20). When they engage, push the handle straight
up (C in Figure 20) to lock the notches onto the pegs and press the rounded tab on the right of
the carrier to the left until it clears the edge of the bay and snaps into place.
10. Close the metal door, and secure it to the chassis with the plastic latch.
11. For security and to prevent unauthorized access to the bays, insert a padlock through the
metal loop protruding through the door.
12. Close the front bezel.

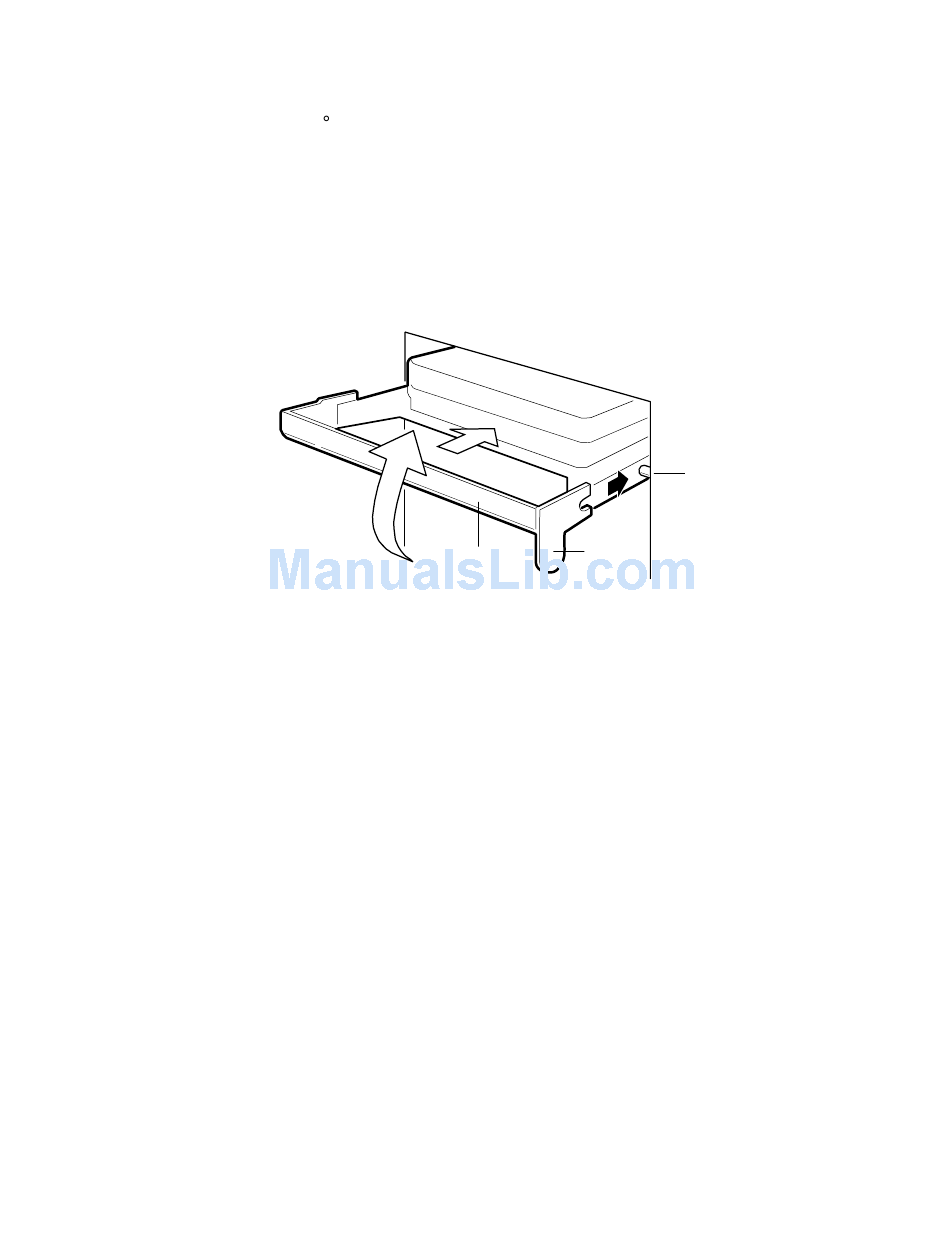

A.
Round peg inside drive bay
B.
Round notches on carrier handle (must fit over pegs in drive bay)
C. Carrier handle
C
Figure 20. Installing a New Drive
A
B
OM08042
81
