NOTE
The two installed fans nearest the 5.25-inch drive bays (fans 6 and 7 in
Figure 34) are separated by a square piece of foam (the piece with a
crescent-shaped hole) that extends perpendicularly from the front of the fans
(in Figure 34, it is the rectangle between the round faces of fans 6 and 7).
You must remove this piece to access the two fans it separates (pull it
straight out).
1
2
3
4
5
6
7
8
104
1
2
3
4
5
6
7
1
8

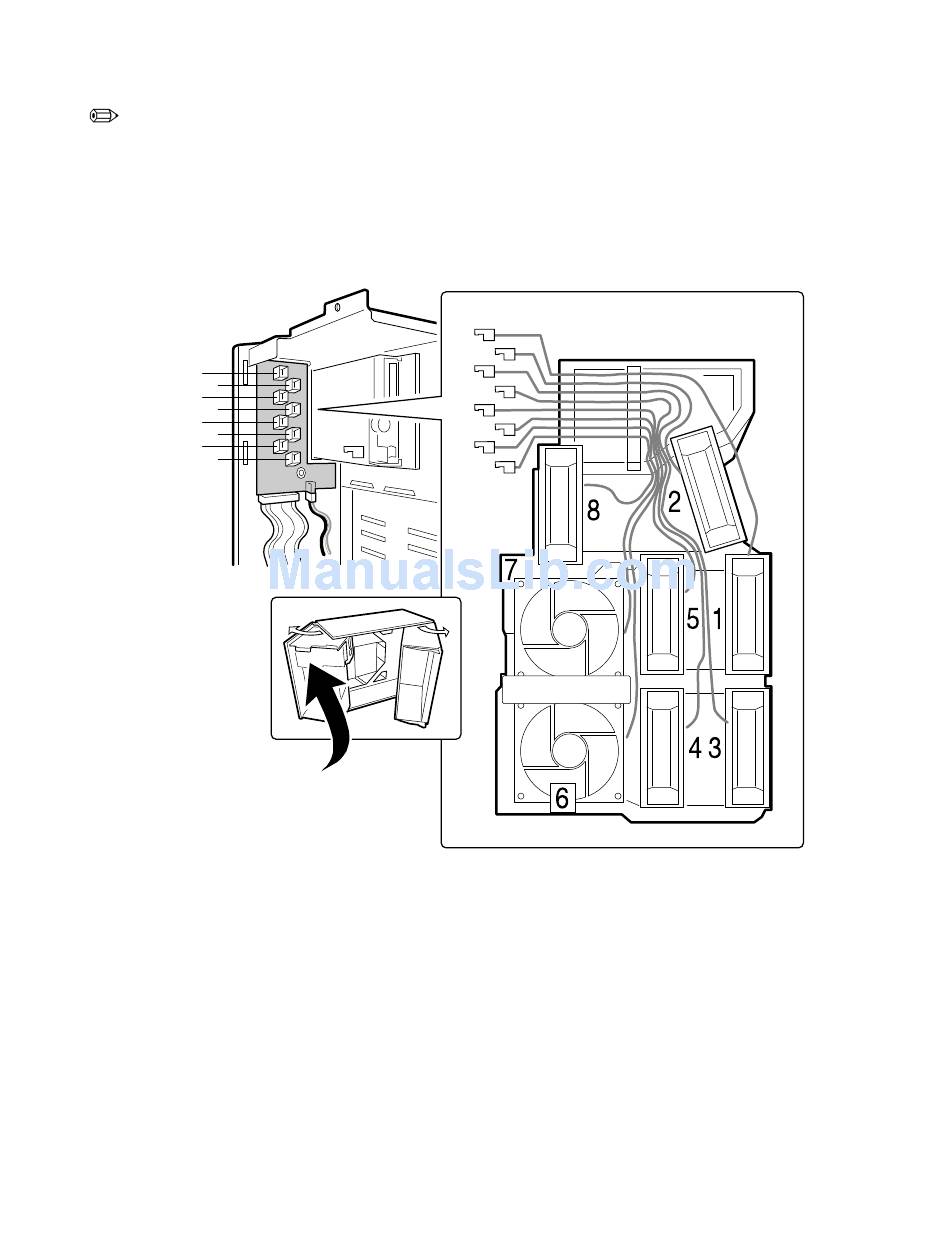

Figure 34. Fan Cabling
OM08021a
