SCSI Hot-docking Backplane Connectors

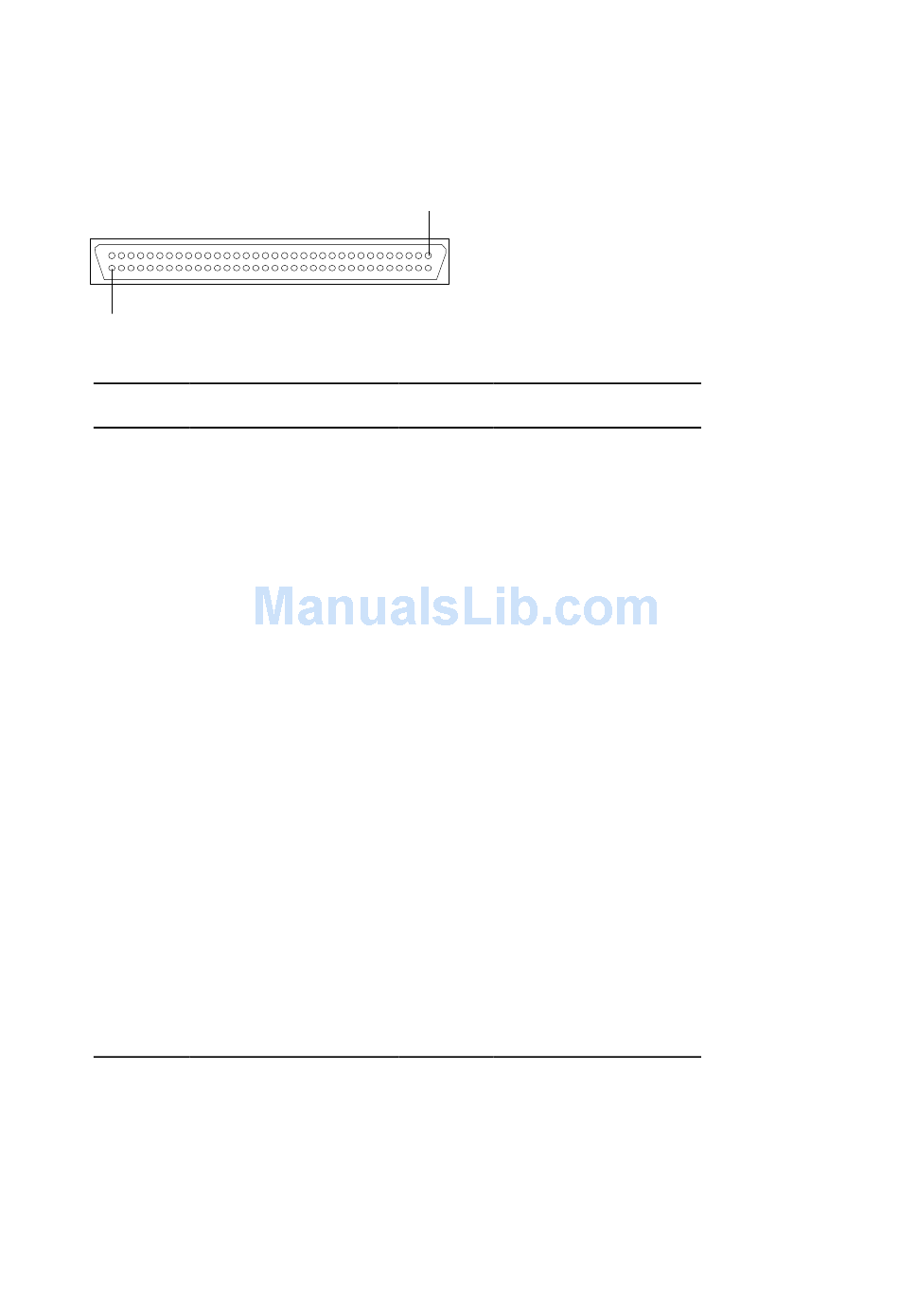

Wide/Fast SCSI 16-Bit Connector

68
Pin
1-16
17
18
19
20-34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
M440FX Server System Product Guide
Signal
GND (ground)
TERMPWR
TERMPWR
RESERVED
GND (ground)
DB 12_L
DB 13_L
DB 14_L
DB 15_L
DB P1_L
DB 0_L
DB 1_L
DB 2_L
DB 3_L
DB 4_L
DB 5_L
DB 6_L
DB 7_L
DB P_L
1
OM03878
Pin Signal
49-50 GND (ground)
51 TERMPWR
52 TERMPWR
53 RESERVED
54 GND (ground)
55 ATN_L
56 GND (ground)
57 BSY_L
58 ACK_L
59 RST_L
60 MSG_L
61 SEL_L
62 CD_L
63 REQ_L
64 I/O_L
65 DB 8_L
66 DB 9_L
67 DB 10_L
68 DB 11_L
143
