Figure 42. Cmos Battery Location - Intel MFS5000SI - Multi-Flex Server Compute Module User Manual

4. Locate the DMOS battery (see letter "A" in the following figure).
5. Insert the tip of a small flat-head screwdriver, or equivalent, under the tab in the
plastic retainer. Gently push down on the screwdriver to lift the battery.
6. Remove the battery from its socket.
7. Dispose of the battery according to local ordinance.
8. Remove the new lithium battery from its package, and, being careful to observe the
correct polarity, insert it in the battery socket.
9. Replace the top cover. For instructions, see
on page
10. Reinstall the server compute blade in the server system. For instructions, see
"Installing a Compute Module into the Server System" on page 8
11. Run Setup to restore the configuration settings to the RTC.
40
A

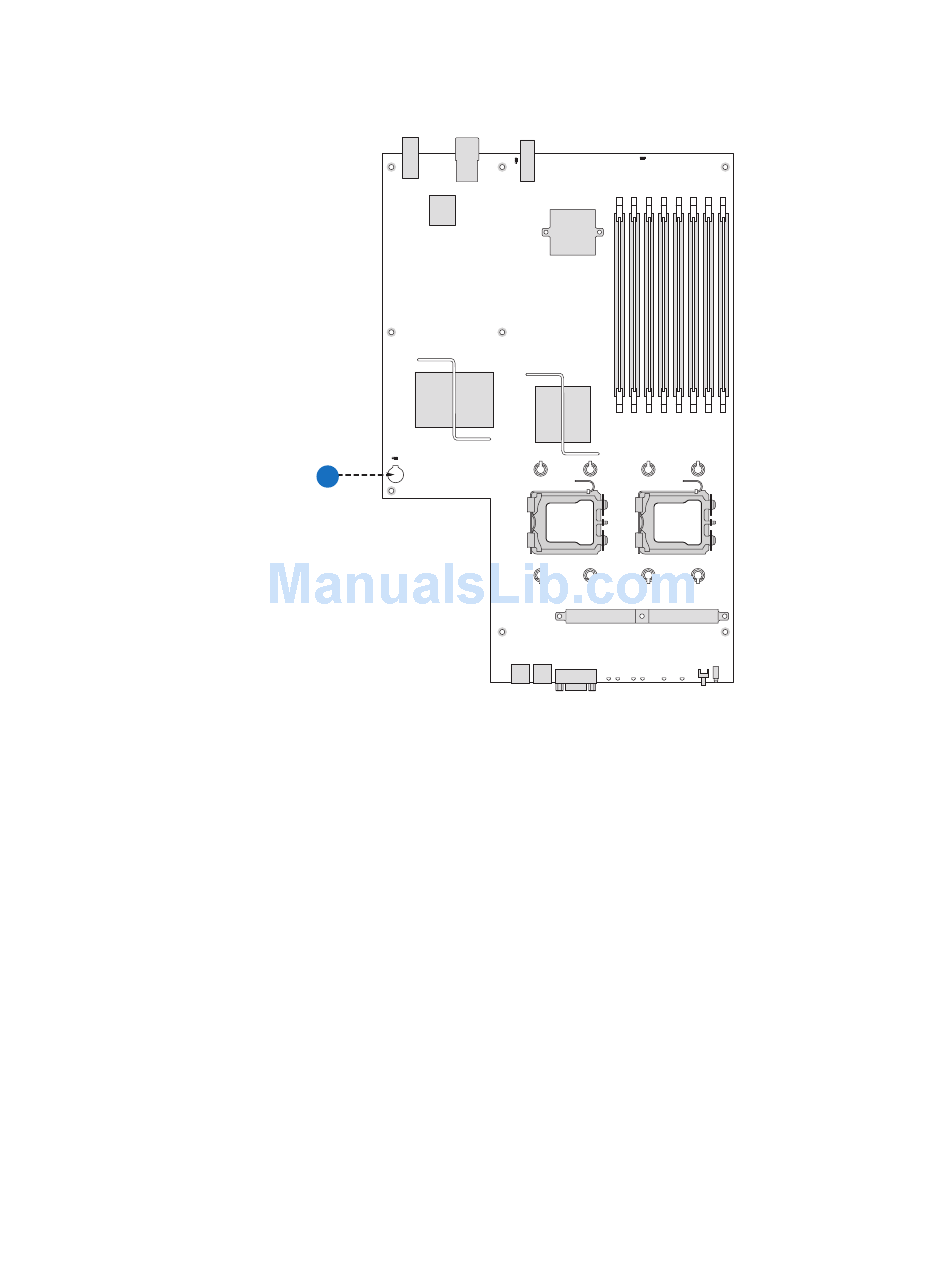

Figure 42. CMOS Battery Location

10.
AF002455
"Replacing and Closing the Top Cover"
Intel® Compute Module MFS5000SI User Guide
