15. Reinstall the processor air duct.
16. Reinstall the top cover. For instructions, see
on page
17. Reinstall the server compute blade in the server system. For instructions, see
"Installing a Compute Module into the Server System" on page
Intel® Compute Module MFS5000SI User Guide
1
I/ O
2
1
2
ID

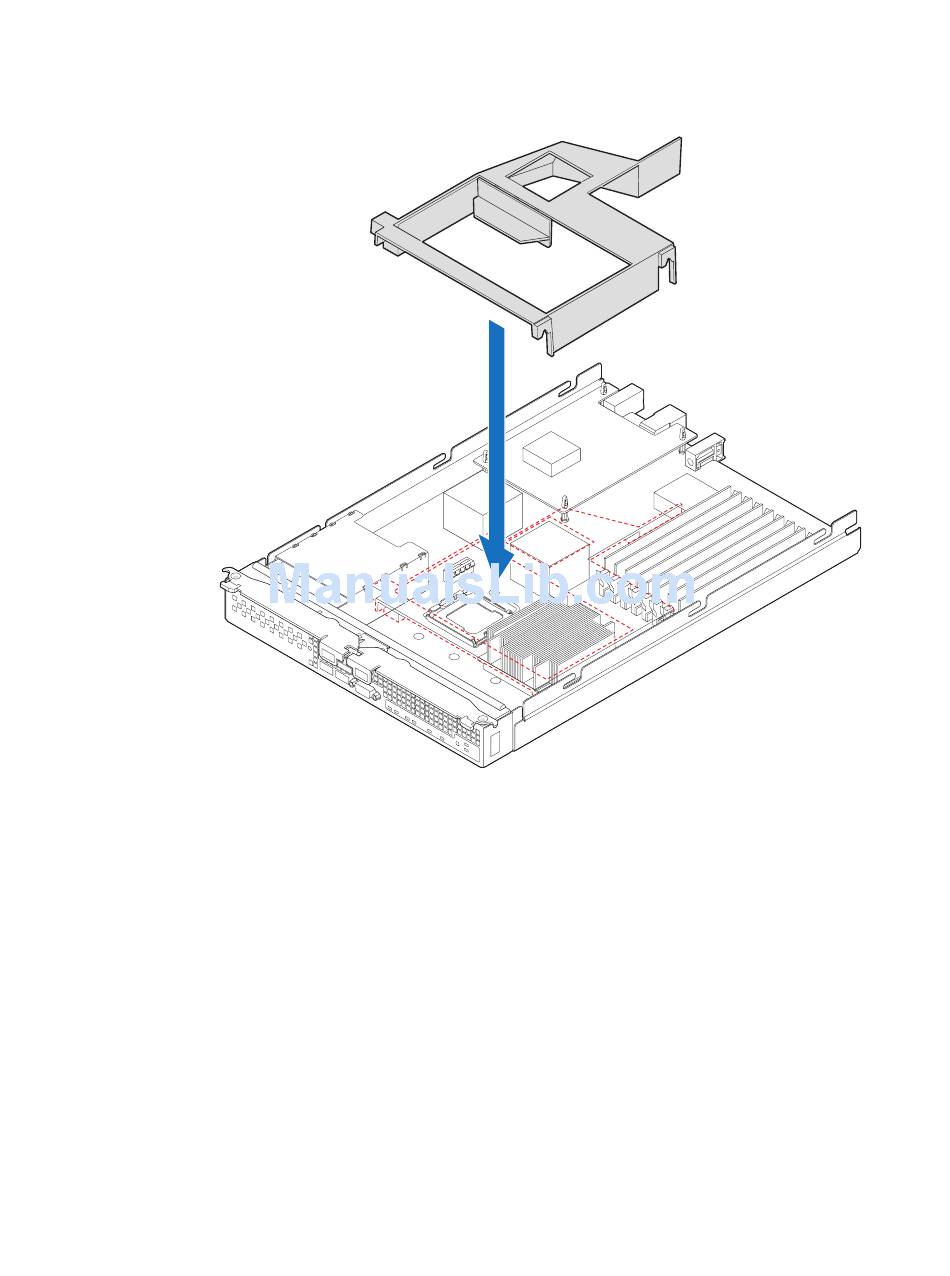

Figure 17. Reinstalling Processor Air Duct
10.
"Replacing and Closing the Top Cover"
8.
AF002405
17
