13. Press firmly on the captive screws and tighten them, alternating between screws in a
diagonal manner (see tightening order in the following figure). Do not over-tighten
the screws by using excessive force.
3
2
1
4
TP02328

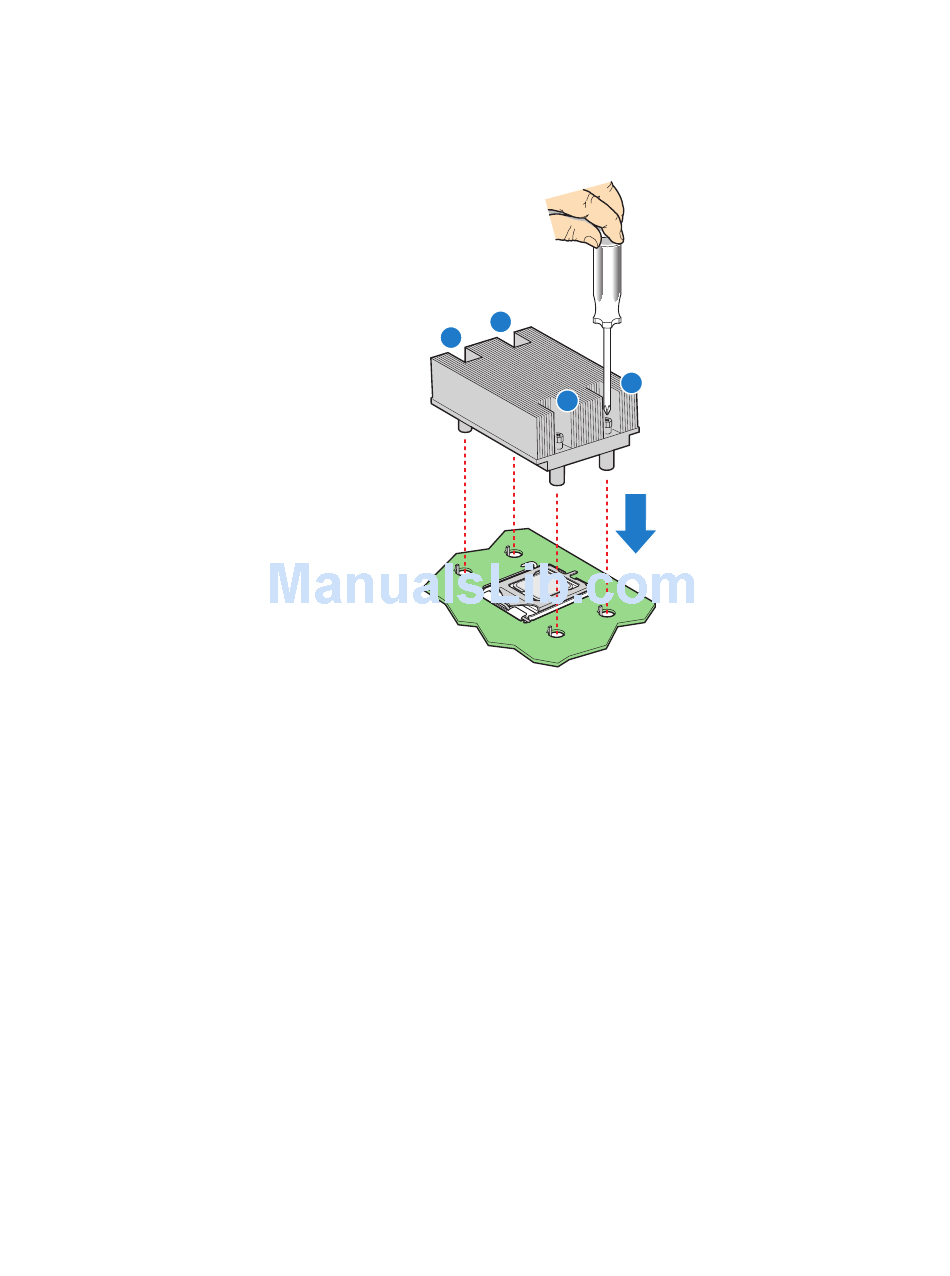

Figure 15. Installing Heatsink
Intel® Compute Module MFS5000SI User Guide
15
