Removing DIMMs

To remove DIMMs:
1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a server system, see
Module from the Server System" on page 7
3. Remove the top cover. For instructions, see
on page
4. Remove the processor air duct.
Intel® Compute Module MFS5000SI User Guide
8.
1
I/ O
2
1
2
ID

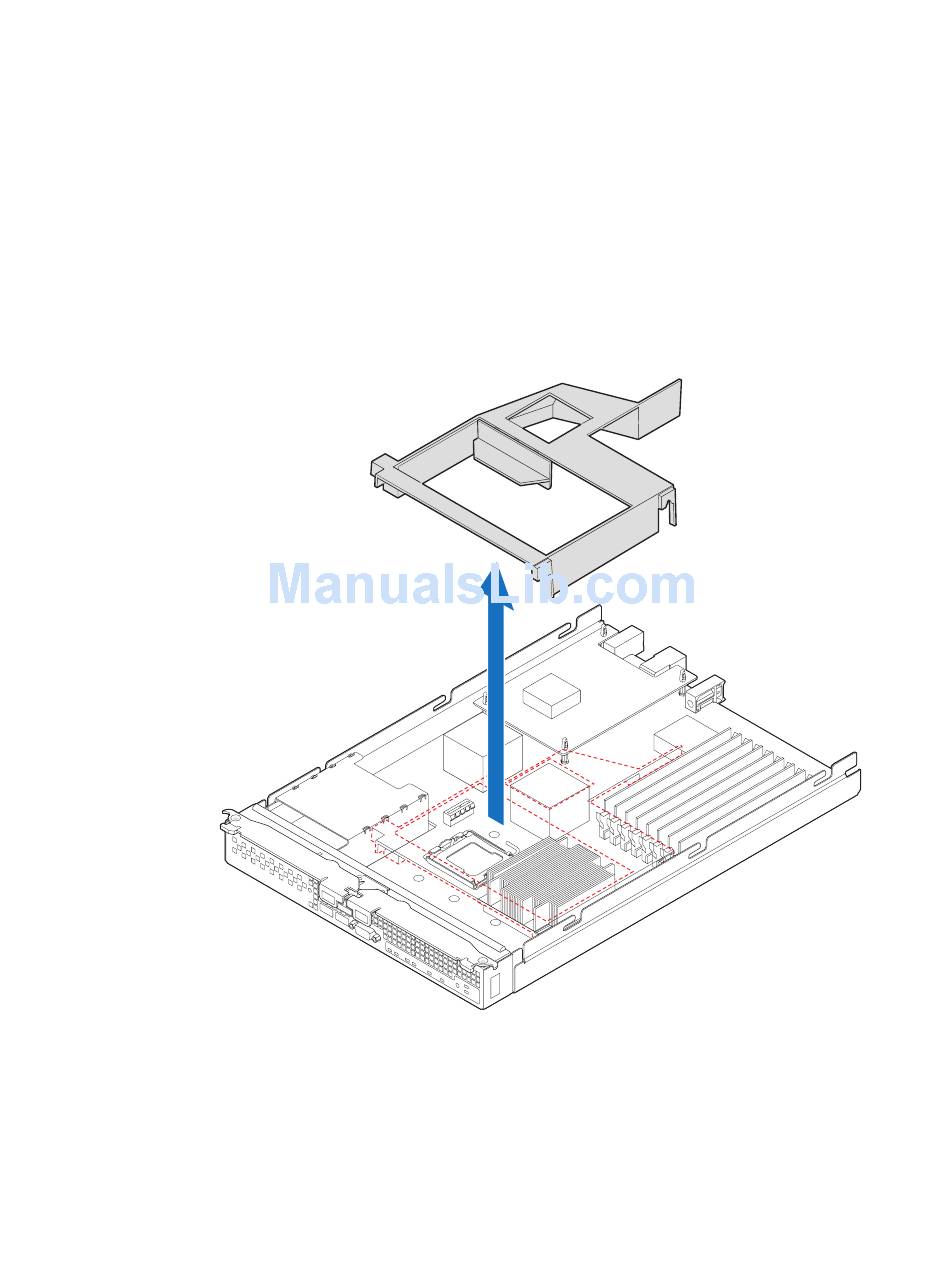

Figure 32. Removing Processor Air Duct

"Removing a Compute
for removal instructions.
"Opening and Removing the Top Cover"
AF002404
29
