14. If you are installing a second processor then the second processor air baffle must be
removed to ensure proper cooling for two processors.
Caution:
Remove the second processor air baffle by rocking the air baffle back and forth until it
breaks off (see letter "A" in the following figure).
16
This step only applies if your system has TWO processors. For a one-
processor configuration, the second processor air baffle must remain in
place to ensure proper cooling.

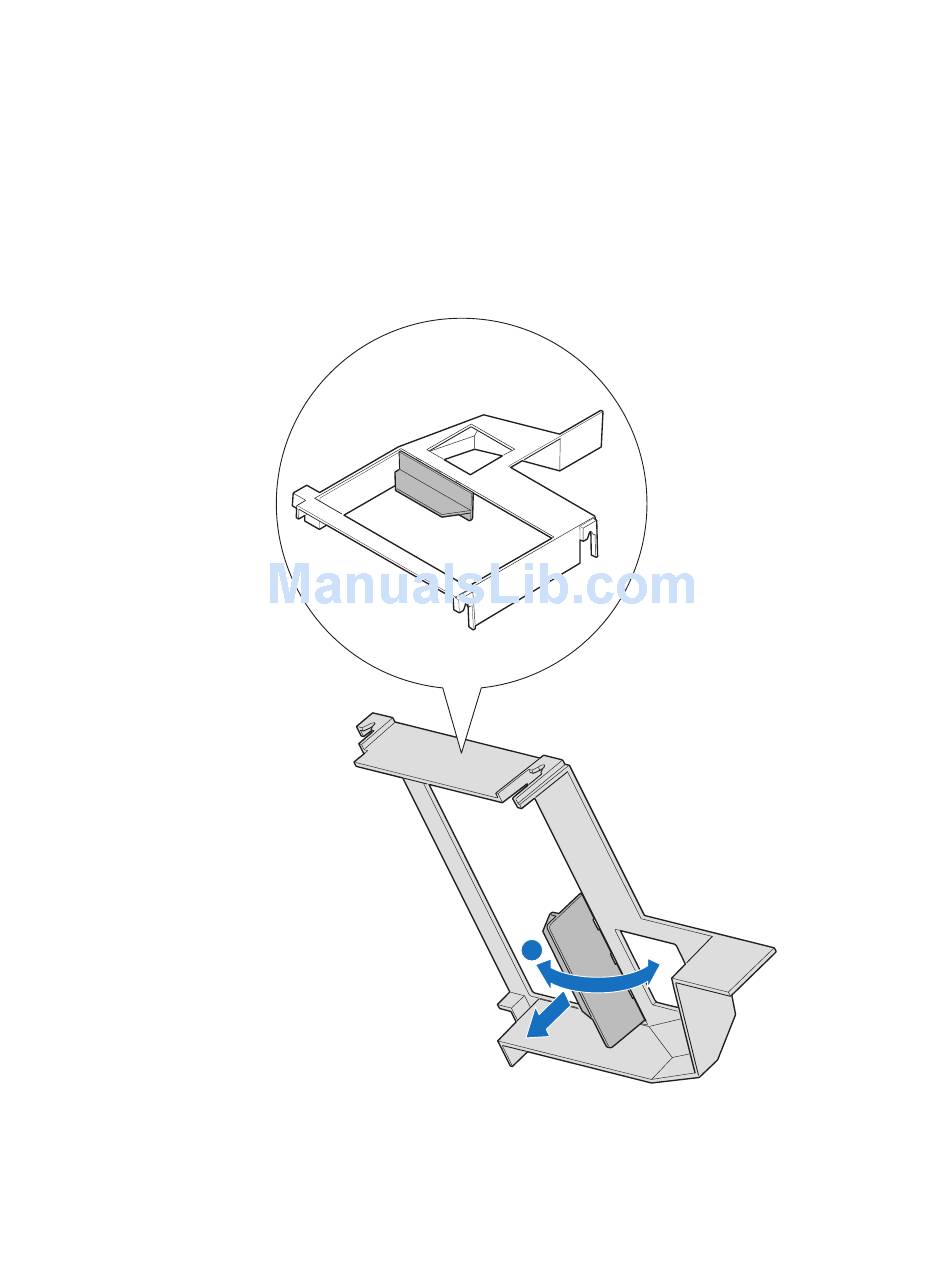

Figure 16. Removing Second Processor Air Baffle
A
Intel® Compute Module MFS5000SI User Guide
AF002410
