Installing and Removing Mezzanine Card

Installing the Mezzanine Card

1. Observe the safety and ESD information at the beginning of this manual and in the
appendices.
2. If the compute module is installed in a server system, see
Module from the Server System" on page 7
3. Remove the top cover. For instructions, see
on page
4. Holding the mezzanine card by its edges, remove it from the packaging. Remove the
protective connector cover from the mezzanine card.
5. Locate the mezzanine card socket on the server board.
6. With a Phillips* screwdriver, remove four screws from the server board.
32
8.
1
1
I/ O I/ O
2 2
1 1
2
2
ID ID

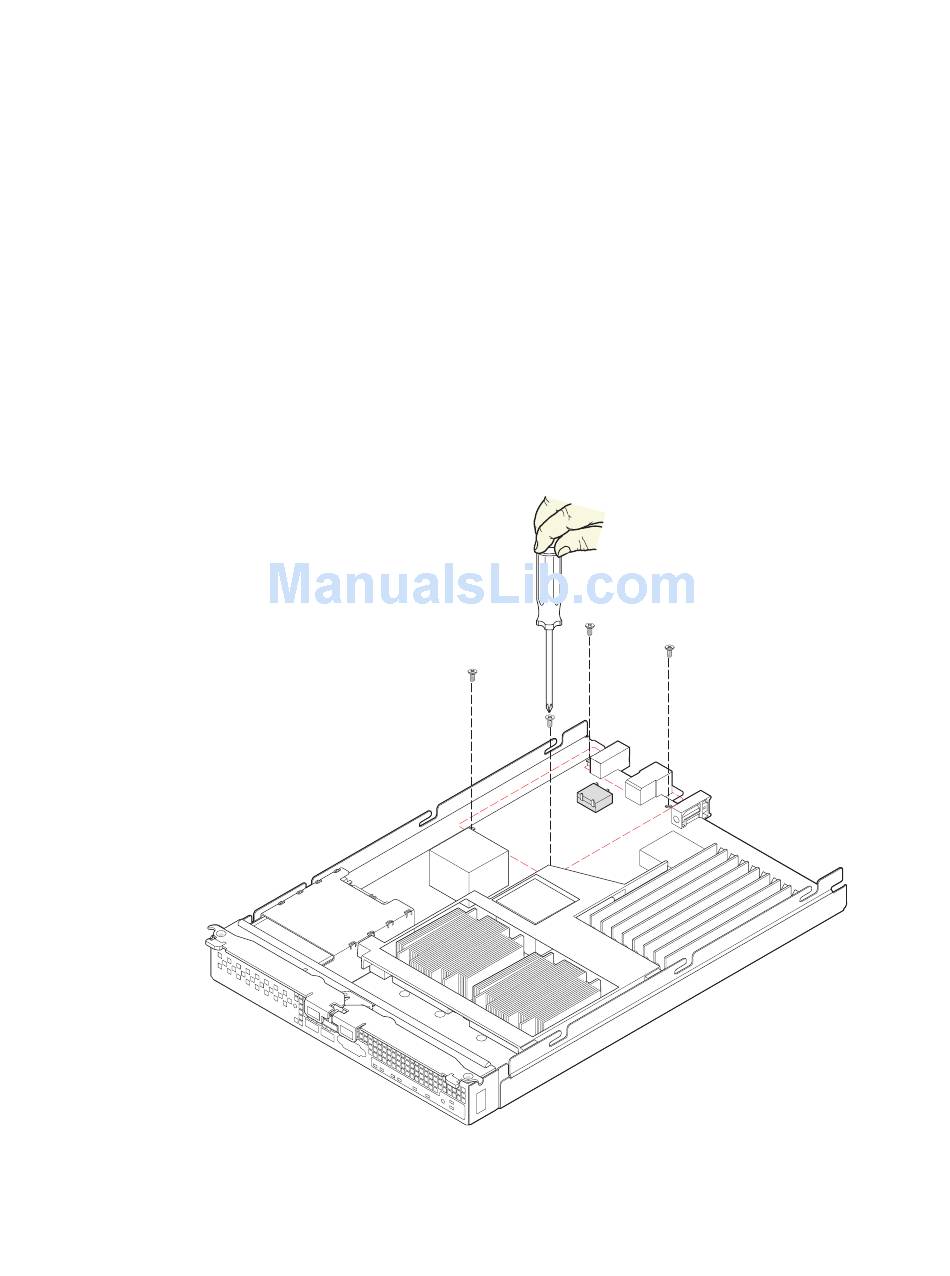

Figure 35. Removing Screws from Server Board

"Removing a Compute
for removal instructions.
"Opening and Removing the Top Cover"
Intel® Compute Module MFS5000SI User Guide
AF002456
