Figure 26. Re-Installing Heatsink - Intel MFS5000SI - Multi-Flex Server Compute Module User Manual

12. Ensure that the thermal material is still intact on the bottom of the heatsink.
13. Align the heatsink over the processor, thermal material side down, with the captive
screws in line with the holes on the heatsink retention module. Press down firmly on
the heatsink.
14. Press firmly on the captive screws and tighten them, alternating between screws in a
diagonal manner (see tightening order in the following figure). Do not over-tighten
the screws by using excessive force.
22
3
2
4

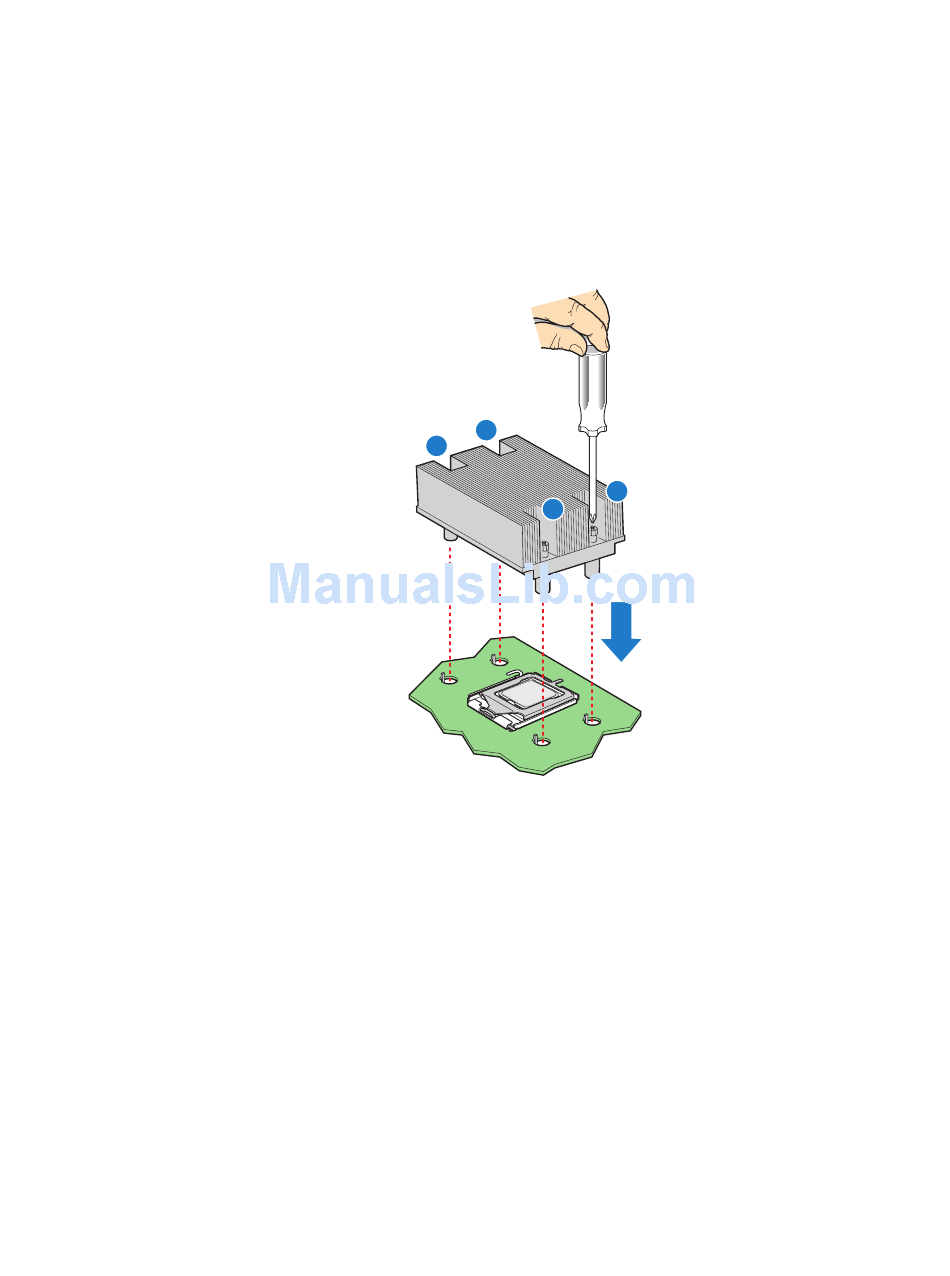

Figure 26. Re-installing Heatsink

Intel® Compute Module MFS5000SI User Guide
1
TP02328
