Replacing and Closing the Top Cover

1. Observe the safety and ESD information at the beginning of this manual and in the
appendices
2. Place the top cover on the compute module so that it engages the cover guide notches.
Note: Before closing the top cover, check that all components are installed and
Slide the top cover forward to the closed position until the retention latch fully
engages.
10
seated correctly and that no loose tools or parts are inside the compute
module.
1
I/ O
2
1
2
ID

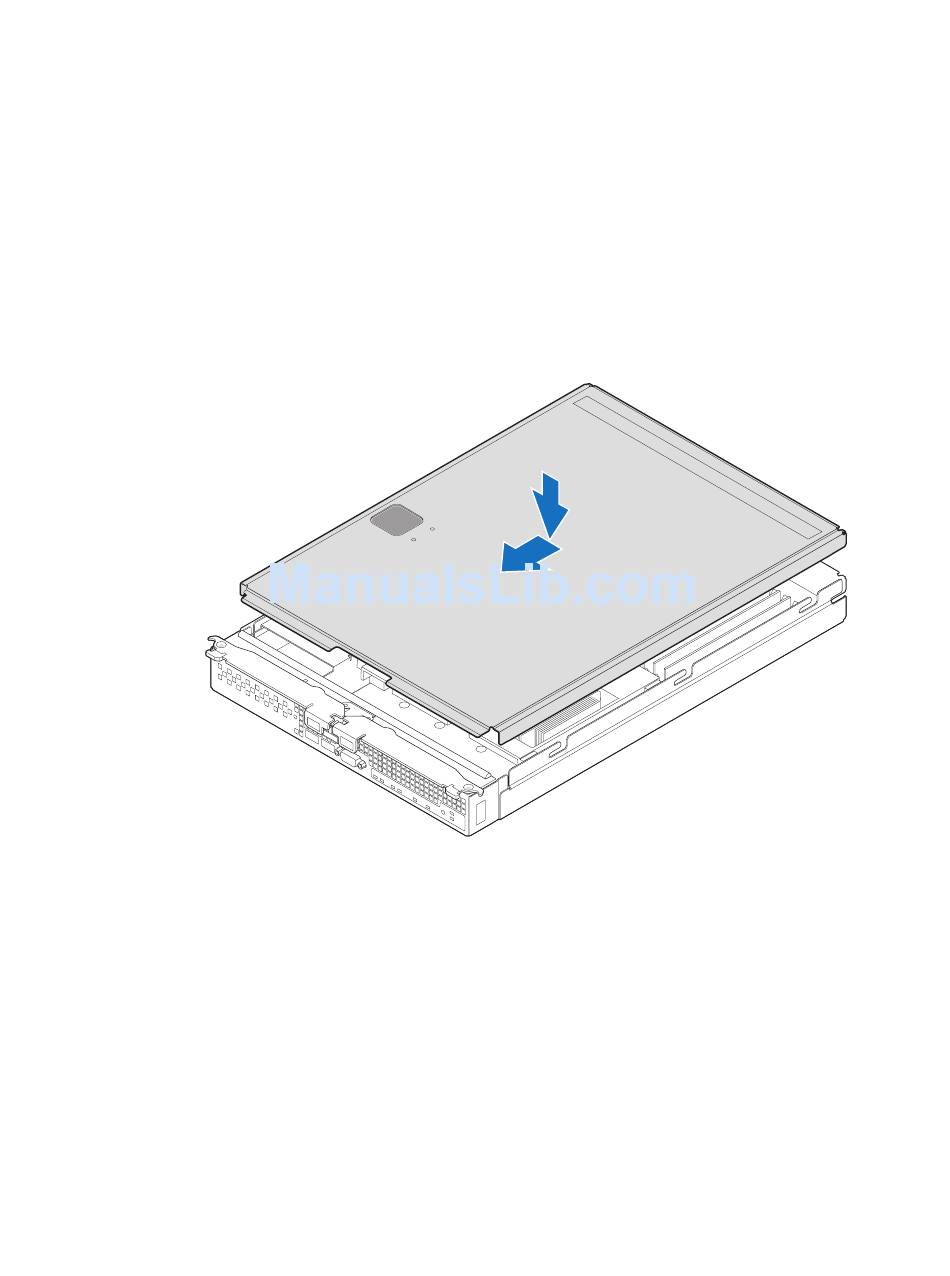

Figure 7. Installing Top Cover

Intel® Compute Module MFS5000SI User Guide
AF002403
