7. If present, remove the protective shipping cover from the processor.
8. Orient the processor with the processor socket so that the processor cut-outs match the
socket notches (see letter "A" in the following figure). Install the processor (see letter
"B").
Caution:
Intel® Compute Module MFS5000SI User Guide

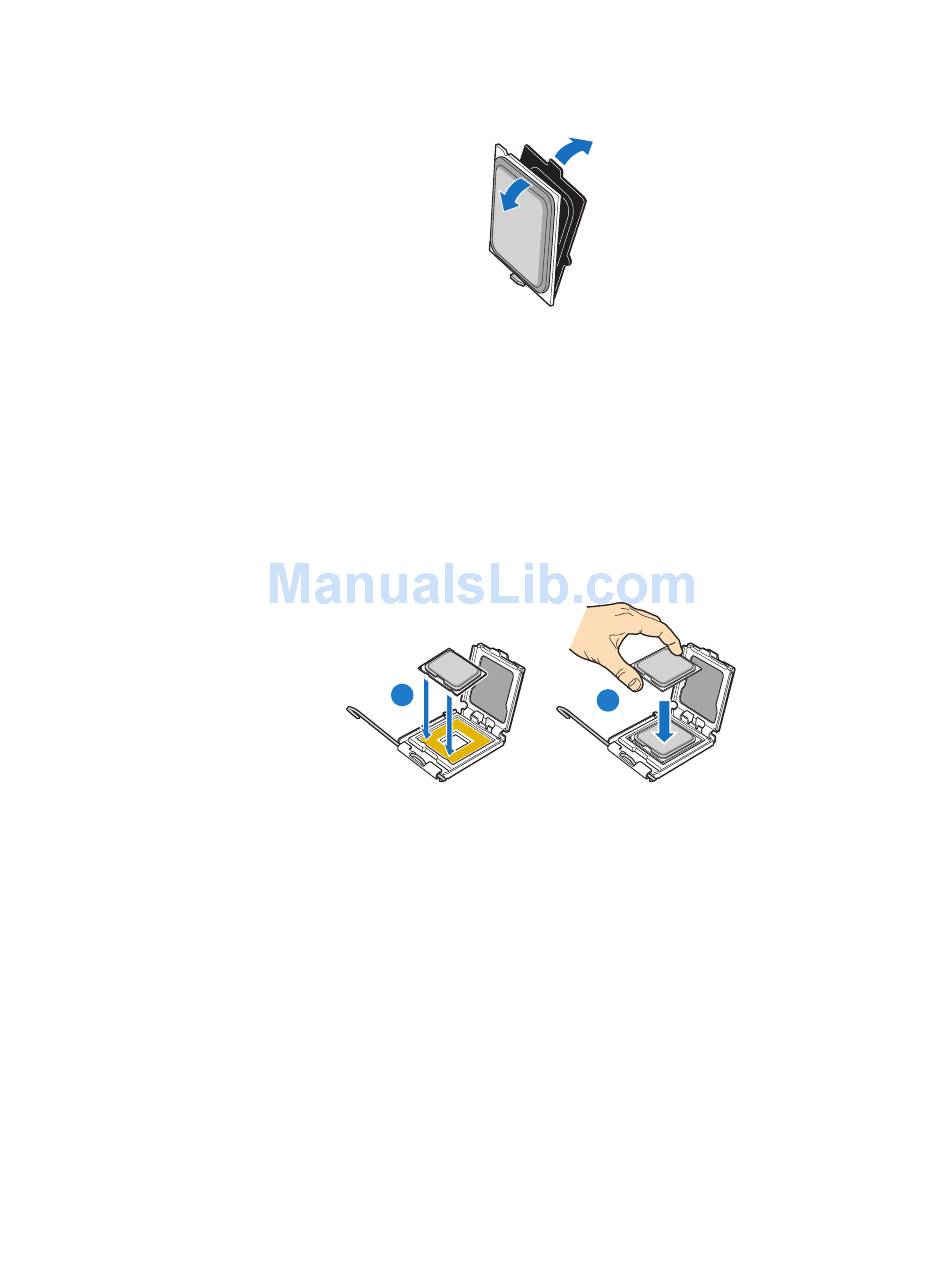

Figure 11. Removing Protective Shipping Cover

The underside of the processor has components that may damage the
socket pins if installed improperly. Processor must align correctly with
socket opening before installation. DO NOT DROP processor into socket.
A

Figure 12. Orienting and Installing Processor

AF002222
B
AF002223
