Chapter 3 Installing the IPS 4260

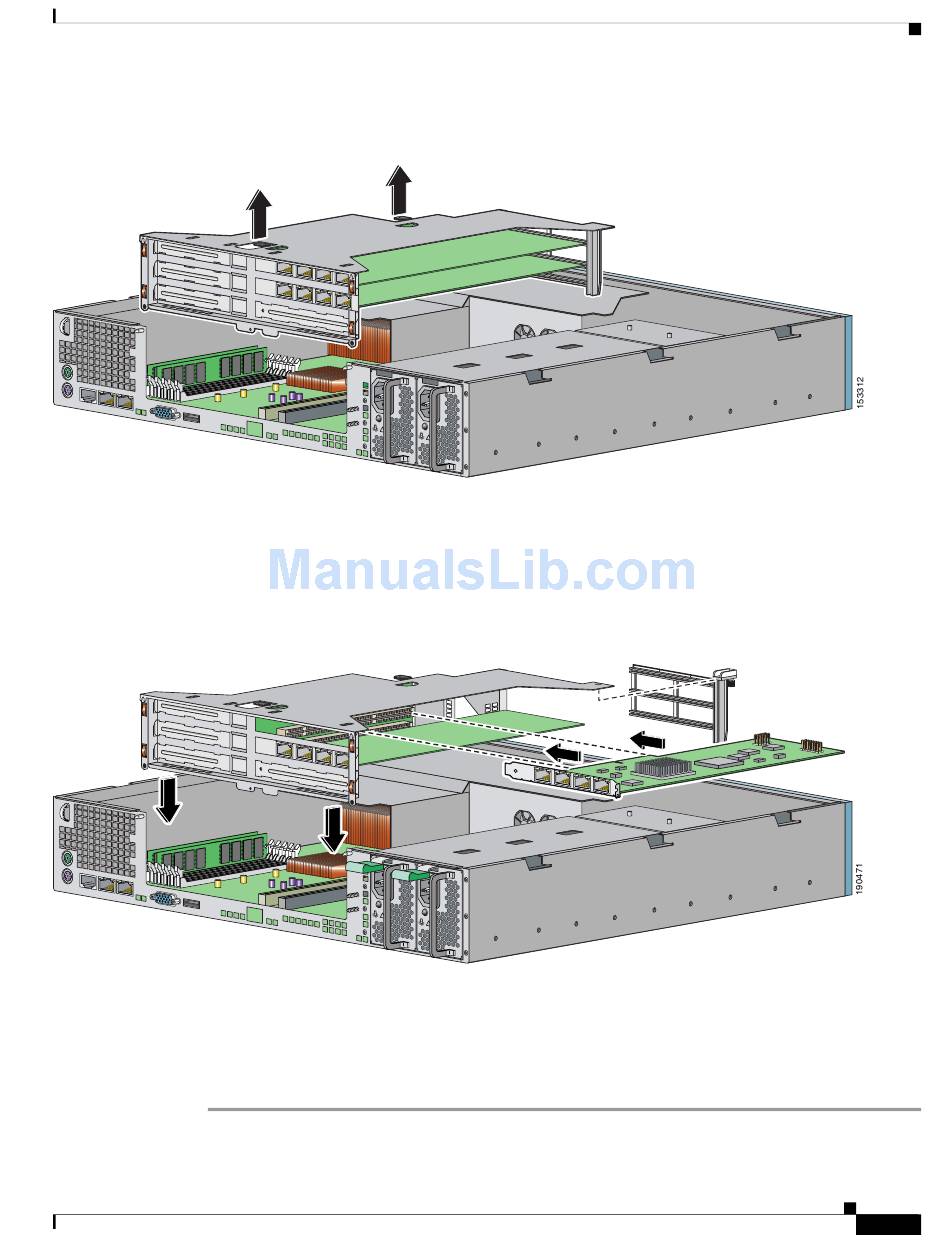

Remove the card carrier by pulling up on the two blue release tabs. Use equal pressure and lift the card
Step 8
carrier out of the chassis.
With a screw driver, remove the screw from the desired slot cover.
Step 9
Step 10 Remove the slot cover by pressing on it from inside the chassis.
If the card is full length, use a screw driver to remove the blue thumb screw from the card support at the
back of the card carrier.
Step 11 Carefully align the interface card with the PCI-Express connector and alignment grooves for the
appropriate slot. Apply firm even pressure until the card is fully seated in the connector.
Reinstall the slot cover screw to hold the card to the carrier. If necessary, reinstall the card support at the
Step 12
back of the card carrier.
Step 13 Replace the card carrier in the chassis.
Step 14 Replace the chassis cover.
OL-18504-01
!
!
!
!
Cisco Intrusion Prevention System Appliance and Module Installation Guide for IPS 7.0
Installing and Removing Interface Cards
3-21
