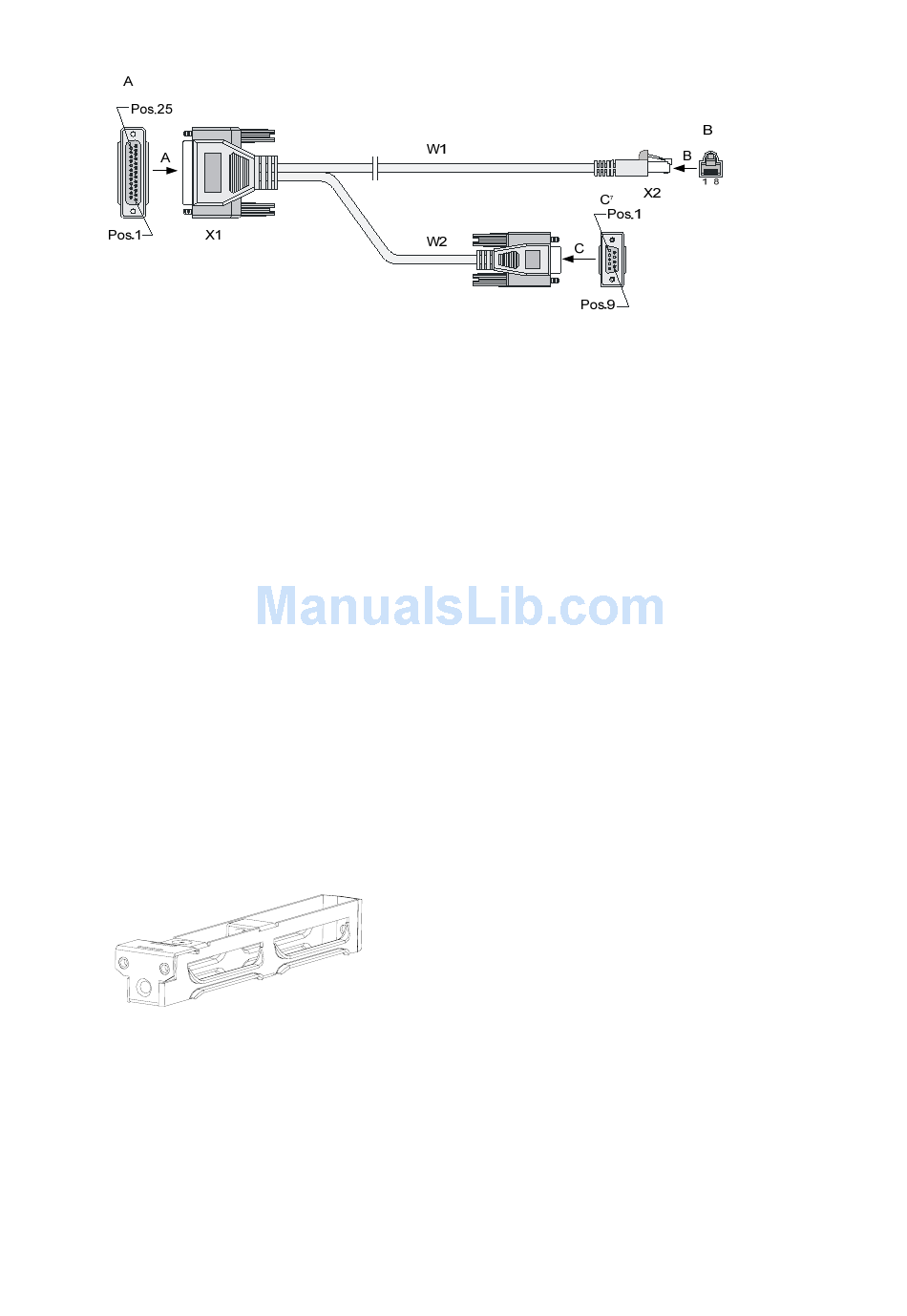

Figure 3-14 AUX cable

Connecting the AUX cable

Follow these steps to connect the AUX cable.

Step 1: Plug the RJ-45 connector of the cable into the AUX port on the main board.

Step 2: Plug the DB-25 or DB-9 connector into the serial port on the analog modem.

When using the AUX interface for remote configuration or dial backup, you need to connect the local

modem to the remote modem through PSTN and then to the remote device. For the configuration

procedures, refer to MSR Series Routers User Manual.

Interface Card Module

The MSR 30 Series Routers support various types of interface card modules. For detailed information,

refer to MSR Series Routers Interface Card and Interface Module Manual.

SIC slide rail

Figure 3-15 SIC slide rail
