LED
CF card LED:
Steady green means the CF card is in place and can be identified by the router.
CF Blinking green means the CF card is being accessed and must not be removed.
Steady yellow means the CF card is in place but cannot be identified by the router.
OFF means no CF card is inserted or the CF card cannot be identified.
Table 1-8 Rear panel LEDs of MSR 30-16 Router
LED
OFF means no link is present.
LINK
ON means a link connection is established.
OFF means no data is being received or sent.
ACT
ON means data is being received or sent.
OFF means no ESM is in the ESM slot.
Solid green means an ESM is in the ESM slot and operates normally.
ESM0 to 1
Blinking green means the ESM is processing data.
Solid yellow means an ESM is in the ESM slot but does not operate normally.
OFF means VCPM is not in the slot.
VCPM Steady green means a VCPM is in the slot and operates normally.
Steady yellow means a VCPM is in the slot but does not operate normally.
OFF means no VPM is in the VPMx slot.
VPM0 to 1 Steady green means a VPM is in the VPMx slot and operates normally.
Steady yellow means a VPM is in the VPMx slot but does not operate normally.

MSR 30-20 Router

Appearance
1) Front view

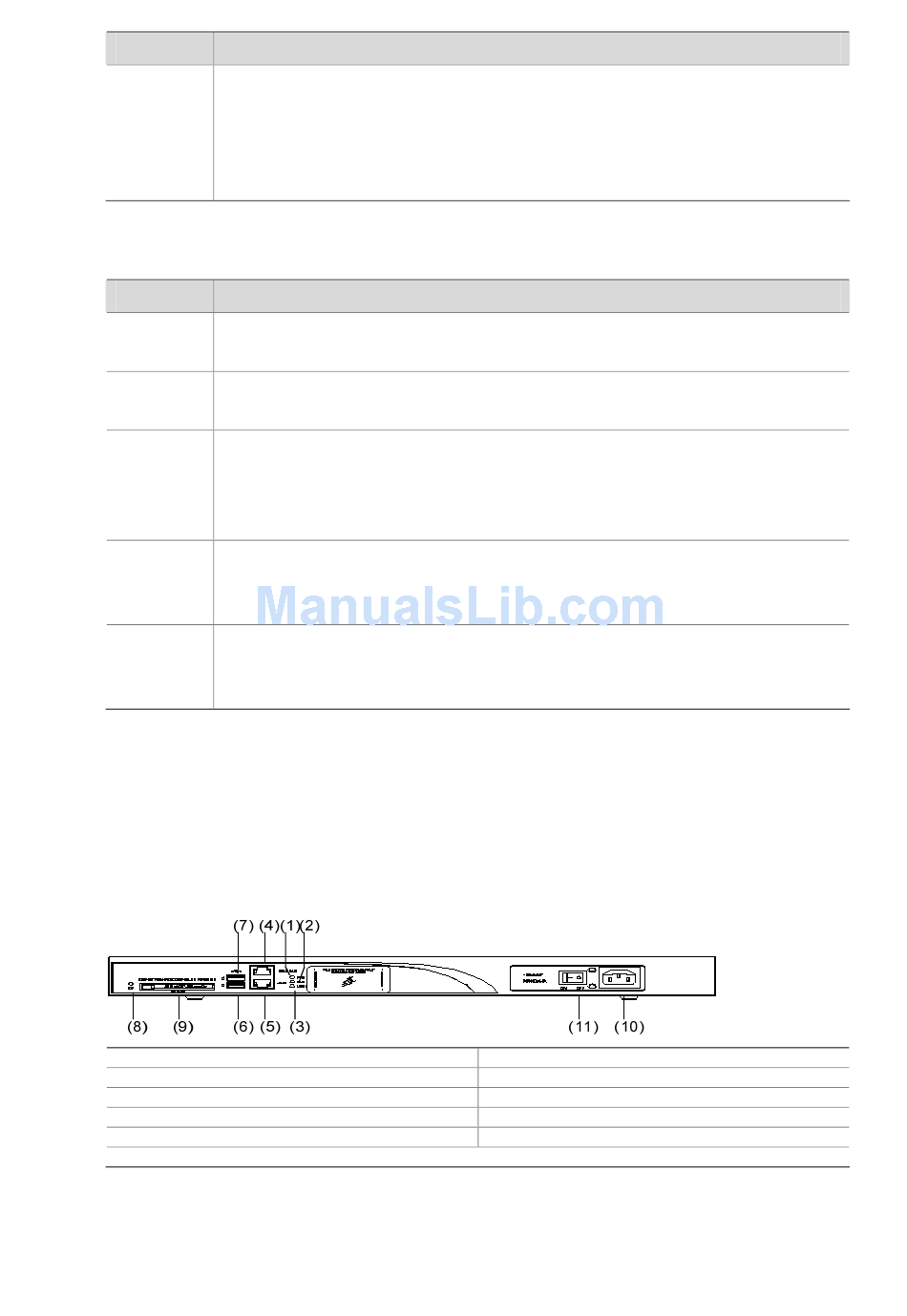

Figure 1-5 Front view of MSR 30-20
(1) Power LED (PWR)
(3) USB LED
(5) Auxiliary port (AUX)
(7) USB interface 1
(9) CF card
(11) Power switch
Description
Description
(2) System LED (SYS)
(4) Console port (CONSOLE)
(6) USB interface 0
(8) CF card LED
(10) Power socket
1-6
