H3C MSR 30-20 ROUTER Installation Manual page 55

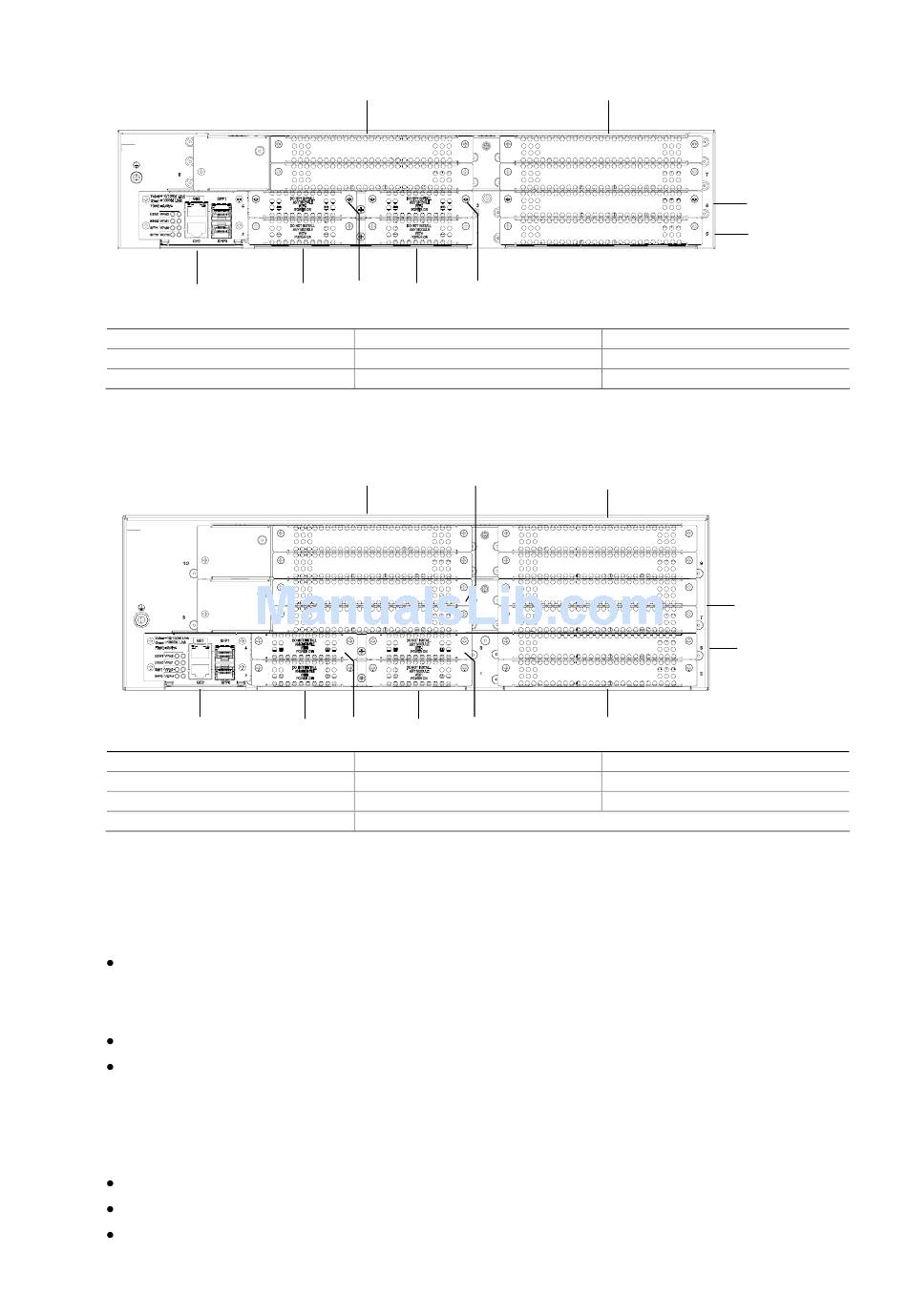

Figure 4-8 Slot arrangement on the MSR 30-40
(1)
(1) Slot 0
(4) Slot 3
(7) Slot 6
Figure 4-9 Slot arrangement on the MSR 30-60
(1)
(1) Slot 0
(4) Slot 3
(7) Slot 6
(10) Slot 9
Interface numbering
The MSR 30 Series Router interface adopts "two dimension" numbering rules, shown in the following:
The interfaces are represented by interface-type X/Y, where interface-type can be serial,
asynchronous, ethernet or ATM, and so on; X specifies the slot number; Y specifies the interface
number.
Different interfaces on an interface module share the same slot number X.
For every interface, Y starts from 0 and indicates the interface sequence on the interface module,
from left to right.
If you install a MIM-1FE and an MIM-2FE respectively in slot 5 and slot 6 on the MSR 30-20, the
Ethernet interfaces are numbered as follows:
Fixed Gigabit Ethernet interfaces are Gigabit Ethernet 0/0 and Gigabit Ethernet 0/1;
The Ethernet interface on the FIC-1FE is Ethernet 5/0;
The Ethernet interfaces on FIC-2FE are Ethernet 6/0 and Ethernet 6/1.
