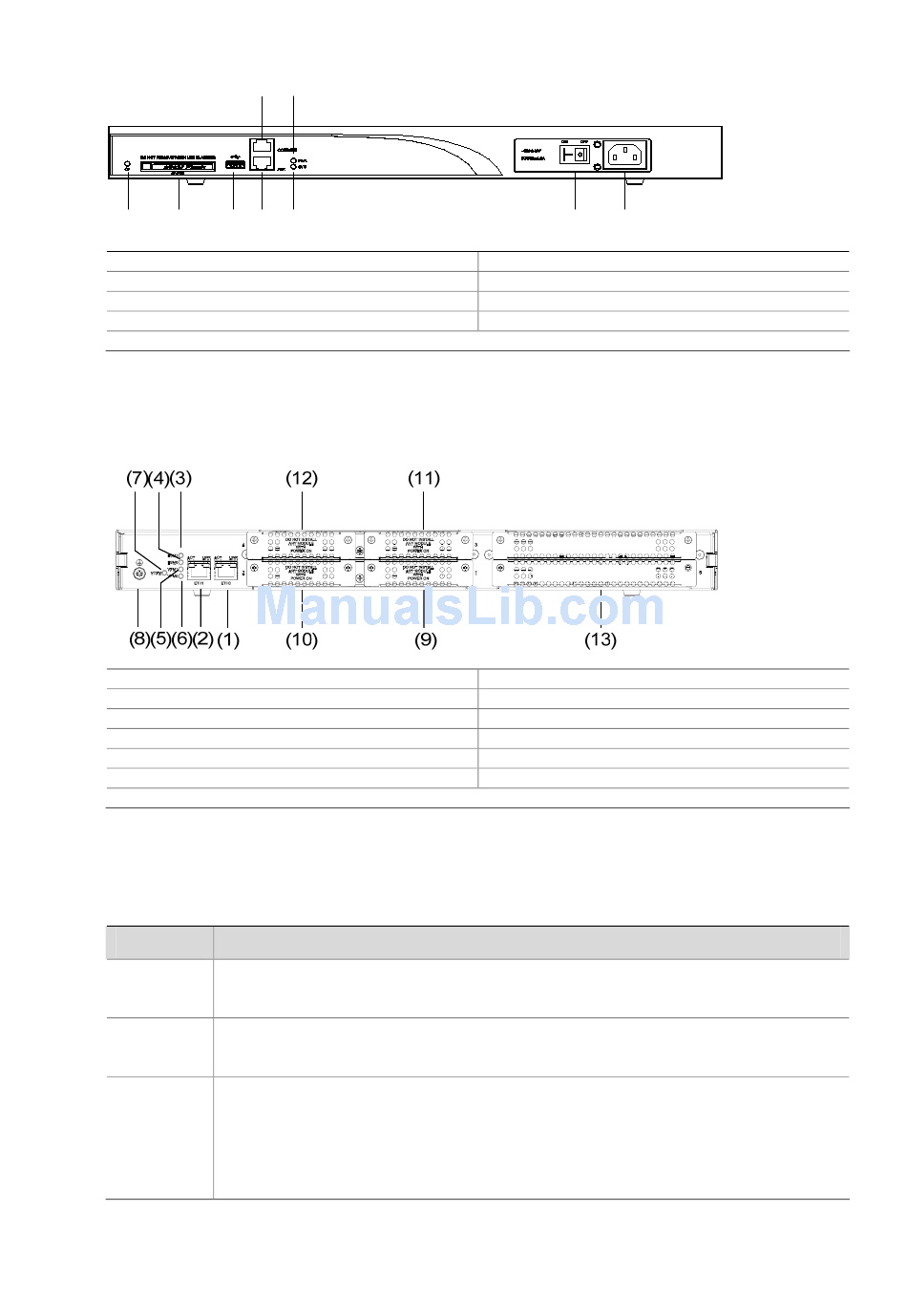

Figure 1-3 Front view of MSR 30-16
(3)
(7) (6) (5) (4)
(1) Power LED (POWER)
(3) Console port (CONSOLE)
(5) USB interface
(7) CF card LED
(9) Power switch
2) Rear view
Figure 1-4 Rear view of MSR 30-16
(1) FE interface 0
(3) ESM1 LED
(5) VPM1 LED
(7) VCPM LED
(9) SIC slot 1
(11) SIC slot 3
(13) MIM slot 5
Panel LEDs
Table 1-7 Front panel LEDs description of MSR 30-16 router
LED
ON means: the system provides power for cards normally.
PWR
OFF means the system does not supply power for cards.
Blinking means the system is operating normally.
SYS
Steady ON or steady OFF means the system does not operate normally.
OFF means the USB interface has not been connected to a host.
Steady green means the USB interface is connected to a host and the host can be
USB0 removed.
Blinking green means data is being transferred to/from the host and the host cannot
be removed now.
(1)
(2)
1-5
(9) (8)
(2) System LED (SYSTEM)
(4) Auxiliary port (AUX)
(6) CF card
(8) Power socket
(2) FE interface 1
(4) ESM0 LED
(6) VPM0 LED
(8) Grounding terminal
(10) SIC slot 2
(12) SIC slot 4
Description
