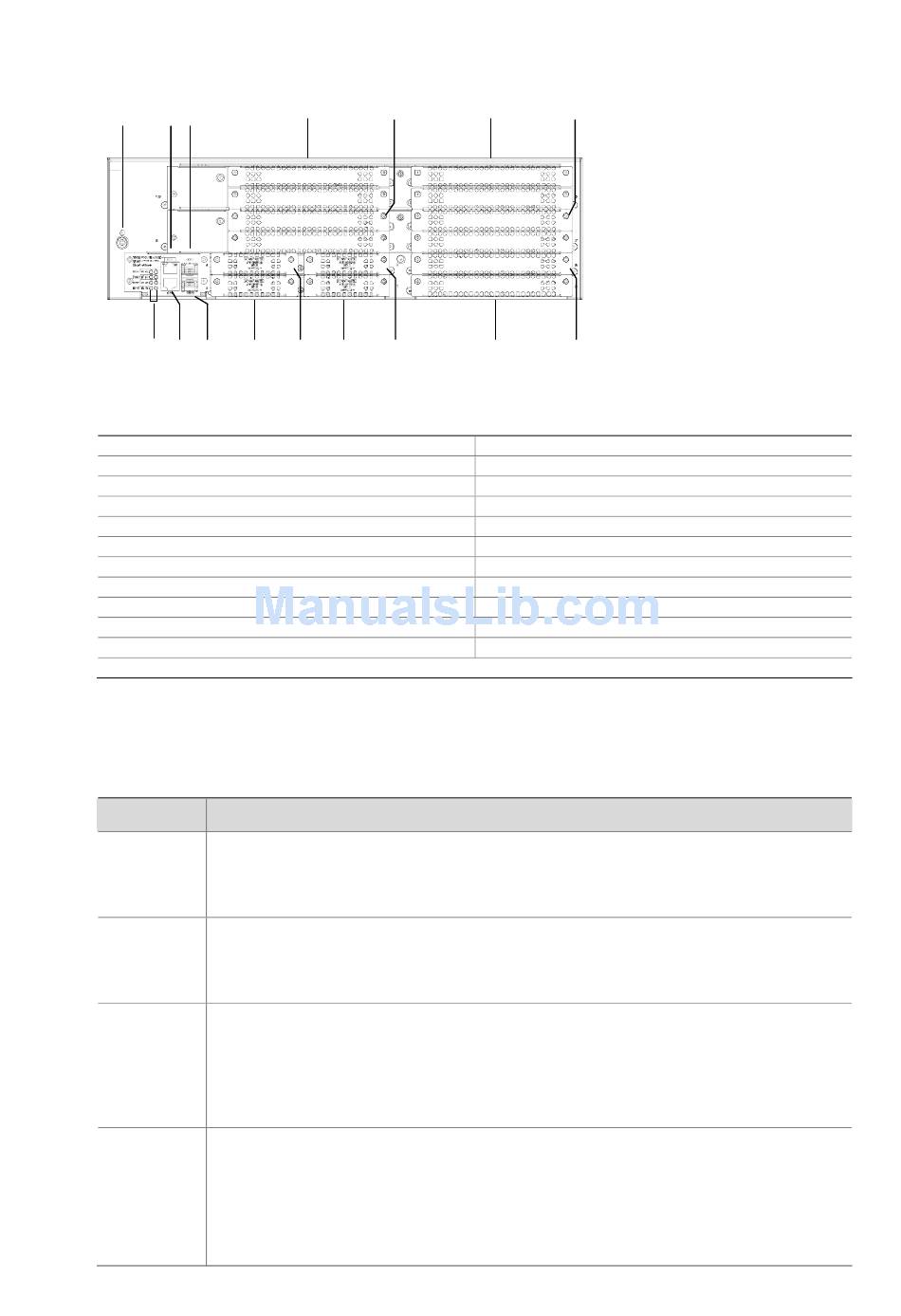

2) Rear view
Figure 1-10 Rear view of MSR 30-60
(23) (10)(12)
(4) (8) (9) (11)
(14)
(3) (7)
(2) (6)
(1) (5)
(1) VCPM LED
(3) VPM1 LED
(5) SFP0 LED
(7) ESM0 LED
(9) GE0 port
(11) SFP0 port
(13) SIC slot 1
(15) SIC slot 3
(17) MIM slot 5
(19) MIM slot 7
(21) MIM slot 9
(23) Grounding terminal
Panel LEDs
Table 1-13 Front panel LEDs description of MSR 30-60 router
LED
Power LED:
PWR ON means the system provides power for cards normally.
OFF means the system does not supply power for cards.
Hardware system operation LED:
SYS Blinking means the system is operating normally.
Steady ON or steady OFF means the system does not operate normally.
OFF means the USB interface has not been connected to a host.
Steady green means the USB interface has been connected to a host and the host
USB0 can be removed.
Blinking green means data is being transferred to/from the host and the host cannot
be removed now.
CF card LED:
Steady green means the CF card is in the slot and can be identified by the router.
CF Blinking green means the CF card is being accessed and cannot be removed.
Steady yellow means the CF card is in the slot but cannot be identified by the router.
OFF means no CF card is inserted or the CF card cannot be identified.
(22)
(20)
(16) (13)
(15)
1-11
(21)
(19)
(17) (18)
(2) VPM0 LED
(4) VPM LED
(6) SFP1 LED
(8) ESM1 LED
(10) GE1 port
(12) SFP1 port
(14) SIC slot 2
(16) SIC slot 4
(18) MIM slot 6
(20) MIM slot 8
(22) MIM slot 10
Description
