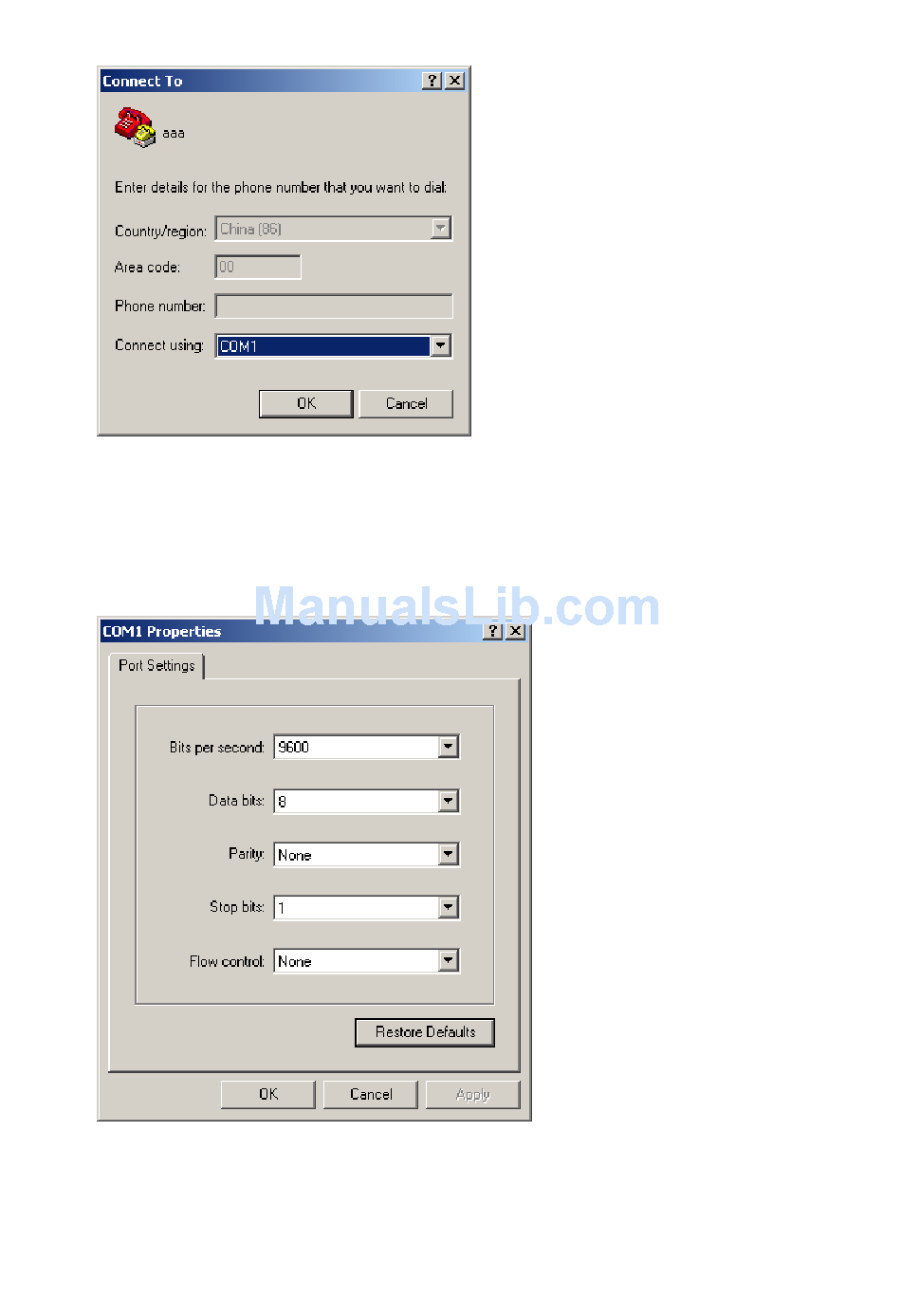

Figure 4-2 Local configuration connection interface
2)
Setting terminal parameters. As shown in the following table, in the properties dialog box of the
serial interface, set the baud rate to 9600, data bit to 8, no parity check, stop bit to 1, and flow
control to none. Then, click <OK> to return to the HyperTerminal window.
Figure 4-3 Setting serial interface parameters
3)
Set HyperTerminal properties. Select [File\Properties\Settings] in the HyperTerminal to enter the
properties setting window as shown in the following figure. Select the terminal emulation type to be
VT100 or auto detect, and click <OK> to return to the HyperTerminal window.
4-2
