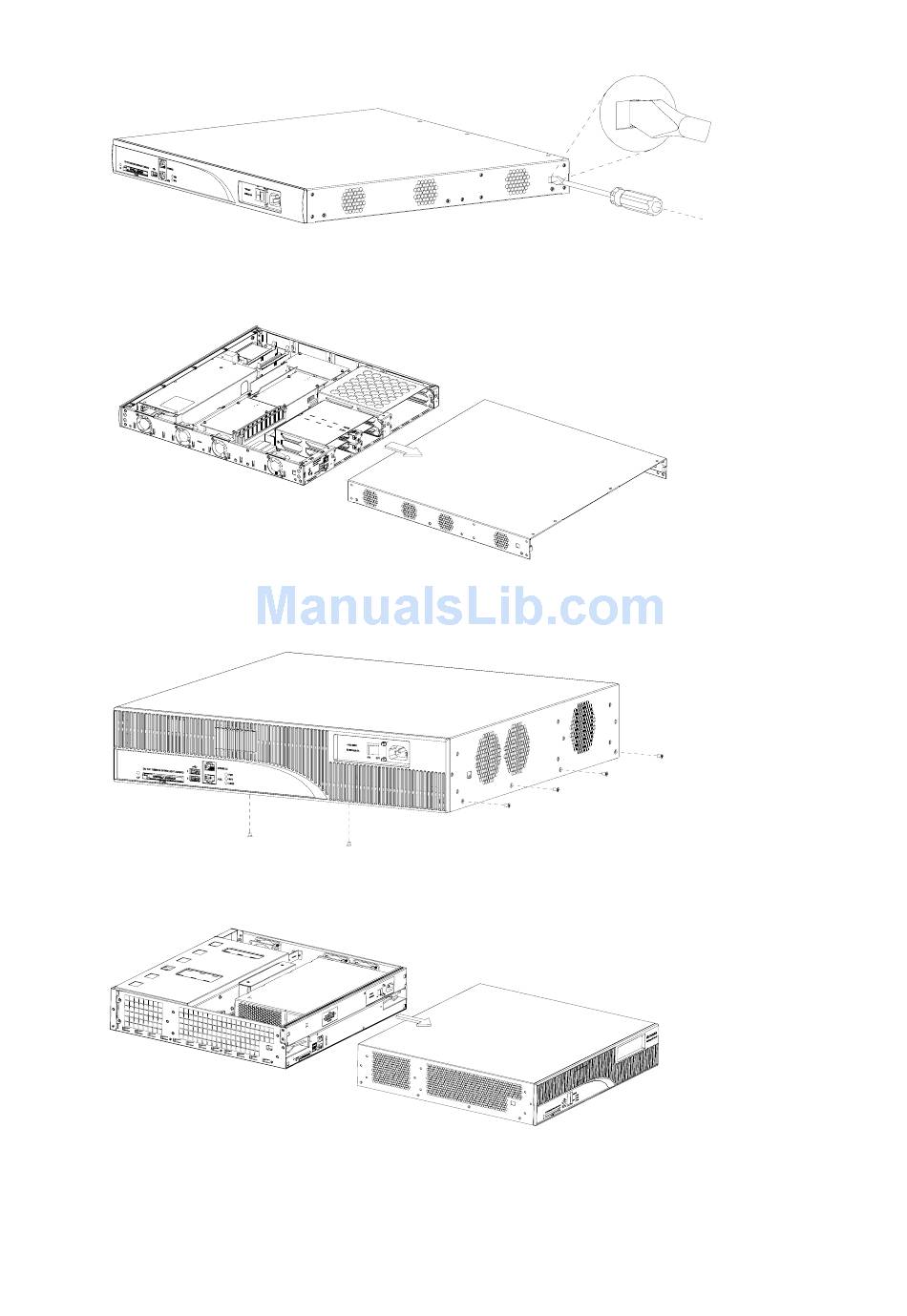

Figure 6-2 Rotate the screwdriver
Figure 6-3 Pull out the chassis cover until it is separated from the chassis
Figure 6-4 Remove and fasten the captive screws of the MSR 30-40/30-60
Figure 6-5 Open the chassis cover of the MSR 30-40/30-60
6-2
