After you correctly enter the username and password, the system prompts login success, and you can
complete maintenance of the router, for example, modifying transmission mode and local path, and
backing up files. In this example, the main.bin file on the router is backed up to the PC.
ftp> binary
200 Type set to I.
ftp> lcd c:\temp
Local directory now C:\temp.
ftp> get main.bin main.bin
200 Port command okay.
150 Opening BINARY mode data connection for main.bin.
226 Transfer complete.
ftp: 14323376 bytes received in 16.81Seconds 851.87Kbytes/sec.
Recover the backup file to the router command:
ftp> put main.bin main.bin
200 Port command okay.
150 Opening BINARY mode data connection for main.bin.
226 Transfer complete.
ftp: 14323376 bytes sent in 8.29Seconds 1727.37Kbytes/sec.
ftp> quit
221 Server closing.
Maintaining the router when it serves as the client
You can also maintain the router file system by building FTP server and making the router serve as the
client.
Step 1: Build maintenance environment as follows:

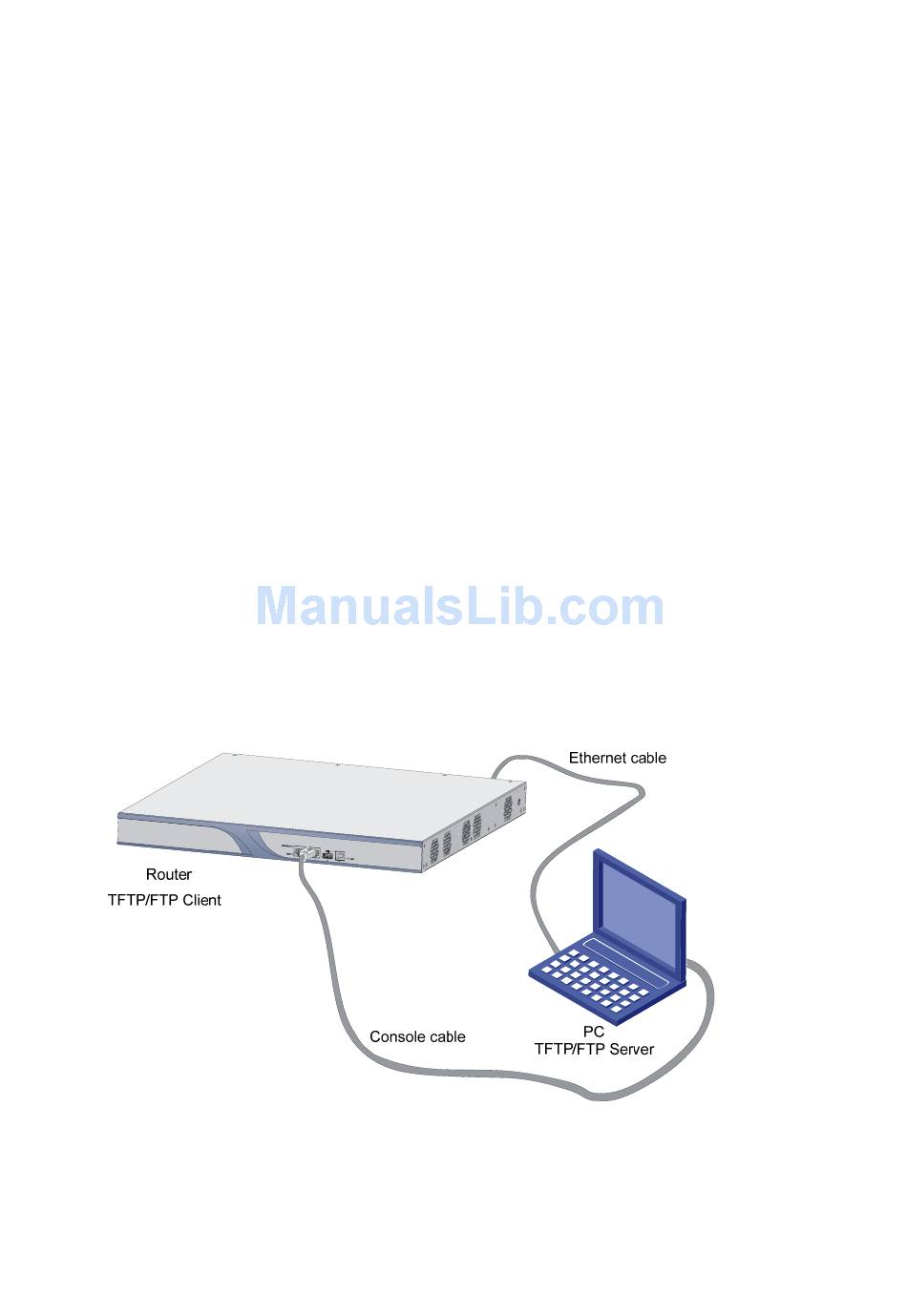

Figure 5-10 Router maintenance when it serves as the client
When the router serves as the client, you can run FTP server program on your PC as the FTP server,
and set the server path. Then, add user name and password for the router.
Configure the IP addresses of the two sides to be in the same network. In this section, the FTP server is
set to 192.168.0.1, and the Ethernet interface connected to it (Ethernet interface 0/0 in this example; so,
5-20
