Initial Operation
Number of Peaks
Define the number of peaks of the FFT signal used for evaluation in thickness measurement. The number of peaks
can be selected in the Settings > Data recording > Number of peaks.
This function is available for the IMS5200MP system: a maximum of 5 layers can be evaluated.
Make sure to count the peaks in the correct manner, see Chap. Measpeak Sorting.
The material selection for a thickness measurement starts with the thinnest layer (layer 1) independent of the physical
arrangement in the measuring object.

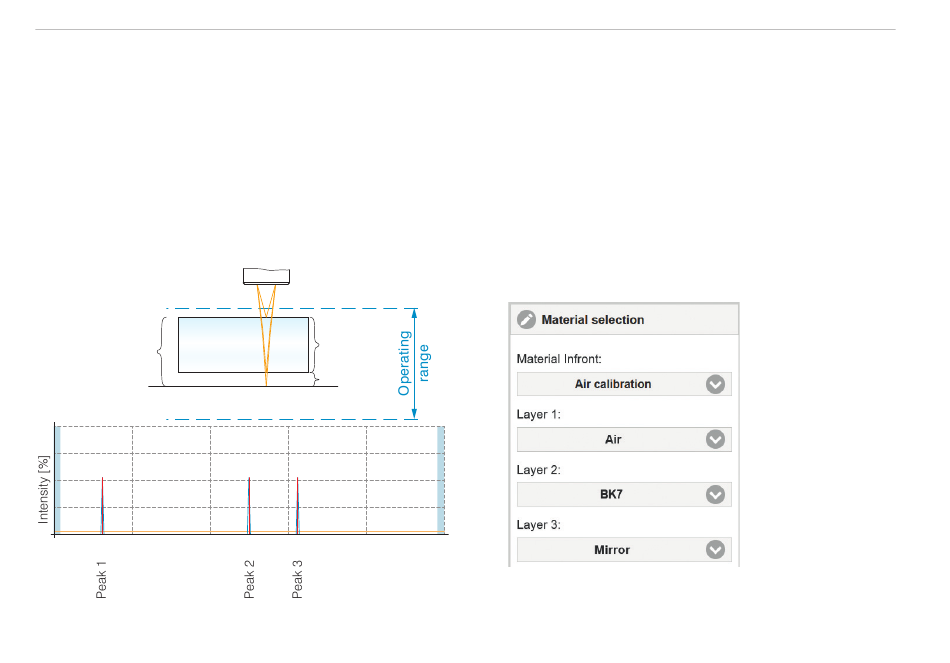

Example of a layer of glass and gap, measpeak sorting: First, corresponding material selection
IMP-TH
Glass
Peak 3
Gap
0 20 40
IMS5200-TH / IMS5200MP-TH
Peak 2
Peak 1
Range [%] 60 80 100
