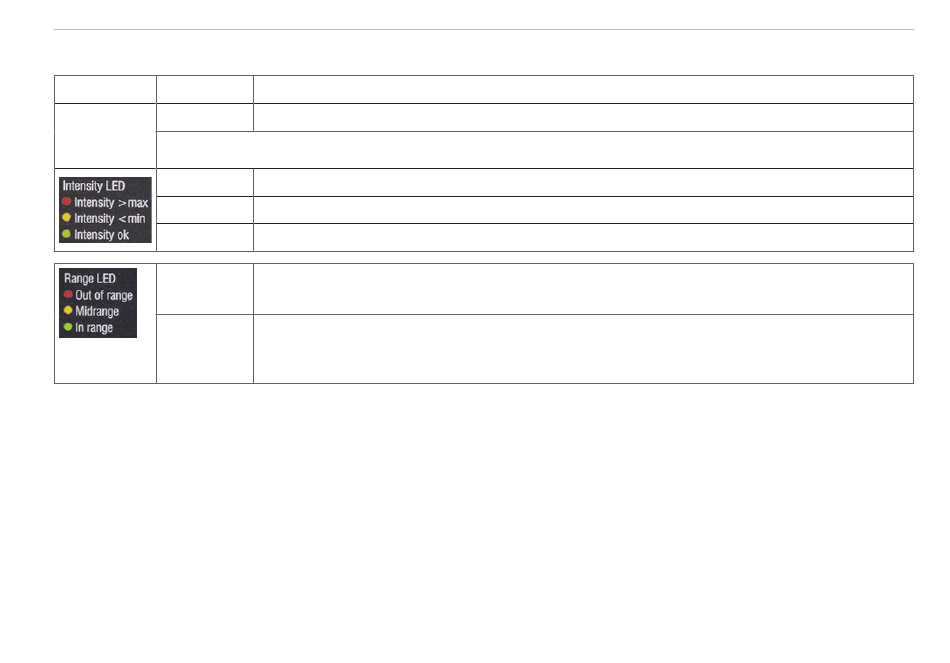

LEDs Controller
LEDs Controller
Power on Green
Off
Status
If EtherCAT is active, meaning of the LED is conform with the Ether-CAT guidelines.
Red
Yellow
Green
Red
Green
IMS5200-TH / IMS5200MP-TH
Supply voltage available
No error
Signal in saturation
Signal too low
Signal ok
No target object, or target object outside the operating range. The expected number of
peaks was not found or it was not possible to assign a thickness.
Target within operating range
The expected number of peaks was found. A valid thickness could be found for each
peak.
