Setup, Connection Options
Setup, Connection Options
Connect the components together and mount the
sensors into the clamps.
Patch cable 2x RJ45
Controller
Patch cable 2x RJ45
PS 2020
SC2471-x/RS422/OE
IF2001/USB

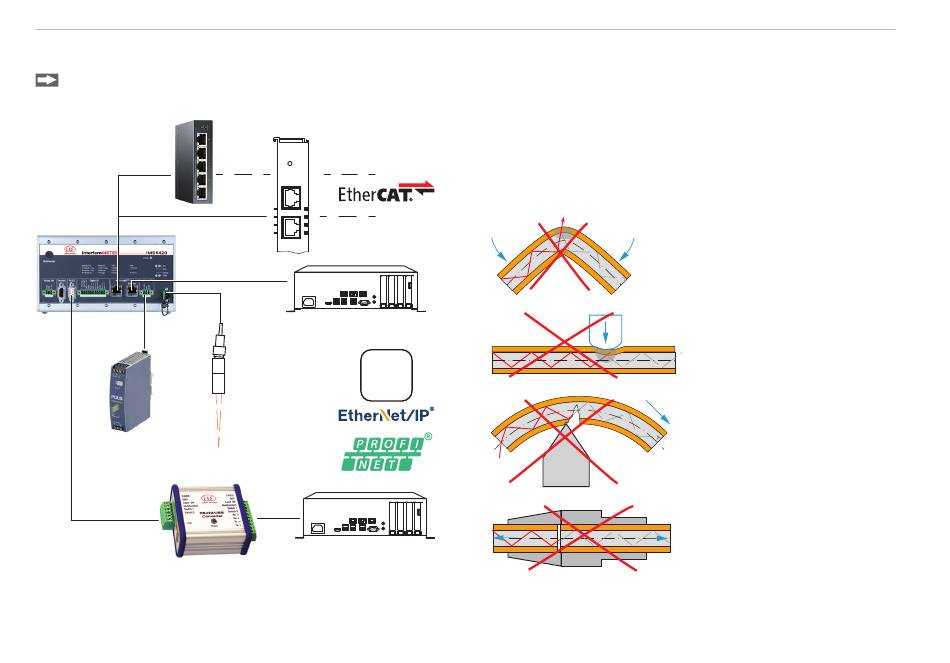

Connection examples on IMS5200, IMS5200MP
IMS5200-TH / IMS5200MP-TH
2-Port
Switch /
EtherCAT
Hub
Junction
Run
X1
X2
IPC
PLC
Sensor
USB
IPC
A more detailed description of the connection options is
available in the operating instructions.
Sensor Cable
Sensor and controller are connected through an
optical fiber.
- Do not shorten or extend the optical fiber.
- Do not pull or hold the sensor on the optical fiber.
Cleaning of the connectors requires the
corresponding know-how.
Do not kink the optical
fiber.
Do not crush the opti-
cal fiber, do not fasten
it using cable ties.
Please do not grind the
optical fiber over sharp
corners.
Do not pull the optical
fiber.
