ChargePoint Power Block Design Manual page 37

Express plus dc fast charging station

Advertisement

Power Link

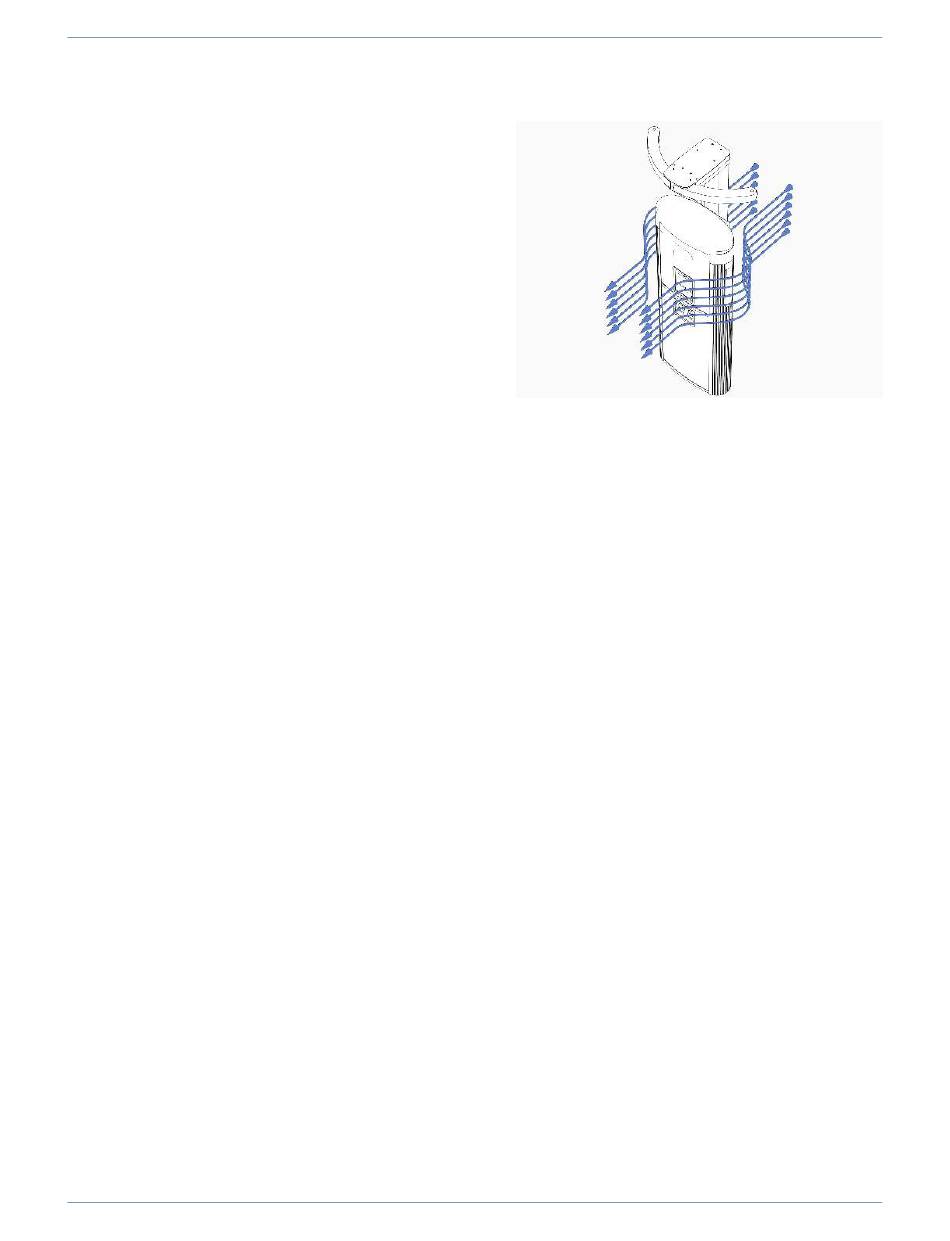

Ensure that any installation, especially an indoor
installation, has adequate airflow to dissipate heat at
maximum operation. The charging location must allow
fresh ambient airflow. Do not install a charging
component where it is exposed to air that is heated
above ambient temperatures. Restriction of airflow, or
temperatures outside the operating range, might result
in reduced maximum performance.
Note:
Power Link 2000s without liquid cooled cables
require 500 W (1,700 BTU/hr) of heat rejection. Power
Link 2000s with liquid cooled cables require 5.3 kW
(18,000 X BTU/hr).
Accessibility
Comply with regional accessibility laws, regulations and ordinances. The Power Link 2000 charging station
must not block ramps or pathways, and the height of the interactive display cannot exceed the maximum
height as dictated by local laws.
Signage
Refer to local and regional code to design the following elements for the site:
Any required re-striping of parking spaces
l
EV or Accessible EV signs
l
EV or Accessible EV paint markings on and around the parking spaces
l
Accessibility
32
