Clearances
Power Block

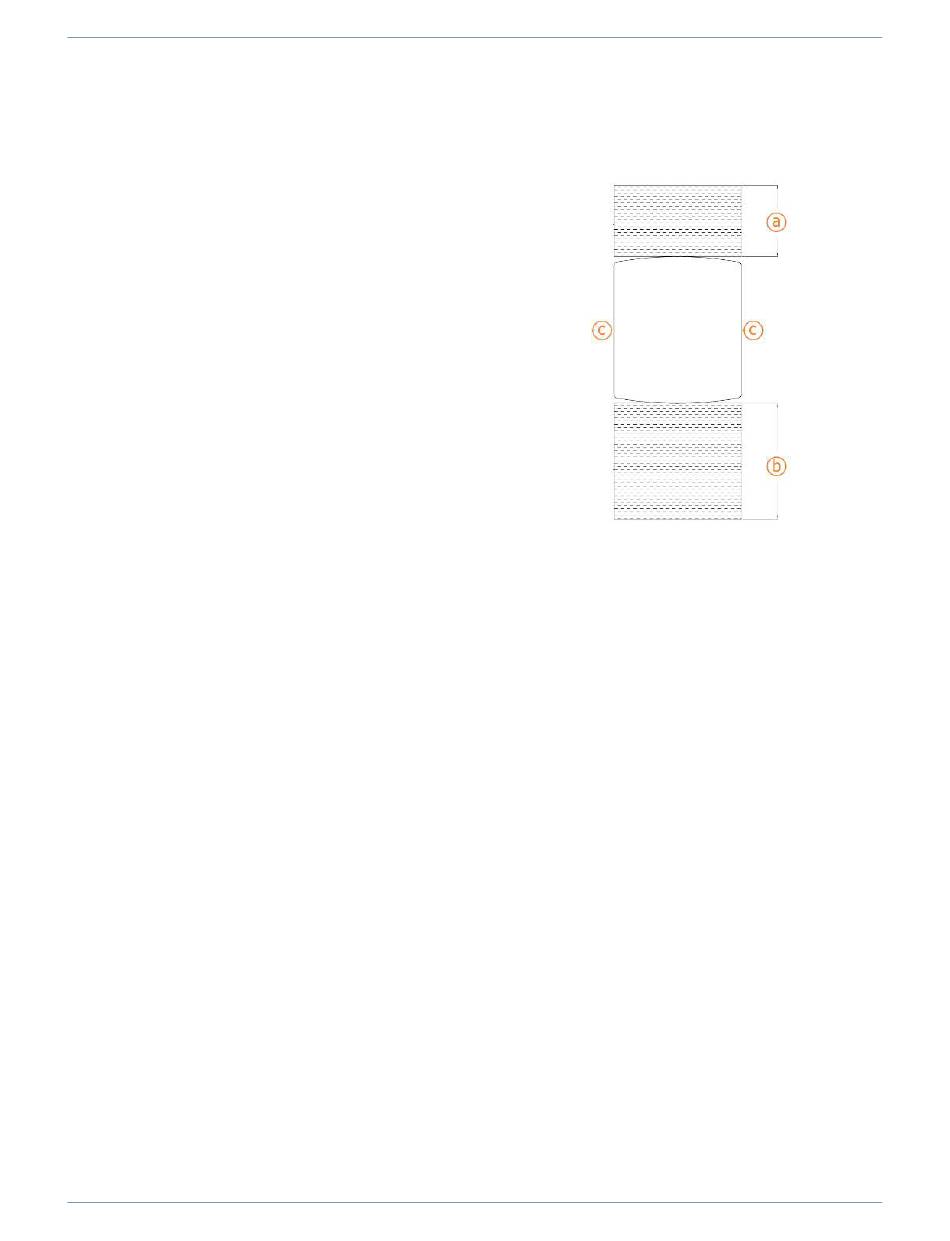

The Power Block requires minimum site and service
clearances as listed below.
a. Rear: 457 mm (18 in) required, 610 mm (24 in)
recommended
b. Front: 1000 mm (39.3 in)
c. Sides: 51 mm (2 in) (measured from the exterior of
each side cover panel)
Additionally, follow the clearance guidelines below:
Front and rear clearances must be at grade level
l
+/- 13 mm (0.5 in).
The interior of the Power Block is accessed from
l
both the front and rear cover panels, which lift off.
No separate door swing clearance is required.
Fencing, bollards or wheel stops must not encroach upon the clearances listed above, if present.
l
These barriers are not explicitly required by ChargePoint.
Power Blocks can be laid out side-by-side with minimal spacing for service and ventilation. If Power
l
Blocks are laid out side by side, wiring can enter from the rear or outside face, using either surface
entry or (recommended) bottom entry. When units are side by side, wiring for the row cannot pass
through one unit into another.
Note: A Power Block cannot be positioned more than 100 m (328 ft) from any of its associated
stations because of Ethernet communication restrictions.
