Civil and Mechanical Design
2

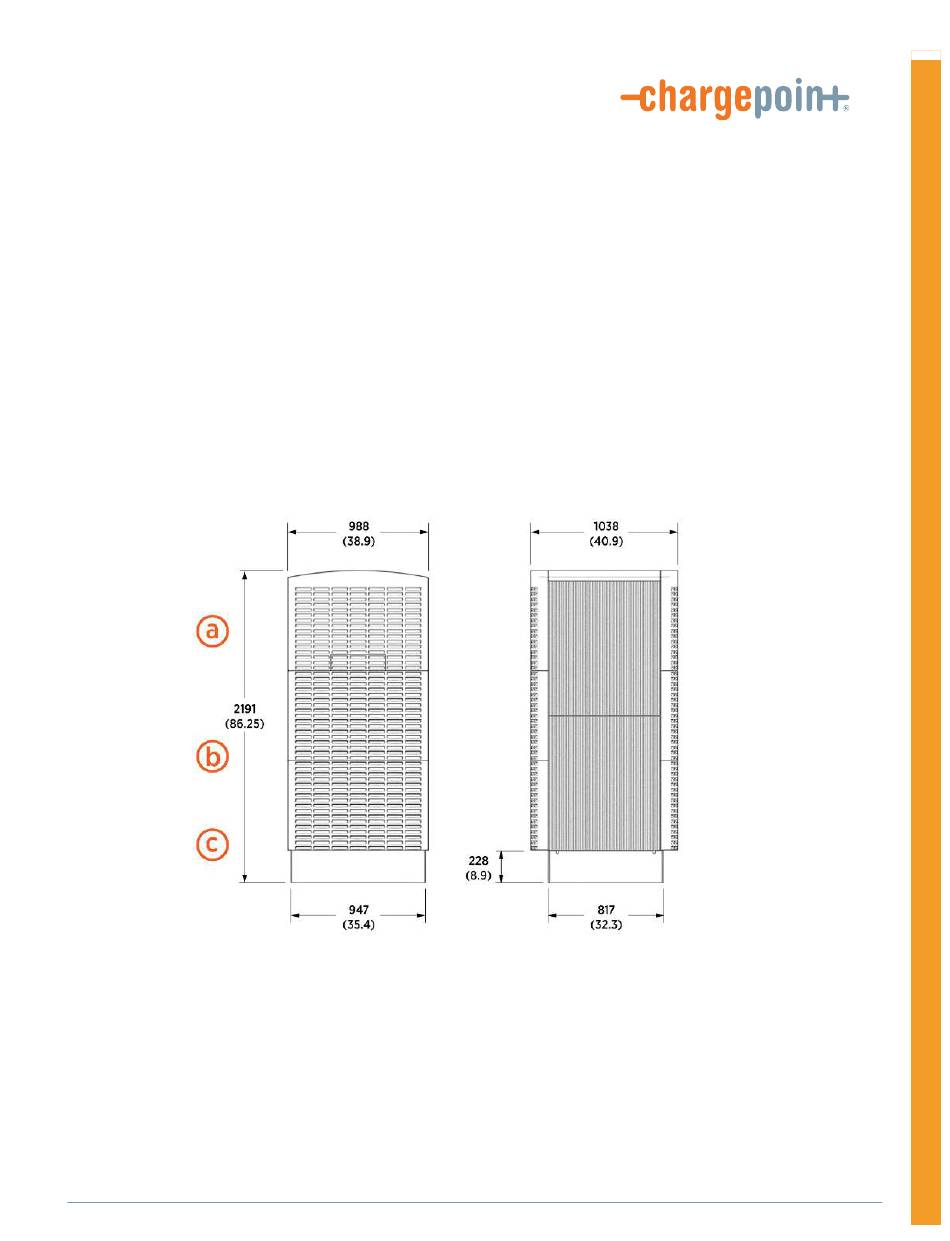

Component Dimensions
Power Block
Note: Images are not to scale. Measurements appear in metric units (mm), followed by imperial equivalents
(inches).
Each Power Block is made up of these components:
a. Top enclosure (wet box): Auxiliary power supply and temperature management components
b. Centre enclosure (dry box): A bay for up to five Power Modules and bus bars to land all input and
output cables
c. Pedestal: Secures the Power Block and provides access for either stub-up or surface mount
installations
A fully loaded Power Block weighs approximately 680 kg (1500 lbs). Each Power Module weighs
approximately 45 kg (98.5 lbs).
