ChargePoint Power Block Design Manual page 24

The concrete pad for the station must either be designed to be site-specific, or must meet the
specifications above. In some extreme conditions, a larger pad would be required. For sites with less
stringent seismic, soil or wind conditions, a smaller pad might be possible.
If the existing pad does not meet the specifications above, it must be inspected and approved by a
structural engineer for each component's dimensions and weight. If needed, give these structural design
specifications to the structural engineer for verification:

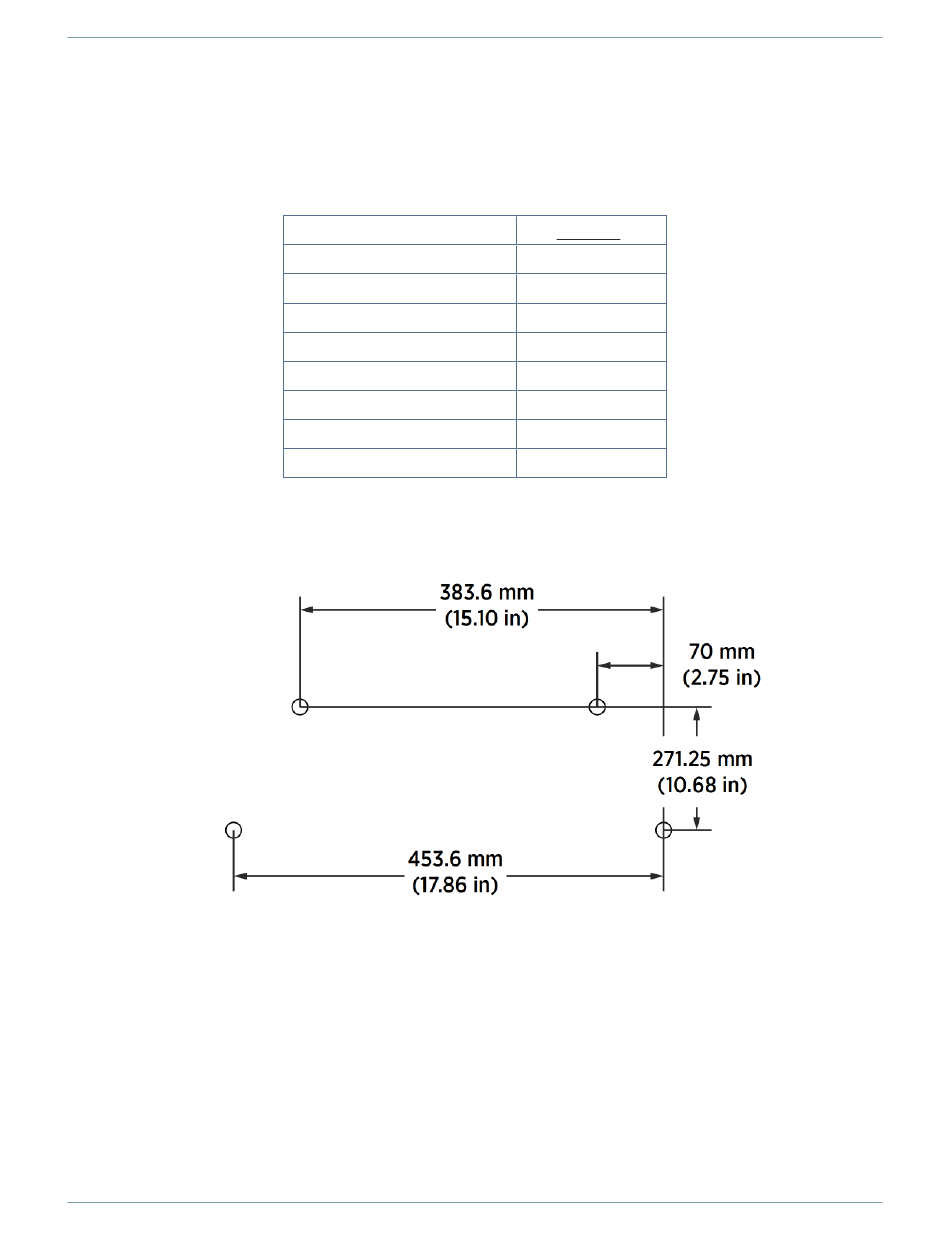

The Power Link 2000 pedestal anchor bolt pattern appears below.
The station mounting points depend on the method of installation:
Wall or other vertical mount
l
Pedestal mount, with underground anchors and conduit
l
Pedestal mount, with surface conduit entry and surface-drilled anchor bolts
l
19
Product Weight
Product Height from Ground 2191 mm (73 in)
Product Width
Product Frontal Area
CG Height
Number of Anchor Bolts
Bolt Pattern
Anchor Bolt Size
Anchor Bolt Embedment
Weights
See
720 mm (28.3 in)
Height * Width
1524 mm (60 in)
4
See image below.
M16
229 mm (9 in)
